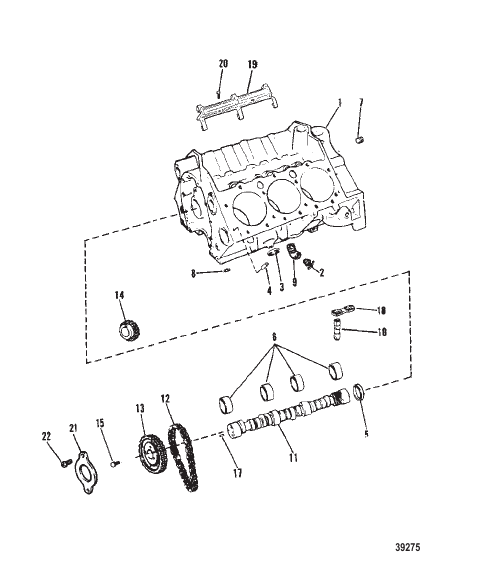

CYLINDER BLOCK AND CAMSHAFT
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 48556 |
ВТУЛКА Редуктор (от 0.250 до 0.125) (NEW DESIGN) BUSHING Reducer (.250 To .125) (NEW DESIGN) |
2 | |
| - | 32802 |
ПРОБКА Труба (0.125-27) (NEW DESIGN) PLUG Pipe (.125-27) (NEW DESIGN) |
2 | superseded |
| - | 14149A1 |
СУДОВОЙ ЛОНГ-БЛОК ENGINE (Includes internal parts & cylinder heads, but does not include: a) Intake Manifold, b) Water Pump, c) Flywheel, & d) Harmonic Balancer.) MARINE LONG BLOCK ENGINE (Includes internal parts & cylinder heads, but does not include: a) Intake Manifold, b) Water Pump, c) Flywheel, & d) Harmonic Balancer.) |
1 | discontinued |
| - | 11977A92 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 9690 |
БЛОК ЦИЛИНДРА (Includes only standard pistons, piston rings, crankshaft bearins and camshaft bearing.) CYLINDER BLOCK (Includes only standard pistons, piston rings, crankshaft bearins and camshaft bearing.) |
1 | superseded |
| 10 | 17340 |
СЪЕМНИК LIFTER |
12 | superseded |
| 11 | 9691 |
РАСПРЕДЕЛИТЕЛЬНЫЙ ВАЛ CAMSHAFT |
1 | discontinued |
| 12 | 17161 |
ЦЕПЬ Распределение CHAIN Timing |
1 | superseded |
| 13 | 18708 |
ЗВЕЗДОЧКА CAMSHAFT SPROCKET CAMSHAFT |
1 | superseded |
| 14 | 17160 |
ЗВЕЗДОЧКА CRANKSHAFT SPROCKET CRANKSHAFT |
1 | superseded |
| 15 | 35339 |
ВИНТ (0.312-18 x 0.750) SCREW (.312-18 x .750) |
3 | superseded |
| 17 | 35312 |
ШТИФТ Штифт (1/4" в диаметре) PIN Dowel (1/4 In. Diameter) |
1 | superseded |
| 18 | 17341 |
НАПРАВЛЯЮЩАЯ Lifter GUIDE Lifter |
6 | superseded |
| 19 | 17342 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 2 | 16951A1 |
КРАН В СБОРЕ (OLD DESIGN) COCK ASSEMBLY (OLD DESIGN) |
2 | superseded |
| 20 | 34500 |
ВИНТ (0.312-18 x 0.625) SCREW (.312-18 x .625) |
2 | |
| 21 | 17348 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 22 | 17343 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | superseded |
| 3 | 34270 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА (1.625) Expansion EXPANSION PLUG (1.625) Expansion |
8 | |
| 3 | 816565 |
ПРОБКА Колпачок (0.468) PLUG Cup (.468) |
1 | |
| 4 | 35465 |
ШТИФТ Штифт (0.312) PIN Dowel (.312) |
4 | |
| 5 | 72640 |
ПРОБКА Expansion PLUG Expansion |
1 | |
| 6 | 801797 |
ПОДШИПНИК (SET) BEARING (SET) |
1 | superseded |
| 7 | 48340 |
ПРОБКА (0.250-18 x 0.41) PLUG (.250-18 x .41) |
5 | superseded |
| 8 | 42796 |
КЛАПАН Перепуск масляного фильтра VALVE Oil Filter Bypass |
1 | discontinued |
| 9 | 37682 |
ФИТИНГ Колено (45 градусов) FITTING Elbow (45 Degree) |
1 |
