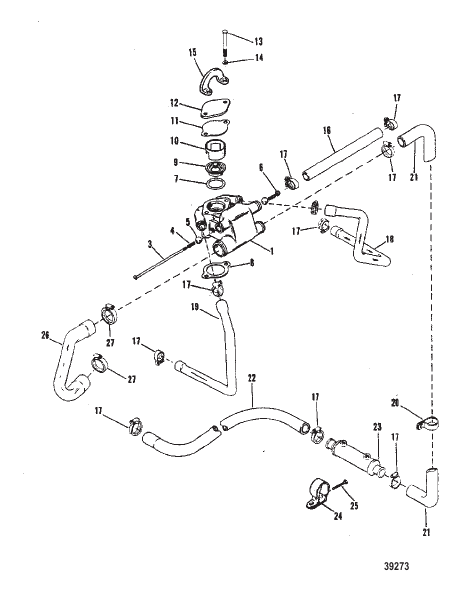

STANDARD COOLING SYSTEM NEW DESIGN
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 11977A92 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 16413A3 |
КОРПУС В СБОРЕ Термостат HOUSING ASSEMBLY Thermostat |
1 | discontinued |
| 10 | 17495 |
РУКАВ THERMOSTAT SLEEVE THERMOSTAT |
1 | superseded |
| 11 | 331792 |
ПРОКЛАДКА THERMOSTAT COVER GASKET THERMOSTAT COVER |
1 | superseded |
| 12 | 17494A1 |
КОМПЛЕКТ КРЫШЕК THERMOSTAT COVER KIT THERMOSTAT |
1 | |
| 13 | 60410 |
ВИНТ (0.375-16 x 4.250) THERMOSTAT HOUSING SCREW (.375-16 x 4.250) THERMOSTAT HOUSING |
2 | |
| 14 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) THERMOSTAT HOUSING SCREW LOCKWASHER (.375) THERMOSTAT HOUSING SCREW |
2 | |
| 15 | 12552 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 16 | 3322070 |
РУКАВ (Общая длина 48.00") TEE TO EXHAUST ELBOWS HOSE (48.00 Inches Bulk) TEE TO EXHAUST ELBOWS |
2 | superseded |
| 17 | 32780 |
ЗАЖИМ HOSE ATTACHING CLAMP HOSE ATTACHING |
8 | superseded |
| 18 | 16021 |
РУКАВ THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT) HOSE THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT) |
1 | superseded |
| 19 | 18810 |
РУКАВ THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD) HOSE THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD) |
1 | |
| 2 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
1 | superseded |
| 20 | 47715 |
ЗАЖИМ HOSE ATTACHING CLIP HOSE ATTACHING |
1 | discontinued |
| 21 | 16012 |
РУКАВ THERMOSTAT HOUSING TO FLUID COOLER HOSE THERMOSTAT HOUSING TO FLUID COOLER |
1 | |
| 22 | 41642A3 |
РУКАВ FLUID COOLER (3/4" I.D.) HOSE FLUID COOLER (3/4" I.D.) |
1 | |
| 23 | 99356A2 |
ОХЛАДИТЕЛЬ В СБОРЕ POWER STEERING FLUID COOLER ASSEMBLY POWER STEERING FLUID |
1 | superseded |
| 24 | 65970 |
КРОНШТЕЙН FLUID COOLER BRACKET FLUID COOLER |
1 | superseded |
| 25 | 41408 |
ВИНТ (№10-32 x 1.50) CLAMPING SCREW (#10-32 x 1.50) CLAMPING |
1 | |
| 26 | 87108 |
РУКАВ Литой THERMOSTAT HOUSING TO WATER PUMP HOSE Molded THERMOSTAT HOUSING TO WATER PUMP |
1 | superseded |
| 27 | 87268 |
ЗАЖИМ HOSE ATTACHING CLAMP HOSE ATTACHING |
2 | superseded |
| 3 | 17989 |
ВИНТ (№10-32 x 8.600) SCREW (#10-32 x 8.600) |
1 | |
| 4 | 75533 |
ПРУЖИНА SPRING |
2 | |
| 5 | 98475 |
ШАРИК Нейлон BALL Nylon |
2 | |
| 6 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
1 | superseded |
| 7 | 30224 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.859 x 0.139) O-RING (1.859 x .139) |
1 | superseded |
| 8 | 530451 |
ПРОКЛАДКА THERMOSTAT HOUSING GASKET THERMOSTAT HOUSING |
1 | |
| 9 | 59137 |
ТЕРМОСТАТ (140 градусов) (143 DEGREES) THERMOSTAT (140 Degrees) (143 DEGREES) |
1 | superseded |
