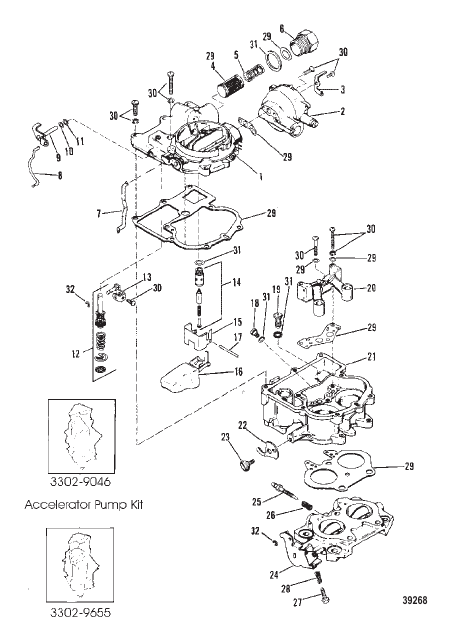

CARBURETOR (MERCARB)(175 - 4.3L)
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9565A1 |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | superseded |
| - | 9437 |
КОМПЛЕКТ ДЛЯ КАПИТАЛЬНОГО РЕМОНТА For Pump 9046 OVERHAUL KIT For Pump 9046 |
1 | superseded |
| - | 804844002 |
РЕМОНТНЫЙ КОМПЛЕКТ ДЛЯ КАРБЮРАТОРА For Pump 9655 CARBURETOR REPAIR KIT For Pump 9655 |
1 | |
| 1 | N.S.S. |
Не продается отдельно Air Horn Assembly Not Sold Separate Air Horn Assembly |
1 | |
| 10 | 9039 |
ШАЙБА PUMP LEVER WASHER PUMP LEVER |
1 | discontinued |
| 11 | 9040 |
ШАЙБА PUMP LEVER WASHER PUMP LEVER |
1 | superseded |
| 12 | 9046 |
КОМПЛЕКТ НАСОСА SEE NOTE PUMP KIT SEE NOTE |
1 | |
| 12 | 9655 |
КОМПЛЕКТ НАСОСА Педаль газа SEE NOTE PUMP KIT Accelerator SEE NOTE |
1 | superseded |
| 13 | 9036 |
ARM ACCELERATOR PUMP ARM ACCELERATOR PUMP |
1 | discontinued |
| 14 | 9407 |
КОМПЛЕКТ СЕДЕЛ Впуск SEAT KIT Inlet |
1 | |
| 15 | 9038 |
ПЛАСТИНА Отражательный щиток PLATE Baffle |
1 | superseded |
| 16 | 9031 |
ПОПЛАВОК FLOAT |
1 | |
| 17 | 9030 |
ШТИФТ FLOAT PIN FLOAT |
1 | superseded |
| 18 | 9058 |
ВОДОМЕТНЫЙ Main JET Main |
1 | |
| 19 | 9435 |
ВОДОМЕТНЫЙ Power JET Power |
1 | |
| 2 | N.S.S. |
Не продается отдельно Choke Housing Assembly Not Sold Separate Choke Housing Assembly |
1 | |
| 20 | 9436 |
ДИФФУЗОР VENTURI |
1 | discontinued |
| 21 | N.S.S. |
Не продается отдельно BODY, CARBURETOR Not Sold Separate BODY, CARBURETOR |
1 | |
| 22 | 9048 |
КУЛАЧОК FAST IDLE CAM FAST IDLE |
1 | |
| 23 | 9049 |
ВАЛ FAST IDLE CAM SHAFT FAST IDLE CAM |
1 | |
| 24 | N.S.S. |
Не продается отдельно Flange Assembly Not Sold Separate Flange Assembly |
1 | |
| 25 | 9052 |
ВИНТ IDLE ADJUSTING SCREW IDLE ADJUSTING |
1 | |
| 26 | 9053 |
ПРУЖИНА IDLE ADJUSTING SCREW SPRING IDLE ADJUSTING SCREW |
1 | discontinued |
| 27 | 9060 |
ВИНТ THROTTLE ADJUSTING SCREW THROTTLE ADJUSTING |
1 | discontinued |
| 28 | 9054 |
ПРУЖИНА THROTTLE ADJUSTING SCREW SPRING THROTTLE ADJUSTING SCREW |
1 | discontinued |
| 29 | 9061 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 3 | 9037 |
ARM Choke ARM Choke |
1 | discontinued |
| 30 | 9045 |
КОМПЛЕКТ ВИНТОВ SCREW KIT |
1 | superseded |
| 31 | 9044 |
НАБОР ДЛЯ УПАКОВКИ PACKING SET |
1 | |
| 32 | 9658 |
E-ОБРАЗНОЕ КОЛЬЦО E-RING |
2 | superseded |
| 4 | 9033 |
СЕТЧАТЫЙ ФИЛЬТР STRAINER |
1 | superseded |
| 5 | 9032 |
ПРУЖИНА FUEL STRAINER SPRING FUEL STRAINER |
1 | |
| 6 | 9034 |
СОЕДИНИТЕЛЬ INLET CONNECTOR INLET |
1 | superseded |
| 7 | 9042 |
ШТОК Choke ROD Choke |
1 | discontinued |
| 8 | 9041 |
ШТОК Насос ROD Pump |
1 | superseded |
| 9 | 9035 |
РЫЧАГ ACCELERATOR PUMP LEVER ACCELERATOR PUMP |
1 | superseded |
