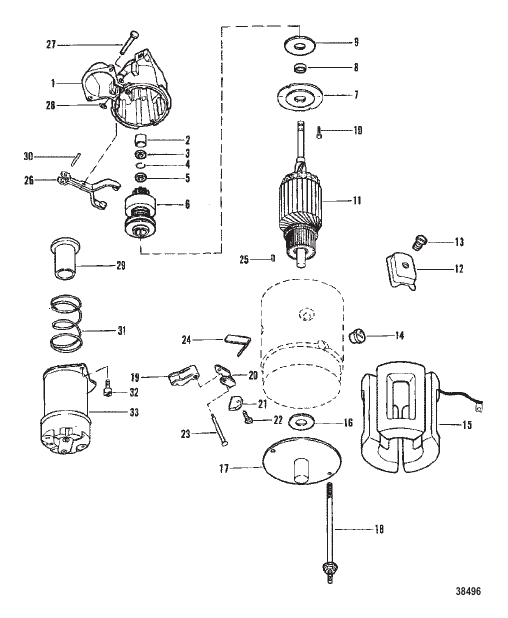

STARTER MOTOR
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 12177A2 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 1 | 75666 |
КОРПУС DRIVE END HOUSING DRIVE END |
1 | discontinued |
| 1 | 13754 |
КОРПУС DRIVE END HOUSING DRIVE END |
1 | discontinued |
| 10 | N.S.S. |
Не продается отдельно SCREW, BEARING PLATE (DELCO REMY #1972786) Not Sold Separate SCREW, BEARING PLATE (DELCO REMY #1972786) |
2 | |
| 10 | N.S.S. |
Не продается отдельно SCREW, BEARING PLATE (DELCO REMY #1984000) Not Sold Separate SCREW, BEARING PLATE (DELCO REMY #1984000) |
2 | |
| 11 | 71693 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 11 | 75665 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 12 | N.S.S. |
Не продается отдельно SHOE, POLE - FIELD COIL (DELCO REMY #1931129) Not Sold Separate SHOE, POLE - FIELD COIL (DELCO REMY #1931129) |
4 | |
| 12 | N.S.S. |
Не продается отдельно SHOE, POLE - FIELD COIL (DELCO REMY #810601) Not Sold Separate SHOE, POLE - FIELD COIL (DELCO REMY #810601) |
4 | |
| 13 | N.S.S. |
Не продается отдельно SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396) Not Sold Separate SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396) |
4 | |
| 14 | 79208 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО FIELD COIL - FIELD FRAME GROMMET FIELD COIL - FIELD FRAME |
1 | discontinued |
| 15 | 79212 |
КАТУШКА В СБОРЕ COIL ASSEMBLY |
1 | discontinued |
| 15 | 75664 |
КАТУШКА В СБОРЕ COIL ASSEMBLY |
1 | discontinued |
| 16 | 33258 |
ШАЙБА Кожа COMMUTATOR END FRAME WASHER Leather COMMUTATOR END FRAME |
1 | discontinued |
| 17 | 79211 |
РАМА COMMUTATOR END - LOWER FRAME COMMUTATOR END - LOWER |
1 | discontinued |
| 18 | N.S.S. |
Не продается отдельно BOLT, THRU (DELCO REMY #1941111) Not Sold Separate BOLT, THRU (DELCO REMY #1941111) |
1 | |
| 18 | N.S.S. |
Не продается отдельно BOLT, THRU (DELCO REMY #1939970) Not Sold Separate BOLT, THRU (DELCO REMY #1939970) |
1 | |
| 19 | N.S.S. |
Не продается отдельно HOLDER, INSULATED (DELCO REMY #800091) Not Sold Separate HOLDER, INSULATED (DELCO REMY #800091) |
2 | |
| 2 | 33369 |
ВТУЛКА DRIVE END HOUSING BUSHING DRIVE END HOUSING |
1 | discontinued |
| 20 | 33283 |
ДЕРЖАТЕЛЬ FIELD FRAME BRUSH GROUND HOLDER FIELD FRAME BRUSH GROUND |
2 | discontinued |
| 21 | 33270 |
ЩЕТКА FIELD FRAME BRUSH FIELD FRAME |
4 | |
| 22 | N.S.S. |
Не продается отдельно SCREW, BRUSH LEAD (DELCO REMY #1967747) Not Sold Separate SCREW, BRUSH LEAD (DELCO REMY #1967747) |
2 | |
| 22 | N.S.S. |
Не продается отдельно SCREW, BRUSH LEAD (DELCO REMY #443527) Not Sold Separate SCREW, BRUSH LEAD (DELCO REMY #443527) |
2 | |
| 23 | 33294 |
ОПОРА GROUND AND INSULATED HOLDERS SUPPORT GROUND AND INSULATED HOLDERS |
2 | discontinued |
| 24 | 33285 |
ПРУЖИНА FIELD FRAME BRUSH SPRING FIELD FRAME BRUSH |
4 | discontinued |
| 25 | N.S.S. |
Не продается отдельно PIN, DOWEL - FIELD FRAME (DELCO REMY #1985696) Not Sold Separate PIN, DOWEL - FIELD FRAME (DELCO REMY #1985696) |
1 | |
| 26 | 71698 |
РЫЧАГ SHIFT LEVER SHIFT |
1 | discontinued |
| 27 | N.S.S. |
Не продается отдельно STUD, SHIFT LEVER (DELCO REMY #1945804) Not Sold Separate STUD, SHIFT LEVER (DELCO REMY #1945804) |
1 | |
| 28 | N.S.S. |
Не продается отдельно RETAINING RING (DELCO REMY #11505767) Not Sold Separate RETAINING RING (DELCO REMY #11505767) |
1 | |
| 29 | 33317 |
ПЛУНЖЕР SHIFT LEVER PLUNGER SHIFT LEVER |
1 | discontinued |
| 3 | 33292 |
ВТУЛКА THRUST COLLAR THRUST |
1 | superseded |
| 30 | N.S.S. |
Не продается отдельно PIN, PLUNGER TO SHIFT LEVER (DELCO REMY #1987049) Not Sold Separate PIN, PLUNGER TO SHIFT LEVER (DELCO REMY #1987049) |
1 | |
| 31 | N.S.S. |
Не продается отдельно SPRING, PLUNGER RETURN (DELCO REMY #1978281) Not Sold Separate SPRING, PLUNGER RETURN (DELCO REMY #1978281) |
1 | |
| 32 | N.S.S. |
Не продается отдельно SCREW, SOLENOID SWITCH (DELCO REMY #9413260) Not Sold Separate SCREW, SOLENOID SWITCH (DELCO REMY #9413260) |
2 | |
| 33 | 13037 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ (4-1/4" LONG) SOLENOID SWITCH (4-1/4" LONG) |
1 | |
| 33 | 18080 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ (3.625) SOLENOID SWITCH (3.625) |
1 | discontinued |
| 4 | 33290 |
КОЛЬЦО Стопор PINION STOP COLLAR RING Retaining PINION STOP COLLAR |
1 | discontinued |
| 5 | 33291 |
ВТУЛКА PINION STOP COLLAR PINION STOP |
1 | discontinued |
| 6 | 79205 |
ПРИВОД В СБОРЕ CLUTCH DRIVE ASSEMBLY CLUTCH |
1 | superseded |
| 7 | 79396 |
ПЛАСТИНА BEARING PLATE BEARING |
1 | discontinued |
| 8 | 71694 |
ВТУЛКА BEARING PLATE BUSHING BEARING PLATE |
1 | discontinued |
| 9 | 68614 |
ШАЙБА BEARING PLATE WASHER BEARING PLATE |
1 | discontinued |
