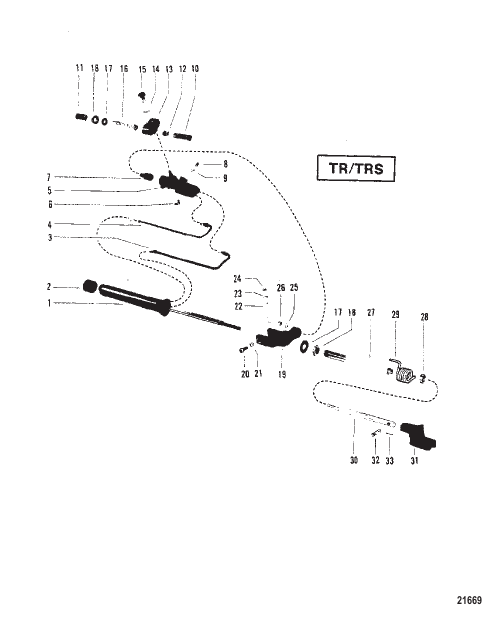

Power Steering Cylinder Assembly
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 55110A1 |
ЦИЛИНДР В СБОРЕ Рулевой механизм с усилителем CYLINDER ASSEMBLY Power Steering |
1 | discontinued |
| 1 | 57969A12 |
ЦИЛИНДР В СБОРЕ Усилитель CYLINDER ASSEMBLY Booster |
1 | discontinued |
| 10 | 60652 |
РУКАВ Adjusting SLEEVE Adjusting |
1 | discontinued |
| 11 | 64414 |
НАПРАВЛЯЮЩАЯ Cable Tube GUIDE Cable Tube |
1 | discontinued |
| 12 | 60773 |
РУКАВ Cable Tube SLEEVE Cable Tube |
1 | discontinued |
| 13 | 55110 |
ПЕРЕХОДНИК Cable Tube - Dual ADAPTER Cable Tube - Dual |
1 | superseded |
| 14 | ORDLOCAL |
ЗАКАЗЫВАЙТЕ ДЕТАЛЬ У МЕСТНЫХ ПОСТАВЩИКОВ Lockwasher (.750 Internal) ORDER PART LOCAL Lockwasher (.750 Internal) |
1 | |
| 15 | 55111 |
ГАЙКА Dual Adaptor To Power Steering Valve NUT Dual Adaptor To Power Steering Valve |
1 | discontinued |
| 16 | 55112 |
ТРУБА Cable Guide TUBE Cable Guide |
1 | discontinued |
| 17 | 37985 |
ШАЙБА WASHER |
2 | discontinued |
| 18 | 37984 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | superseded |
| 19 | 57286 |
КРОНШТЕЙН Mounting BRACKET Mounting |
1 | discontinued |
| 2 | 26059 |
ПРОБКА Booster Cylinder CAP Booster Cylinder |
1 | discontinued |
| 20 | 31832 |
БОЛТ (0.500-20 x 1.00) BOLT (.500-20 x 1.00) |
2 | discontinued |
| 21 | 31848 |
СТОПОРНАЯ ШАЙБА (0.500) LOCKWASHER (.500) |
2 | discontinued |
| 22 | 57968 |
ВИНТ (0.375-24 x 3.00) SCREW (.375-24 x 3.00) |
1 | discontinued |
| 23 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 24 | 46335 |
ГАЙКА (.375-24) NUT (.375-24) |
1 | |
| 25 | 20959 |
ШАЙБА WASHER |
1 | |
| 26 | 28040 |
ГАЙКА (.500-20) NUT (.500-20) |
1 | superseded |
| 27 | 57971 |
ТРУБА Mounting TUBE Mounting |
1 | discontinued |
| 28 | 55983 |
ГАЙКА (0.875-14) NUT (.875-14) |
1 | discontinued |
| 29 | 78498 |
ПРУЖИНА SPRING |
1 | discontinued |
| 3 | 57633 |
ТРУБА Extending TUBE Extending |
1 | discontinued |
| 30 | 57970T |
ШТОК Удлинитель ROD Extender |
1 | superseded |
| 31 | 87854T |
ПЕРЕХОДНИК Конец троса Right Hand ADAPTER Cable End Right Hand |
2 | discontinued |
| 32 | 52798 |
ШТИФТ Вилка PIN Clevis |
2 | |
| 33 | 46950 |
ШПЛИНТ COTTER PIN |
2 | |
| 4 | 57634 |
ТРУБА Retracting TUBE Retracting |
1 | discontinued |
| 5 | 816458A1 |
КЛАПАН В СБОРЕ VALVE ASSEMBLY |
1 | discontinued |
| 6 | 67305 |
ФИТИНГ Смазка FITTING Grease |
1 | discontinued |
| 7 | 55109T |
ШПИЛЬКА STUD |
1 | discontinued |
| 8 | 37612 |
ВИНТ (0.375-16 x 1.250) SCREW (.375-16 x 1.250) |
1 | |
| 9 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 |
