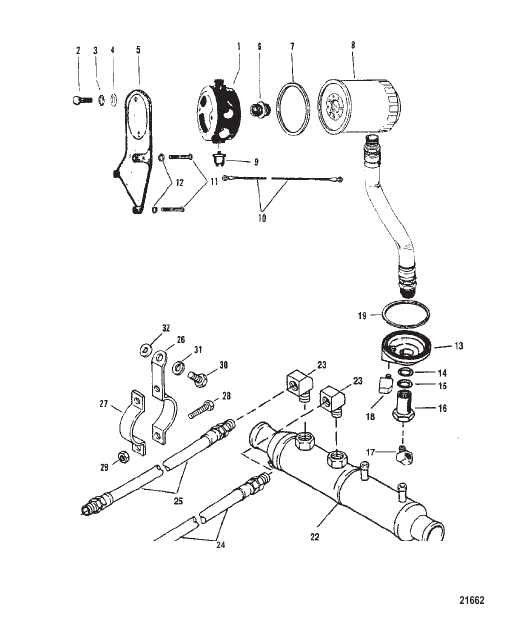

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 808730A92 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 48504A2 |
ПЕРЕХОДНИК Oil Filter ADAPTER Oil Filter |
1 | superseded |
| 10 | 79139A16 |
КАБЕЛЬ В СБОРЕ 36.00 Inches - Red CABLE ASSEMBLY 36.00 Inches - Red |
1 | superseded |
| 10 | 79139A21 |
КАБЕЛЬ В СБОРЕ 15.00 inches - Red CABLE ASSEMBLY 15.00 inches - Red |
1 | disc. |
| 11 | 47462 |
ВИНТ (0.437-14 x 1.250) SCREW (.437-14 x 1.250) |
2 | |
| 11 | 37612 |
ВИНТ (0.375-16 x 1.250) SCREW (.375-16 x 1.250) |
1 | |
| 12 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 12 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
2 | |
| 13 | 818400T |
Oil Filter ADAPTER Oil Filter |
1 | superseded |
| 14 | 90196 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.921 x 0.139) O-RING (.921 x .139) |
1 | superseded |
| 15 | 55822 |
ШАЙБА WASHER |
1 | |
| 16 | 821914 |
ФИТИНГ FITTING |
1 | disc. |
| 17 | 63825 |
КОЛЕНЧАТЫЙ 90 Degree ELBOW 90 Degree |
1 | |
| 18 | 48246 |
КОЛЕНЧАТЫЙ 90 Degree ELBOW 90 Degree |
1 | |
| 19 | 91892 |
Filter Adaptor Cover GASKET Filter Adaptor Cover |
1 | superseded |
| 2 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 21 | 9235751 |
ШЛАНГ В СБОРЕ (26.00") HOSE ASSEMBLY (26.00 Inches) |
1 | |
| 22 | 85152T |
ОХЛАДИТЕЛЬ Масло 425 Models With Power Steering COOLER Oil 425 Models With Power Steering |
1 | |
| 23 | 63825 |
КОЛЕНЧАТЫЙ 90 Degree With Power Steering ELBOW 90 Degree With Power Steering |
2 | |
| 24 | 9235751 |
ШЛАНГ В СБОРЕ (26.00") HOSE ASSEMBLY (26.00 Inches) |
1 | |
| 25 | 9235749 |
ШЛАНГ В СБОРЕ (24.00") HOSE ASSEMBLY (24.00 Inches) |
1 | disc. |
| 26 | 12820 |
КРОНШТЕЙН Long BRACKET Long |
2 | superseded |
| 27 | 56328A1 |
КРОНШТЕЙН Short BRACKET Short |
2 | |
| 28 | 60300 |
ВИНТ (0.250-28 x 0.750) SCREW (.250-28 x .750) |
4 | |
| 29 | 30506 |
ГАЙКА (0.250-28) NUT (.250-28) |
4 | |
| 3 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 30 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 31 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 32 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
2 | |
| 4 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
2 | |
| 5 | 63880T |
КРОНШТЕЙН Oil Filter BRACKET Oil Filter |
1 | disc. |
| 6 | 805632 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 7 | 91892 |
Adapter Cover To Oil Filter GASKET Adapter Cover To Oil Filter |
1 | superseded |
| 8 | 16595 |
ФИЛЬТР Масло FILTER Oil |
1 | superseded |
| 9 | 94009 |
ПЕРЕКЛЮЧАТЕЛЬ Choke Pressure SWITCH Choke Pressure |
1 | disc. |
