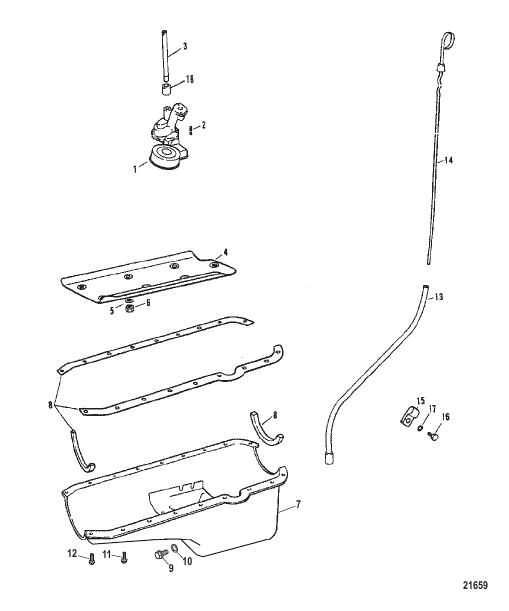

Oil Pan And Oil Pump (Serial # 0A398941 Thru 0D725499)
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 13218A1 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 808698A1 |
НАСОС В СБОРЕ Oil PUMP ASSEMBLY Oil |
1 | superseded |
| 10 | 49955 |
ПРОКЛАДКА Drain GASKET Drain |
1 | superseded |
| 11 | 34500 |
ВИНТ (0.312-18 x 0.625) SCREW (.312-18 x .625) |
20 | |
| 12 | 72607 |
ВИНТ (0.250-20 x 0.375) SCREW (.250-20 x .375) |
2 | superseded |
| 13 | 68035 |
ТРУБА TUBE |
1 | discontinued |
| 14 | 74054 |
ЩУП Уровень масла DIPSTICK Oil Level |
1 | discontinued |
| 15 | 71982 |
ЗАЖИМ CLIP |
1 | discontinued |
| 16 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 17 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 18 | 52193 |
РУКАВ Oil Pump Shaft SLEEVE Oil Pump Shaft |
1 | discontinued |
| 1A | FI5000254 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 2 | 49108 |
ШПИЛЬКА Oil Pump To Cylinder Block STUD Oil Pump To Cylinder Block |
1 | superseded |
| 3 | 49149 |
ВАЛ Oil Pump To Distributor SHAFT Oil Pump To Distributor |
1 | superseded |
| 4 | 49198 |
ОТРАЖАТЕЛЬНЫЙ ЩИТОК BAFFLE |
1 | discontinued |
| 5 | 49112 |
ШАЙБА WASHER |
5 | discontinued |
| 6 | 37500 |
ГАЙКА (3/8-16) NUT (3/8-16) |
5 | |
| 7 | 13800 |
ПОДДОН В СБОРЕ Масло PAN ASSEMBLY Oil |
1 | discontinued |
| 8 | 52550 |
КОМПЛЕКТ ПРОКЛАДОК Oil Pan GASKET SET Oil Pan |
1 | |
| 9 | 49956 |
ВИНТ Слив SCREW Drain |
1 |
