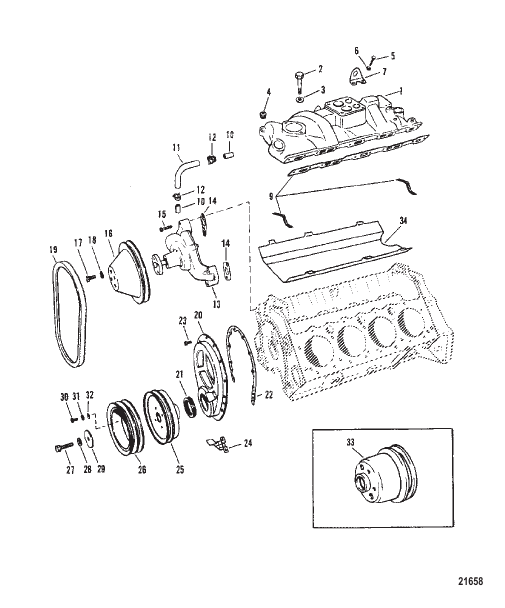

Intake Manifold And Front Cover

Parts (48)

#Part NumberDescriptionQtyStatus
1 14891 КОЛЛЕКТОР Впуск [0A398941] THRU [0C576119]
MANIFOLD Intake [0A398941] THRU [0C576119] 		1 superseded
1 814167 КОЛЛЕКТОР Впуск [0C576120] THRU [0D937011]
MANIFOLD Intake [0C576120] THRU [0D937011] 		1 disc.
10 66201 СОЕДИНИТЕЛЬ Intake Pump And Intake Manifold
CONNECTOR Intake Pump And Intake Manifold 		2 superseded
11 805987 РУКАВ ByPass - Water Pump To Intake Manifold
HOSE ByPass - Water Pump To Intake Manifold 		1
12 815504412 ЗАЖИМ Червячная передача
CLAMP Worm Gear 		2 superseded
13 811573 НАСОС В СБОРЕ Water
PUMP ASSEMBLY Water 		1 superseded
14 49110   ПРОКЛАДКА Крепление циркуляционного водяного насоса
  GASKET Circulating Water Pump Mount 		2 superseded
15 811574 ВИНТ (0.375-16 x 1.750)
SCREW (.375-16 x 1.750) 		4 superseded
16 52349 ШКИВ Water Pump [0A398941] THRU [0D725499]
PULLEY Water Pump [0A398941] THRU [0D725499] 		1 disc.
16 19692T ШКИВ (7" Диаметр) Water Pump [0D725500] THRU [0D937011]
PULLEY (7 In. Diameter) Water Pump [0D725500] THRU [0D937011] 		1 superseded
17 47277 ВИНТ (0.312-24 x 0.750)
SCREW (.312-24 x .750) 		4
18 39107 СТОПОРНАЯ ШАЙБА (0.312-24)
LOCKWASHER (.312-24) 		4
19 816034 КЛИНОВОЙ РЕМЕНЬ
V BELT 		1 superseded
2 NSS НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bolt (GM # 454467) For Intake Manifold 14891
NOT SOLD SEPARATE Bolt (GM # 454467) For Intake Manifold 14891 		5
2 98794 ВИНТ (0.375-16 x 1.00) For Intake Manifold 14891
SCREW (.375-16 x 1.00) For Intake Manifold 14891 		4 superseded
2 35787 ВИНТ (0.375-16 x 2.250) For Intake Manifold 14891
SCREW (.375-16 x 2.250) For Intake Manifold 14891 		3
2 37510 БОЛТ (1.5") For Intake Manifold 814167
BOLT (1.5 In.) For Intake Manifold 814167 		10 disc.
2 32132 ВИНТ (0.375-16 x 1.750) For Intake Manifold 814167
SCREW (.375-16 x 1.750) For Intake Manifold 814167 		2
2 358701 ВИНТ (0.375-16 x 2.00) For Intake Manifold 814167
SCREW (.375-16 x 2.00) For Intake Manifold 814167 		2
20 66215 КРЫШКА В СБОРЕ [0A398941] THRU [0D725499]
COVER ASSEMBLY [0A398941] THRU [0D725499] 		1 disc.
20 811570 КРЫШКА В СБОРЕ [0D725500] THRU [0D937011]
COVER ASSEMBLY [0D725500] THRU [0D937011] 		1 disc.
21 8219471   УПЛОТНЕНИЕ Oil - Crankcase Cover
  SEAL Oil - Crankcase Cover 		1
22 54529 ПРОКЛАДКА Распределительная крышка [0A398941] THRU [0D725499]
GASKET Timing Cover [0A398941] THRU [0D725499] 		1
22 811572 ПРОКЛАДКА Timing Cover [0D725500] THRU [0D937011]
GASKET Timing Cover [0D725500] THRU [0D937011] 		1 disc.
23 35366 ВИНТ
SCREW 		10 superseded
24 59966 СТРЕЛКА Timing - Left Hand Rotation
POINTER Timing - Left Hand Rotation 		1 disc.
25 726051 ДЕМПФЕР [0A398941] THRU [0D725499]
DAMPER [0A398941] THRU [0D725499] 		1 superseded
25 811556 ДЕМПФЕР [0D725500] THRU [0D937011]
DAMPER [0D725500] THRU [0D937011] 		1 superseded
26 52181 ШКИВ [0A398941] THRU [0D725499]
PULLEY [0A398941] THRU [0D725499] 		1 disc.
26 90081T ШКИВ [0D725500] THRU [0D937011]
PULLEY [0D725500] THRU [0D937011] 		1 disc.
27 14758 БОЛТ [0A398941] THRU [0D725499]
BOLT [0A398941] THRU [0D725499] 		1 disc.
27 811559 ВИНТ (0.500-20 x 2.500) [0D725500] THRU [0D937011]
SCREW (.500-20 x 2.500) [0D725500] THRU [0D937011] 		1 superseded
28 14759 СТОПОРНАЯ ШАЙБА
LOCKWASHER 		1 disc.
29 49103 ШАЙБА
WASHER 		1
3 20086 ШАЙБА (0.390 x 0.620 x 0.060) For Intake Manifold 14891
WASHER (.390 x .620 x .060) For Intake Manifold 14891 		4
3 20553 ШАЙБА (0.406 x 0.734 x 0.063) For Intake Manifold 14891
WASHER (.406 x .734 x .063) For Intake Manifold 14891 		3
30 86518 ВИНТ (0.375-16 x 1.00)
SCREW (.375-16 x 1.00) 		3
31 35048 СТОПОРНАЯ ШАЙБА (0.375)
LOCKWASHER (.375) 		3
32 20553 ШАЙБА (0.406 x 0.734 x 0.063)
WASHER (.406 x .734 x .063) 		3
33 77244A1 ШКИВ With Power Steering
PULLEY With Power Steering 		1 superseded
34 816073 ЭКРАН Маслозаборник Oil Intake - 425 Models [0C576120] THRU [0D937011]
SHIELD Oil Intake Oil Intake - 425 Models [0C576120] THRU [0D937011] 		1 superseded
4 32804 ПРОБКА (0.500-14) For Intake Manifold 14891
PLUG (.500-14) For Intake Manifold 14891 		3
4 64422 ВИНТ (0.312-18 x 0.440) For Intake Manifold 814167
SCREW (.312-18 x .440) For Intake Manifold 814167 		4 disc.
5 34354 ВИНТ (0.375-16 x 1.50)
SCREW (.375-16 x 1.50) 		2
6 35048 СТОПОРНАЯ ШАЙБА (0.375)
LOCKWASHER (.375) 		4
7 64628 ПОДЪЕМНАЯ СКОБА [0A398941] THRU [0D725499]
LIFTING EYE [0A398941] THRU [0D725499] 		2
7 646281 ПОДЪЕМНАЯ СКОБА [0D725500] THRU [0D937011]
LIFTING EYE [0D725500] THRU [0D937011] 		2 superseded
9 812712 КОМПЛЕКТ ПРОКЛАДОК Intake Manifold
GASKET SET Intake Manifold 		1 superseded
