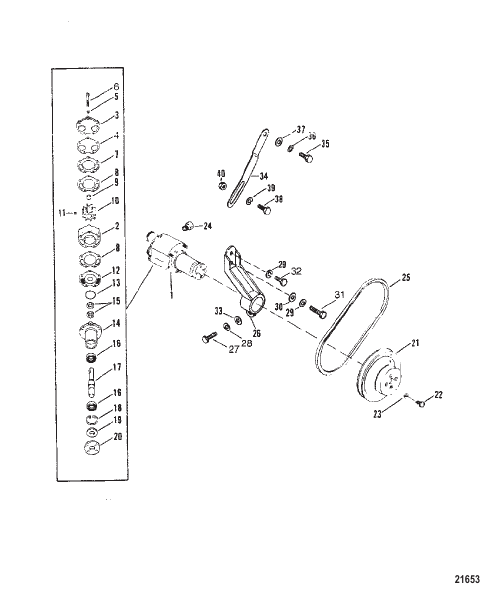

Seawater Pump Assembly (Serial # 0A398941 Thru 0D725499)
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 72774A32 |
НАСОС В СБОРЕ Забортная вода – полный PUMP ASSEMBLY Sea Water - Complete |
1 | |
| 10 | 593621 |
КРЫЛЬЧАТКА Use Without Key IMPELLER Use Without Key |
1 | superseded |
| 11 | 56662 |
КЛЮЧ Use Where Applicable KEY Use Where Applicable |
1 | superseded |
| 12 | 94576 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА Inner WEAR PLATE Inner |
1 | superseded |
| 13 | 94288 |
СЧЕТВЕРЕННОЕ КОЛЬЦО QUAD RING |
1 | superseded |
| 14 | 94913A1 |
КОРПУС В СБОРЕ Водяной насос Seawater Pump HOUSING ASSEMBLY Water Pump Seawater Pump |
1 | |
| 15 | 90562 |
УПЛОТНЕНИЕ (1.254 x 0.312) SEAL (1.254 x .312) |
2 | |
| 16 | 72961 |
ПОДШИПНИК Шарик BEARING Ball |
2 | |
| 17 | 59501A1 |
ВАЛ SHAFT |
1 | |
| 18 | 23720 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 19 | 72785 |
УПЛОТНЕНИЕ Seawater Pump Shaft SEAL Seawater Pump Shaft |
1 | |
| 2 | 72774A40 |
КОРПУС В СБОРЕ Забортная вода – полный BODY ASSEMBLY Sea Water - Complete |
1 | discontinued |
| 20 | 47530 |
ВТУЛКА Seawater Pump Pulley HUB Seawater Pump Pulley |
1 | |
| 21 | 73798A1 |
ШКИВ Seawater Pump PULLEY Seawater Pump |
1 | discontinued |
| 22 | 47277 |
ВИНТ (0.312-24 x 0.750) SCREW (.312-24 x .750) |
4 | |
| 23 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) LOCKWASHER (.312-24) |
4 | |
| 24 | 32802 |
ПРОБКА Труба (0.125-27) For Seawater Pump Body PLUG Pipe (.125-27) For Seawater Pump Body |
1 | superseded |
| 25 | 74271T |
КЛИНОВОЙ РЕМЕНЬ (35.125") V BELT (35.125 In) |
1 | superseded |
| 26 | 47489A2 |
КРОНШТЕЙН В СБОРЕ Seawater Pump Mount BRACKET ASSEMBLY Seawater Pump Mount |
1 | discontinued |
| 27 | 34354 |
ВИНТ (0.375-16 x 1.50) SCREW (.375-16 x 1.50) |
1 | |
| 28 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 29 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
1 | |
| 3 | 87631A4 |
КОМПЛЕКТ КРЫШЕК Seawater Pump COVER KIT Seawater Pump |
1 | discontinued |
| 30 | 27025 |
ШАЙБА WASHER |
1 | |
| 31 | 47462 |
ВИНТ (0.437-14 x 1.250) SCREW (.437-14 x 1.250) |
1 | |
| 32 | 48948 |
ВИНТ (0.437-14 x 0.880) SCREW (.437-14 x .880) |
1 | discontinued |
| 33 | 29330 |
ШАЙБА For Slot WASHER For Slot |
1 | |
| 34 | 64177 |
СКОБА Seawater Pump BRACE Seawater Pump |
1 | discontinued |
| 35 | 47462 |
ВИНТ (0.437-14 x 1.250) SCREW (.437-14 x 1.250) |
1 | |
| 36 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
1 | |
| 37 | ORDLOCAL |
ЗАКАЗЫВАЙТЕ ДЕТАЛЬ У МЕСТНЫХ ПОСТАВЩИКОВ Washer (.470 x .922 x .065) ORDER PART LOCAL Washer (.470 x .922 x .065) |
1 | |
| 38 | 35786 |
ВИНТ (0.375-24 x 1.00) SCREW (.375-24 x 1.00) |
1 | |
| 39 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 4 | 8052151 |
ПРОКЛАДКА Cover To Outer Wear Plate GASKET Cover To Outer Wear Plate |
1 | |
| 40 | 46335 |
ГАЙКА (.375-24) NUT (.375-24) |
1 | |
| 5 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
5 | |
| 6 | 73275 |
ВИНТ (0.312-18 x 2.88) SCREW (.312-18 x 2.88) |
5 | |
| 6 | 99347 |
ВИНТ (0.312-18 x 3.75) SCREW (.312-18 x 3.75) |
3 | |
| 7 | 94916 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА WEAR PLATE |
1 | |
| 8 | 94914 |
ПРОКЛАДКА Body To Wear Plate GASKET Body To Wear Plate |
2 | |
| 9 | 59504 |
ПРОБКА Impeller PLUG Impeller |
1 |
