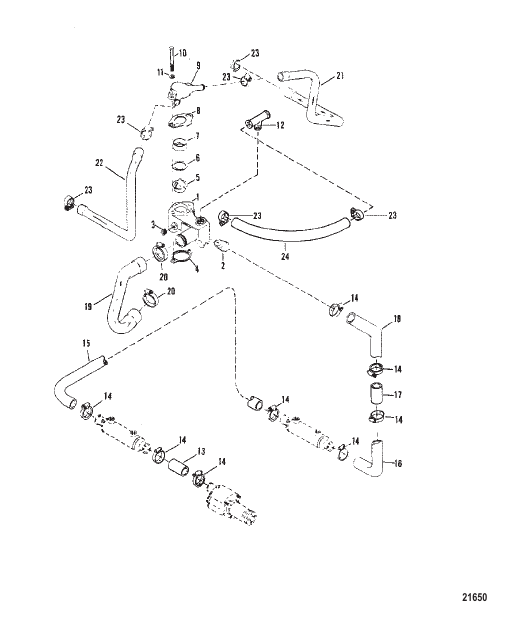

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 13218A1 |
КОМПЛЕКТ ПРОКЛАДОК [0A398941] THRU [0D725499] GASKET SET [0A398941] THRU [0D725499] |
1 | disc. |
| - | 808730A92 |
КОМПЛЕКТ ПРОКЛАДОК [0D725500] THRU [0D937011] GASKET SET [0D725500] THRU [0D937011] |
1 | superseded |
| 1 | 90736A18 |
КОРПУС В СБОРЕ Thermostat HOUSING ASSEMBLY Thermostat |
1 | |
| 10 | 60410 |
ВИНТ (0.375-16 x 4.250) SCREW (.375-16 x 4.250) |
2 | |
| 11 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
2 | |
| 12 | 98477A2 |
КЛАПАН В СБОРЕ VALVE ASSEMBLY |
1 | |
| 13 | 5346170 |
РУКАВ (Общая длина 48.00") Cut As Required - Water Pump To Oil Cooler HOSE (48.00 Inches Bulk) Cut As Required - Water Pump To Oil Cooler |
1 | superseded |
| 14 | 180766 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
8 | |
| 15 | 12817 |
РУКАВ Oil Cooler To Oil Cooler HOSE Oil Cooler To Oil Cooler |
1 | |
| 16 | 12818 |
РУКАВ Oil Cooler To Tube HOSE Oil Cooler To Tube |
1 | superseded |
| 17 | 13177 |
ТРУБА Non Power Steering Models TUBE Non Power Steering Models |
1 | |
| 18 | 64346 |
РУКАВ Литой Oil Cooler To Thermostat Housing HOSE Molded Oil Cooler To Thermostat Housing |
1 | superseded |
| 19 | 897181 |
РУКАВ Thermostat Housing To Water Pump HOSE Thermostat Housing To Water Pump |
1 | |
| 2 | 47511 |
РУКАВ Thermostat Housing SLEEVE Thermostat Housing |
1 | |
| 20 | 180768 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 21 | 89749 |
РУКАВ Thermostat Cover - Port HOSE Thermostat Cover - Port |
1 | |
| 22 | 897301 |
РУКАВ Thermostat Cover - Starboard HOSE Thermostat Cover - Starboard |
1 | |
| 23 | 180764 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
8 | |
| 24 | 3322070 |
РУКАВ (Общая длина 48.00") Cut As Required HOSE (48.00 Inches Bulk) Cut As Required |
2 | superseded |
| 25 | 12552 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 3 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
2 | superseded |
| 4 | 530451 |
ПРОКЛАДКА Thermostat Housing GASKET Thermostat Housing |
1 | |
| 5 | 8052731 |
ТЕРМОСТАТ (140 градусов) 140 Degrees THERMOSTAT (140 Degrees) 140 Degrees |
1 | superseded |
| 6 | 47510 |
ПРОКЛАДКА Thermostat GASKET Thermostat |
1 | |
| 7 | 47508 |
РУКАВ SLEEVE |
1 | superseded |
| 8 | 418122 |
ПРОКЛАДКА Thermostat Cover GASKET Thermostat Cover |
1 | |
| 9 | 47442A1 |
КРЫШКА Thermostat COVER Thermostat |
1 | superseded |
