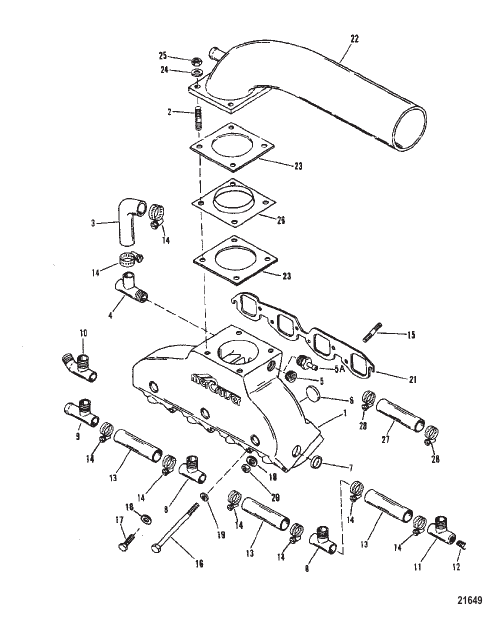

Exhaust Manifold / Elbow (425 GIL System)
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 808730A92 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 1 | 814901A5 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп – левый борт MANIFOLD ASSEMBLY Exhaust - Port |
1 | superseded |
| 1 | 814901A6 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп – правый борт MANIFOLD ASSEMBLY Exhaust - Starboard |
1 | superseded |
| 10 | 815210 |
ФИТИНГ Tee FITTING Tee |
1 | discontinued |
| 11 | 815209 |
ФИТИНГ Tee FITTING Tee |
2 | discontinued |
| 12 | 815211 |
ПРОБКА Pipe Drain PLUG Pipe Drain |
2 | discontinued |
| 13 | 815215 |
РУКАВ (3.500 Inches) HOSE (3.500 Inches) |
6 | discontinued |
| 14 | 815207 |
ЗАЖИМ CLAMP |
16 | discontinued |
| 15 | 49545 |
ШПИЛЬКА (3/8 x 1.75) (.375-16 x 1.750) STUD (3/8 x 1.75) (.375-16 x 1.750) |
4 | superseded |
| 15 | 821279 |
ШПИЛЬКА (.375-16 x 2.187) STUD (.375-16 x 2.187) |
4 | discontinued |
| 16 | 821107 |
ВИНТ (0.375-16 x 3.00) SCREW (.375-16 x 3.00) |
8 | |
| 16 | 815166 |
ВИНТ (.375-16 x 5.625) SCREW (.375-16 x 5.625) |
8 | discontinued |
| 17 | 815687 |
ВИНТ (0.375-16 x 1.250), нержавеющая сталь SCREW (.375-16 x 1.250) Stainless Steel |
4 | discontinued |
| 17 | 812567 |
ВИНТ (0.375-16 x 1.625) SCREW (.375-16 x 1.625) |
4 | |
| 18 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) WASHER (.390 x .750 x .093) |
8 | |
| 19 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel |
8 | |
| 2 | 815214 |
ШПИЛЬКА STUD |
8 | |
| 20 | 25269 |
ГАЙКА (.375-24) NUT (.375-24) |
4 | discontinued |
| 21 | 46820 |
ПРОКЛАДКА Exhaust Manifold To Head GASKET Exhaust Manifold To Head |
2 | |
| 22 | 818495A1 |
ВЫВОДЯЩАЯ ТРУБА ГЛУШИТЕЛЯ В СБОРЕ Выхлоп Standard TAILPIPE ASSEMBLY Exhaust Standard |
2 | discontinued |
| 22 | 818496A1 |
ВЫВОДЯЩАЯ ТРУБА ГЛУШИТЕЛЯ В СБОРЕ Выхлоп (3.00 Inches) TAILPIPE ASSEMBLY Exhaust (3.00 Inches) |
OPT | discontinued |
| 22 | 818497A1 |
ВЫВОДЯЩАЯ ТРУБА ГЛУШИТЕЛЯ В СБОРЕ Выхлоп (6.00 Inches) TAILPIPE ASSEMBLY Exhaust (6.00 Inches) |
OPT | discontinued |
| 23 | 848147 |
ПРОКЛАДКА Exhaust Elbow GASKET Exhaust Elbow |
2 | |
| 24 | 49112 |
ШАЙБА WASHER |
8 | discontinued |
| 25 | 68411 |
ГАЙКА (.375-16) NUT (.375-16) |
8 | superseded |
| 26 | 816037 |
ПЛАСТИНА Diffuser PLATE Diffuser |
2 | |
| 27 | 688941 |
РУКАВ (Общая длина 48.00") (6.00 Inches) Cut As Required HOSE (48.00 Inches Bulk) (6.00 Inches) Cut As Required |
1 | discontinued |
| 28 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) CLAMP Worm Gear (11-18 mm) |
2 | superseded |
| 3 | 8152121 |
РУКАВ Manifold To Exhaust Pipe HOSE Manifold To Exhaust Pipe |
2 | |
| 4 | 816035 |
ФИТИНГ FITTING |
2 | |
| 5 | 815203 |
ПРОБКА Pipe PLUG Pipe |
2 | discontinued |
| 5A | 818768 |
ФИТИНГ Straight FITTING Straight |
2 | discontinued |
| 6 | 815205 |
ПРОБКА АНТИФРИЗА (1.00 Inch) FREEZE PLUG (1.00 Inch) |
10 | discontinued |
| 7 | 815204 |
ПРОБКА АНТИФРИЗА (.750 Inch) FREEZE PLUG (.750 Inch) |
4 | discontinued |
| 8 | 815208 |
ФИТИНГ Tee FITTING Tee |
4 | discontinued |
| 9 | 815210 |
ФИТИНГ Tee FITTING Tee |
1 | discontinued |
