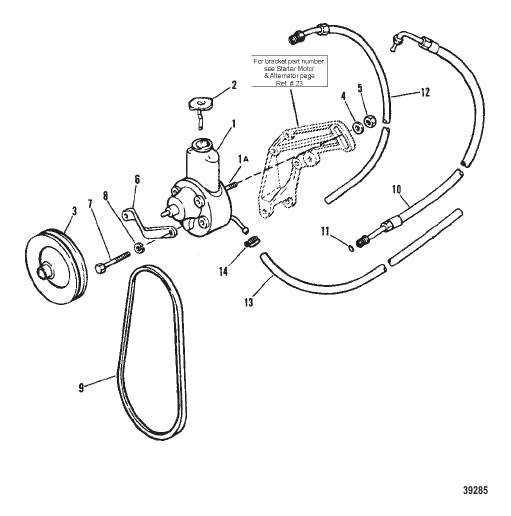

Power Steering Components
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 90496A5 |
НАСОС В СБОРЕ Power Steering PUMP ASSEMBLY Power Steering |
1 | superseded |
| 10 | 90494 |
РУКАВ Pressure (Fittings on Both Ends) HOSE Pressure (Fittings on Both Ends) |
1 | |
| 11 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) Pressure Hose End O-RING (.301 x .064) Pressure Hose End |
1 | |
| 12 | 9884339 |
ШЛАНГ В СБОРЕ (Общая длина 72.00") Return (Fittings on One End) HOSE ASSEMBLY (72.00 Inches Bulk) Return (Fittings on One End) |
1 | |
| 13 | 5251914 |
РУКАВ (Общая длина 53.00") Pump to Oil Cooler HOSE (53.00 Inches Bulk) Pump to Oil Cooler |
1 | superseded |
| 14 | 35830 |
ЗАЖИМ Hose Attaching CLAMP Hose Attaching |
3 | superseded |
| 1A | 41877 |
ШПИЛЬКА (M10) Power Steering Pump STUD (M10) Power Steering Pump |
1 | discontinued |
| 2 | 95805 |
ПРОБКА Power Steering Pump CAP Power Steering Pump |
1 | |
| 3 | 73873A1 |
ШКИВ Power Steering Pump PULLEY Power Steering Pump |
1 | |
| 4 | 34567 |
ШАЙБА Pump Stud (Brace Slot) WASHER Pump Stud (Brace Slot) |
1 | |
| 5 | 90517 |
ГАЙКА (M10) Mounting Stud NUT (M10) Mounting Stud |
2 | |
| 6 | 98644A1 |
СКОБА Pump Mounting BRACE Pump Mounting |
1 | discontinued |
| 7 | 40001188 |
ВИНТ (M10 x 20) Pump Mounting Brace SCREW (M10 x 20) Pump Mounting Brace |
1 | discontinued |
| 8 | 400248 |
СТОПОРНАЯ ШАЙБА (M10) Brace Screw LOCKWASHER (M10) Brace Screw |
1 | |
| 9 | 37619 |
КЛИНОВОЙ РЕМЕНЬ Power Steering Pump (52") V BELT Power Steering Pump (52") |
1 | superseded |
