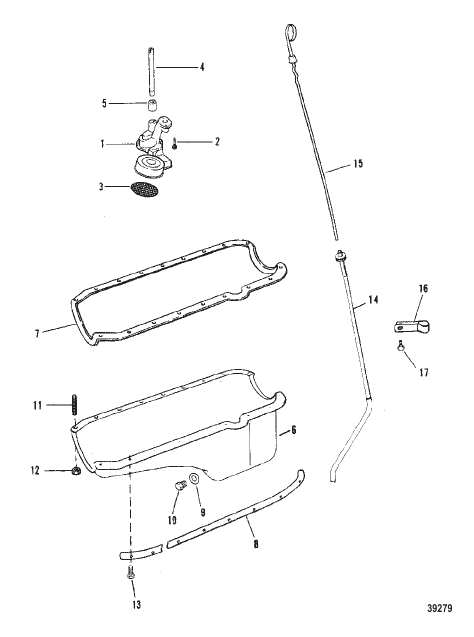

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 35352 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | superseded |
| 10 | 49956 |
ВИНТ Слив Oil Pan SCREW Drain Oil Pan |
1 | |
| 11 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) Oil Pan STUD (.312-18 x 1.6718) Oil Pan |
4 | |
| 12 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
4 | superseded |
| 13 | 72607 |
ВИНТ (0.250-20 x 0.375) Oil Pan SCREW (.250-20 x .375) Oil Pan |
12 | superseded |
| 14 | 12117A2 |
ТРУБА Oil Level Gauge TUBE Oil Level Gauge |
1 | superseded |
| 15 | 410921 |
УКАЗАТЕЛЬ Oil Level (DIPSTICK) GAUGE Oil Level (DIPSTICK) |
1 | superseded |
| 16 | 99118 |
ЗАЖИМ Oil Level Tube CLIP Oil Level Tube |
1 | superseded |
| 17 | 98253 |
ВИНТ (0.250-20 x 0.500) Clip to Cylinder Block SCREW (.250-20 x .500) Clip to Cylinder Block |
1 | |
| 2 | N.S.S. |
Не продается отдельно BOLT, Oil Pump to Cylinder block (2") GM #3892678 Not Sold Separate BOLT, Oil Pump to Cylinder block (2") GM #3892678 |
1 | |
| 3 | 35354 |
ЭКРАН В СБОРЕ Oil Pump SCREEN ASSEMBLY Oil Pump |
1 | disc. |
| 4 | 36184 |
ВАЛ Oil Pump to Distributor SHAFT Oil Pump to Distributor |
1 | |
| 5 | 36183 |
ФИКСАТОР Oil Pump Shaft RETAINER Oil Pump Shaft |
1 | |
| 6 | 11970 |
ПОДДОН Масло (Use With 2 Piece Rear Seal) PAN Oil (Use With 2 Piece Rear Seal) |
1 | disc. |
| 6 | 14244 |
ПОДДОН Масло (Use With 1 Piece Rear Seal-FULL CIRCLE) PAN Oil (Use With 1 Piece Rear Seal-FULL CIRCLE) |
1 | superseded |
| 7 | 11982 |
КОМПЛЕКТ ПРОКЛАДОК (Use With 2 Piece Rear Seal) GASKET SET (Use With 2 Piece Rear Seal) |
1 | superseded |
| 7 | 14247 |
КОМПЛЕКТ ПРОКЛАДОК Oil Pan (Use With 1 Piece Rear Seal-FULL CIRCLE) GASKET SET Oil Pan (Use With 1 Piece Rear Seal-FULL CIRCLE) |
1 | superseded |
| 8 | 11980 |
АРМАТУРА Oil Pan (RIGHT) (Use With 2 Piece Rear Seal) REINFORCEMENT Oil Pan (RIGHT) (Use With 2 Piece Rear Seal) |
1 | disc. |
| 8 | 11981 |
АРМАТУРА Oil Pan (LEFT) (Use With 2 Piece Rear Seal) REINFORCEMENT Oil Pan (LEFT) (Use With 2 Piece Rear Seal) |
1 | disc. |
| 8 | 14245 |
АРМАТУРА Oil Pan(RIGHT) (Use With 1 Piece Rear Seal-FULL CIRCLE) REINFORCEMENT Oil Pan(RIGHT) (Use With 1 Piece Rear Seal-FULL CIRCLE) |
1 | disc. |
| 8 | 14246 |
АРМАТУРА Oil Pan (LEFT) (Use With 1 Piece Rear Seal-FULL CIRCLE) REINFORCEMENT Oil Pan (LEFT) (Use With 1 Piece Rear Seal-FULL CIRCLE) |
1 | disc. |
| 9 | 49955 |
ПРОКЛАДКА Drain Screw GASKET Drain Screw |
1 | superseded |
