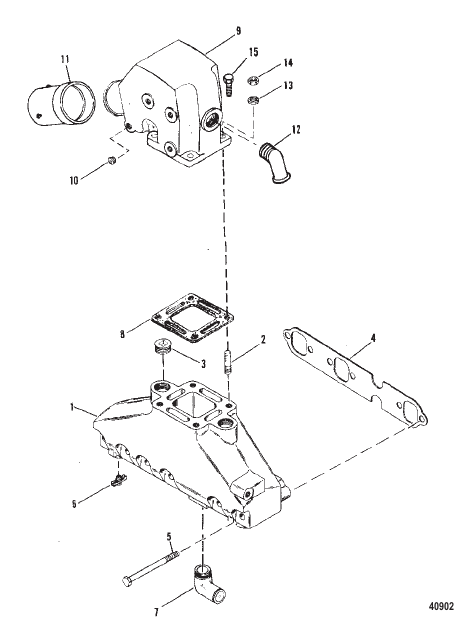

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 93320A3 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной коленчатый патрубок (3") Extension (Each Kit Contains 2 Risers) RISER KIT Exhaust Elbow (3 In.) Extension (Each Kit Contains 2 Risers) |
1 | superseded |
| - | 93322A3 |
КОМПЛЕКТ ПОДЪЕМНОГО ПАТРУБКА Выхлопной коленчатый патрубок (6") Extension (Each Kit Contains 2 Risers) RISER KIT Exhaust Elbow (6 In.) Extension (Each Kit Contains 2 Risers) |
1 | superseded |
| 1 | 99746A8 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп MANIFOLD ASSEMBLY Exhaust |
2 | superseded |
| 10 | 36382 |
ФИТИНГ (0.250-18 x 0.62), латунь Pipe, Exhaust Elbow FITTING (.250-18 x .62) Brass Pipe, Exhaust Elbow |
4 | |
| 11 | 58616A2 |
ТРУБА Water Separation TUBE Water Separation |
1 | |
| 12 | 92499 |
ФИТИНГ (45 градусов) Exhaust Elbow (45 Degree) FITTING (45 Degrees) Exhaust Elbow (45 Degree) |
2 | superseded |
| 13 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) Manifold Stud Not used with 7 degree exhaust elbow LOCKWASHER (.375) Manifold Stud Not used with 7 degree exhaust elbow |
8 | |
| 14 | 24883 |
ГАЙКА Not used with 7 degree exhaust elbow NUT Not used with 7 degree exhaust elbow |
8 | superseded |
| 15 | 43749 |
ВИНТ (0.375-16 x 5.750) Manifold Use with 7 degree exhaust elbow SCREW (.375-16 x 5.750) Manifold Use with 7 degree exhaust elbow |
8 | |
| 2 | 49545 |
ШПИЛЬКА (3/8 x 1.75) Manifold Not used with 7 Degree Exhaust Elbow STUD (3/8 x 1.75) Manifold Not used with 7 Degree Exhaust Elbow |
8 | superseded |
| 3 | 33198A1 |
ПРОБКА (3/4-14) Exhaust Manifold PLUG (3/4-14) Exhaust Manifold |
AR | superseded |
| 4 | 99757 |
ПРОКЛАДКА Exhaust Manifold to Cyliner Head GASKET Exhaust Manifold to Cyliner Head |
2 | superseded |
| 5 | 53728 |
ВИНТ (0.375-16 x 4.75) Exhaust Manifold SCREW (.375-16 x 4.75) Exhaust Manifold |
12 | superseded |
| 6 | 87238 |
ФИТИНГ Exhaust Manifold FITTING Exhaust Manifold |
2 | superseded |
| 7 | 36305 |
КОЛЕНЧАТЫЙ (90 градусов) Exhaust Manifold ELBOW (90 Degrees) Exhaust Manifold |
2 | superseded |
| 8 | 41813 |
ПРОКЛАДКА Exhaust Elbow GASKET Exhaust Elbow |
2 | superseded |
| 9 | 98504A3 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Выхлоп (15 Degree -3 Inch Outside Diameter) ELBOW ASSEMBLY Exhaust (15 Degree -3 Inch Outside Diameter) |
2 | disc. |
| 9 | 44354A3 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Выхлоп (7 Degree -4 Inch Outside Diameter) ELBOW ASSEMBLY Exhaust (7 Degree -4 Inch Outside Diameter) |
2 | superseded |
