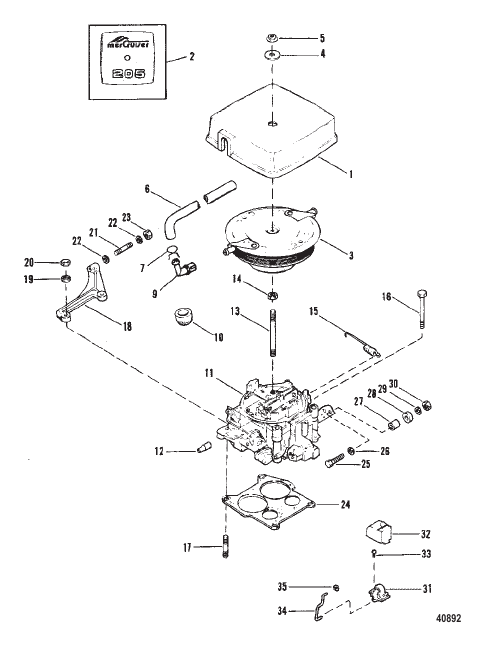

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 43560A5 |
КРЫШКА Carburetor (TOP) COVER Carburetor (TOP) |
1 | superseded |
| 10 | 52188 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Rocker Cover GROMMET Rocker Cover |
2 | superseded |
| 11 | 9354A2 |
КАРБЮРАТОР В СБОРЕ (ROCHESTER) CARBURETOR ASSEMBLY (ROCHESTER) |
1 | disc. |
| 12 | 97282 |
СОЕДИНИТЕЛЬ Carburetor CONNECTOR Carburetor |
1 | disc. |
| 13 | 91842 |
ШПИЛЬКА Flame Arrestor STUD Flame Arrestor |
1 | |
| 14 | 28941 |
ГАЙКА Jam, Flame Arrestor NUT Jam, Flame Arrestor |
1 | superseded |
| 15 | 32817 |
ПРУЖИНА Throttle Return SPRING Throttle Return |
1 | superseded |
| 16 | 74822 |
ВИНТ (0.312-18 x 3.500) Carburetor SCREW (.312-18 x 3.500) Carburetor |
2 | |
| 17 | 46857 |
ШПИЛЬКА (5/16 x 1-7/8) Carburetor STUD (5/16 x 1-7/8) Carburetor |
2 | |
| 18 | 41329A3 |
КРОНШТЕЙН Throttle Cable BRACKET Throttle Cable |
1 | superseded |
| 19 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) Carburetor Stud WASHER (.328 x .562 x .062) Carburetor Stud |
4 | |
| 2 | 1372310 |
НАКЛЕЙКА Carburetor Cover (205 ALPHA ONE) DECAL Carburetor Cover (205 ALPHA ONE) |
1 | disc. |
| 20 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
2 | |
| 21 | 38525 |
ШПИЛЬКА Throttle Cable STUD Throttle Cable |
1 | |
| 22 | 24664 |
ШАЙБА (M4 x 20) WASHER (M4 x 20) |
2 | |
| 23 | 20586 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 24 | 524571 |
ПРОКЛАДКА Carburetor to Intake Manifold GASKET Carburetor to Intake Manifold |
1 | superseded |
| 25 | 98509 |
ВИНТ Throttle Cable (1-1/8") SCREW Throttle Cable (1-1/8") |
1 | disc. |
| 26 | 20128 |
ШАЙБА WASHER |
1 | superseded |
| 27 | 57938 |
ВТУЛКА Throttle Cable Screw BUSHING Throttle Cable Screw |
1 | disc. |
| 28 | 34948 |
ПРОСТАВКА Throttle Cable Screw SPACER Throttle Cable Screw |
1 | |
| 29 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) Throttle Cable Screw WASHER (.203 x .500 x .032) Throttle Cable Screw |
1 | superseded |
| 3 | 85785A2 |
ПЛАМЕГАСИТЕЛЬ В СБОРЕ Пламя Carburetor ARRESTOR ASSEMBLY Flame Carburetor |
1 | superseded |
| 30 | 20190 |
ГАЙКА (№10-32) Throttle Cable Screw NUT (#10-32) Throttle Cable Screw |
1 | superseded |
| 31 | 72625 |
ОБОГАТИТЕЛЬ Automatic, Carburetor CHOKE Automatic, Carburetor |
1 | superseded |
| 32 | 66198 |
КРЫШКА Automatic Choke COVER Automatic Choke |
1 | superseded |
| 33 | 59994 |
ВИНТ (5/8) Automatic Choke Thermostat SCREW (5/8) Automatic Choke Thermostat |
1 | superseded |
| 34 | 61112 |
ШТОК Choke ROD Choke |
1 | disc. |
| 35 | 59989 |
ЗАЖИМ Automatic Choke Rod CLIP Automatic Choke Rod |
1 | disc. |
| 4 | 86400 |
ШАЙБА Sealing WASHER Sealing |
1 | |
| 5 | 20586 |
ГАЙКА (0.250-28) Silencer Adapter NUT (.250-28) Silencer Adapter |
1 | superseded |
| 6 | 9331512 |
РУКАВ Vent, Carburetor (11-1/4") HOSE Vent, Carburetor (11-1/4") |
2 | superseded |
| 7 | 53101 |
ЗАЖИМ Vent Hose CLAMP Vent Hose |
4 | disc. |
| 9 | 97850 |
КОЛЕНЧАТЫЙ 90 градусов Breathe, Vent Hose to Rocker Cover ELBOW 90 Degree Breathe, Vent Hose to Rocker Cover |
2 | superseded |
