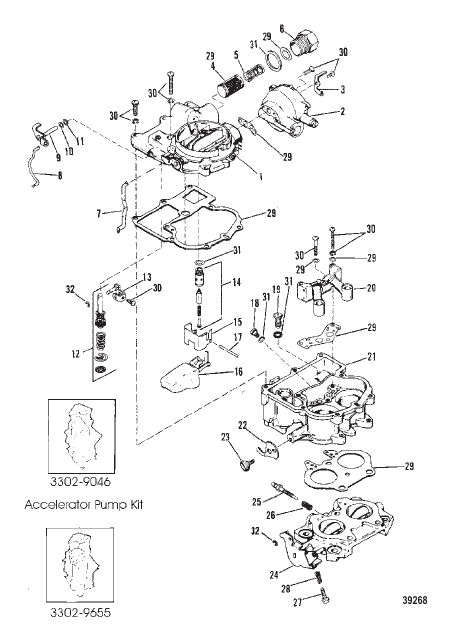

Carburetor (MerCarb) (185)
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9565A1 |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | superseded |
| - | 9437 |
КОМПЛЕКТ ДЛЯ КАПИТАЛЬНОГО РЕМОНТА OVERHAUL KIT |
1 | superseded |
| - | 804844002 |
РЕМОНТНЫЙ КОМПЛЕКТ ДЛЯ КАРБЮРАТОРА CARBURETOR REPAIR KIT |
1 | |
| 1 | N.S.S. |
Не продается отдельно AIR HORN ASSEMBLY Not Sold Separate AIR HORN ASSEMBLY |
1 | |
| 10 | 9039 |
ШАЙБА Pump Lever WASHER Pump Lever |
1 | discontinued |
| 11 | 9040 |
ШАЙБА Pump Lever WASHER Pump Lever |
1 | superseded |
| 12 | 9046 |
КОМПЛЕКТ НАСОСА Accelerator (See Note 2) PUMP KIT Accelerator (See Note 2) |
1 | |
| 12 | 9655 |
КОМПЛЕКТ НАСОСА Педаль газа (See Note 2) PUMP KIT Accelerator (See Note 2) |
1 | superseded |
| 13 | 9036 |
ARM Accelerator Pump ARM Accelerator Pump |
1 | discontinued |
| 14 | 9407 |
КОМПЛЕКТ СЕДЕЛ Впуск SEAT KIT Inlet |
1 | |
| 15 | 9038 |
ПЛАСТИНА Отражательный щиток PLATE Baffle |
1 | superseded |
| 16 | 9031 |
ПОПЛАВОК FLOAT |
1 | |
| 17 | 9030 |
ШТИФТ Float PIN Float |
1 | superseded |
| 18 | 9058 |
ВОДОМЕТНЫЙ Main JET Main |
1 | |
| 19 | 9435 |
ВОДОМЕТНЫЙ Power JET Power |
1 | |
| 2 | N.S.S. |
Не продается отдельно CHOKE HOUSING ASSEMBLY Not Sold Separate CHOKE HOUSING ASSEMBLY |
1 | |
| 20 | 9436 |
ДИФФУЗОР VENTURI |
1 | discontinued |
| 21 | N.S.S. |
Не продается отдельно BODY, Carburetor Not Sold Separate BODY, Carburetor |
1 | |
| 22 | 9048 |
КУЛАЧОК Fast Idle CAM Fast Idle |
1 | |
| 23 | 9049 |
ВАЛ Fast Idle Cam SHAFT Fast Idle Cam |
1 | |
| 24 | N.S.S. |
Не продается отдельно FLANGE ASSEMBLY Not Sold Separate FLANGE ASSEMBLY |
1 | |
| 25 | 9052 |
ВИНТ Idle Adjusting SCREW Idle Adjusting |
1 | |
| 26 | 9053 |
ПРУЖИНА Idle Adjusting Screw SPRING Idle Adjusting Screw |
1 | discontinued |
| 27 | 9060 |
ВИНТ Throttle Adjusting SCREW Throttle Adjusting |
1 | discontinued |
| 28 | 9054 |
ПРУЖИНА Throttle Adjusting Screw SPRING Throttle Adjusting Screw |
1 | discontinued |
| 29 | 9061 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 3 | 9037 |
ARM Choke ARM Choke |
1 | discontinued |
| 30 | 9045 |
КОМПЛЕКТ ВИНТОВ SCREW KIT |
1 | superseded |
| 31 | 9061 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 32 | 9658 |
E-ОБРАЗНОЕ КОЛЬЦО E-RING |
2 | superseded |
| 4 | 9033 |
СЕТЧАТЫЙ ФИЛЬТР STRAINER |
1 | superseded |
| 5 | 9032 |
ПРУЖИНА Fuel Strainer SPRING Fuel Strainer |
1 | |
| 6 | 9034 |
СОЕДИНИТЕЛЬ Inlet CONNECTOR Inlet |
1 | superseded |
| 7 | 9042 |
ШТОК Choke ROD Choke |
1 | discontinued |
| 8 | 9041 |
ШТОК Насос ROD Pump |
1 | superseded |
| 9 | 9035 |
РЫЧАГ Accelerator Pump LEVER Accelerator Pump |
1 | superseded |
