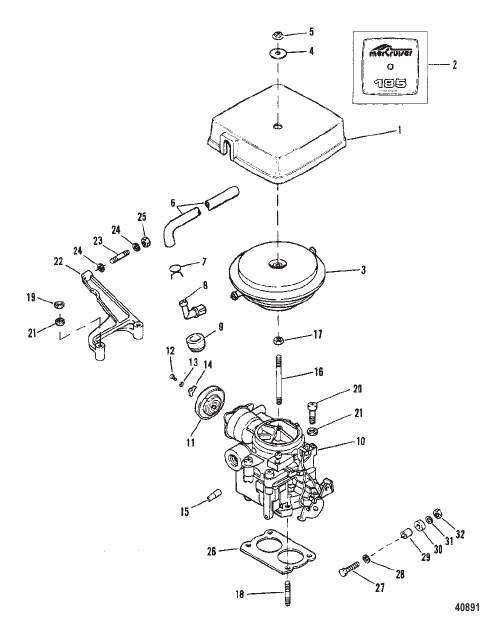

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 43560A5 |
КРЫШКА Plastic, Carburetor COVER Plastic, Carburetor |
1 | superseded |
| 10 | 9565A1 |
КАРБЮРАТОР В СБОРЕ (MerCarb) CARBURETOR ASSEMBLY (MerCarb) |
1 | superseded |
| 11 | 70125A1 |
КРЫШКА Choke COVER Choke |
1 | superseded |
| 12 | 33047 |
ВИНТ Choke Cover SCREW Choke Cover |
3 | disc. |
| 13 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь Cover Screw LOCKWASHER (#8) Stainless Steel Cover Screw |
1 | |
| 14 | 33036 |
ФИКСАТОР Cover Screw RETAINER Cover Screw |
3 | disc. |
| 15 | 97282 |
СОЕДИНИТЕЛЬ Carburetor CONNECTOR Carburetor |
1 | disc. |
| 16 | 97012 |
ШПИЛЬКА Flame Arrestor STUD Flame Arrestor |
1 | |
| 17 | 28941 |
ГАЙКА Jam, Flame Arrestor NUT Jam, Flame Arrestor |
1 | superseded |
| 18 | 46857 |
ШПИЛЬКА (5/16 x 1-7/8) Carburetor Attach With Screw STUD (5/16 x 1-7/8) Carburetor Attach With Screw |
2 | |
| 18 | 70236 |
ШПИЛЬКА (0.312 x 1.500) Carburetor Attach With Studs STUD (.312 x 1.500) Carburetor Attach With Studs |
2 | superseded |
| 18 | 70237 |
ШПИЛЬКА (0.312-18/0.312-24 x 2.620) Carburetor Attach With Studs STUD (.312-18/.312-24 x 2.620) Carburetor Attach With Studs |
2 | |
| 19 | 29250 |
ГАЙКА (0.312-24) Carburetor Stud Attach With Screw NUT (.312-24) Carburetor Stud Attach With Screw |
2 | |
| 19 | 25594 |
ГАЙКА (0.9375-24) Carburetor Stud Attach With Studs NUT (.9375-24) Carburetor Stud Attach With Studs |
4 | superseded |
| 2 | 41601 |
НАКЛЕЙКА Carburetor Cover (185) DECAL Carburetor Cover (185) |
1 | superseded |
| 2 | 137237 |
НАКЛЕЙКА Carburetor Cover (185 Alpha One) DECAL Carburetor Cover (185 Alpha One) |
1 | disc. |
| 20 | 74822 |
ВИНТ (0.312-18 x 3.500) Carburetor Attach With Screw SCREW (.312-18 x 3.500) Carburetor Attach With Screw |
2 | |
| 21 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) Carburetor Stud WASHER (.328 x .562 x .062) Carburetor Stud |
4 | |
| 22 | 77456A2 |
КРОНШТЕЙН Throttle Cable BRACKET Throttle Cable |
1 | superseded |
| 23 | 38525 |
ШПИЛЬКА Throttle Cable STUD Throttle Cable |
1 | |
| 24 | 24664 |
ШАЙБА (M4 x 20) WASHER (M4 x 20) |
2 | |
| 25 | 20586 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 26 | 70143 |
ПРОКЛАДКА Carburetor to Intake Manifold GASKET Carburetor to Intake Manifold |
1 | superseded |
| 27 | 98509 |
ВИНТ Throttle Cable to Carburetor SCREW Throttle Cable to Carburetor |
1 | disc. |
| 28 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) Throttle Cable Screw WASHER (.203 x .500 x .032) Throttle Cable Screw |
1 | superseded |
| 29 | 57938 |
ВТУЛКА Throttle Cable Screw BUSHING Throttle Cable Screw |
1 | disc. |
| 3 | 86271A1 |
ПЛАМЕГАСИТЕЛЬ Carburetor FLAME ARRESTOR Carburetor |
1 | superseded |
| 30 | 34948 |
ПРОСТАВКА Throttle Cable Screw SPACER Throttle Cable Screw |
1 | |
| 31 | 20128 |
ШАЙБА Throttle Cable Screw WASHER Throttle Cable Screw |
2 | superseded |
| 32 | 20190 |
ГАЙКА (№10-32) Throttle Cable Screw NUT (#10-32) Throttle Cable Screw |
1 | superseded |
| 4 | 86400 |
ШАЙБА Sealing WASHER Sealing |
1 | |
| 5 | 20586 |
ГАЙКА (0.250-28) Silencer Adapter NUT (.250-28) Silencer Adapter |
1 | superseded |
| 6 | 9331512 |
РУКАВ Vent, Carburetor (11-1/4") HOSE Vent, Carburetor (11-1/4") |
2 | superseded |
| 7 | 53101 |
ЗАЖИМ Vent Hose CLAMP Vent Hose |
4 | disc. |
| 8 | 97850 |
КОЛЕНЧАТЫЙ 90 градусов Breather, Vent Hose ELBOW 90 Degree Breather, Vent Hose |
1 | superseded |
| 8 | 47957 |
СОЕДИНИТЕЛЬ Vent Hose (Straight) CONNECTOR Vent Hose (Straight) |
1 | disc. |
| 9 | 52188 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Rocker Cover GROMMET Rocker Cover |
2 | superseded |
