| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 90747A8 |

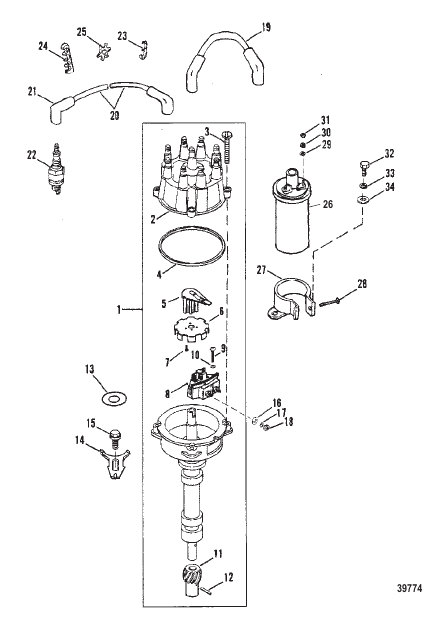

РАСПРЕДЕЛИТЕЛЬ В СБОРЕ DISTRIBUTOR ASSEMBLY |
1 | superseded |
| 11 | 476191 |
ПЕРЕДАЧА Drive GEAR Drive |
1 | superseded |
| 12 | 47617 |
ШТИФТ Drive Gear PIN Drive Gear |
1 | |
| 13 | 52184 |
ПРОКЛАДКА Distributor GASKET Distributor |
1 | superseded |
| 14 | 52185 |
ЗАЖИМ Distributor to Intake Manifold CLAMP Distributor to Intake Manifold |
1 | superseded |
| 15 | 35169 |
ВИНТ (7/8) Distributor Clamp SCREW (7/8) Distributor Clamp |
1 | superseded |
| 16 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь Distributor Terminal WASHER (.192 x .375 x .0312) Stainless Steel Distributor Terminal |
2 | |
| 17 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь Distributor Terminal LOCKWASHER (#10) Stainless Steel Distributor Terminal |
2 | |
| 18 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь Distributor Terminal NUT (#10-32) Stainless Steel Distributor Terminal |
2 | |
| 19 | 42841A51 |
ЖИЛА В СБОРЕ Distributor to Coil LEAD ASSEMBLY Distributor to Coil |
1 | superseded |
| 2 | 13753A2 |
ПРОБКА Distributor CAP Distributor |
1 | superseded |
| 20 | 43376A11 |
КОМПЛЕКТ ПРОВОДА СВЕЧИ ЗАЖИГАНИЯ SPARK PLUG WIRE KIT |
1 | superseded |
| 21 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ Spark Plug BOOT/TERMINAL KIT Spark Plug |
8 | |
| 22 | 59571 |
СВЕЧА ЗАЖИГАНИЯ (NGK-BR6FS) SPARK PLUG (NGK-BR6FS) |
8 | superseded |
| 23 | 54676 |
ФИКСАТОР Двухпроводной High Tension Leads RETAINER Two Wire High Tension Leads |
2 | |
| 24 | 32783 |
ФИКСАТОР Трехпроводной High Tension Leads RETAINER Three Wire High Tension Leads |
4 | |
| 25 | 32784 |
ФИКСАТОР Четырехпроводной High Tension Leads RETAINER Four Wire High Tension Leads |
2 | disc. |
| 26 | 7803A4 |
КАТУШКА Ignition COIL Ignition |
1 | superseded |
| 27 | 65970 |
КРОНШТЕЙН Ignition Coil BRACKET Ignition Coil |
1 | superseded |
| 28 | 41408 |
ВИНТ (№10-32 x 1.50) Bracket SCREW (#10-32 x 1.50) Bracket |
1 | |
| 29 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь Ignition Coil Terminal WASHER (.192 x .375 x .0312) Stainless Steel Ignition Coil Terminal |
2 | |
| 3 | 90926 |
ВИНТ (№10-32 x 0.810) Distributor Cap SCREW (#10-32 x .810) Distributor Cap |
4 | |
| 30 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь Ignition Coil Terminal LOCKWASHER (#10) Stainless Steel Ignition Coil Terminal |
2 | |
| 31 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
2 | |
| 32 | 21077 |
ВИНТ (0.375-16 x 0.88) Ignition Coil SCREW (.375-16 x .88) Ignition Coil |
1 | disc. |
| 33 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
1 | |
| 34 | 25909 |
ШАЙБА (0.406 x 0.812 x 0.065) WASHER (.406 x .812 x .065) |
1 | |
| 4 | 98242 |
ПРОКЛАДКА Distributor Cap GASKET Distributor Cap |
1 | superseded |
| 5 | 13524A4 |
РОТОР ROTOR |
1 | superseded |
| 6 | 11351 |
ЛОПАСТНОЙ ДАТЧИК Датчик WHEEL Sensor |
1 | disc. |
| 7 | 11252 |
ВИНТ (0.138-20 x 0.50) Sensor Wheel SCREW (.138-20 x .50) Sensor Wheel |
3 | |
| 8 | 91019A3 |
ДАТЧИК В СБОРЕ SENSOR ASSEMBLY |
1 | superseded |
| 9 | 66686 |
ВИНТ (№10-32 x 1.00) Sensor SCREW (#10-32 x 1.00) Sensor |
1 | |
| 9 | 72202 |
ВИНТ (№10-32 x 1.25) Sensor SCREW (#10-32 x 1.25) Sensor |
1 |
