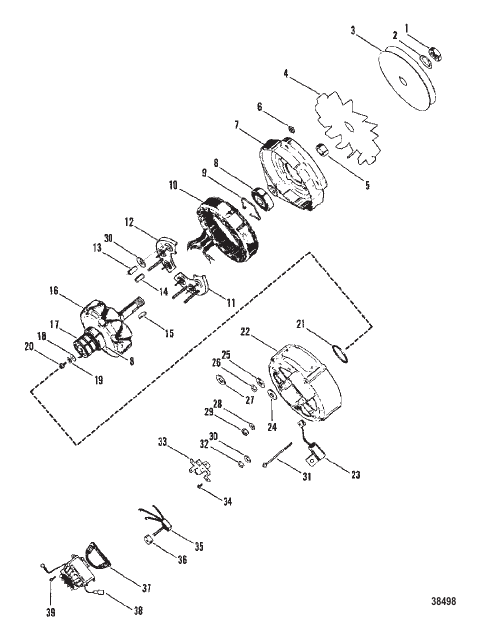

Alternator (MOTOROLA)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 92497A3 |
ГЕНЕРАТОР В СБОРЕ (55 ампер) ALTERNATOR ASSEMBLY (55 Ampere) |
1 | superseded |
| 1 | 7027 |
ГАЙКА Fan & Pulley to Rotor NUT Fan & Pulley to Rotor |
1 | discontinued |
| 10 | 8636 |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | discontinued |
| 11 | 7009 |
ДИОД Negative DIODE Negative |
1 | discontinued |
| 12 | 7010 |
ТЕПЛОПОГЛОЩАЮЩИЙ Positive HEAT SINK Positive |
1 | discontinued |
| 13 | 7020 |
РУКАВ Insulator SLEEVE Insulator |
1 | discontinued |
| 14 | 7018 |
РУКАВ Insulator SLEEVE Insulator |
1 | discontinued |
| 15 | 7034 |
КЛЮЧ Rotor KEY Rotor |
1 | discontinued |
| 16 | 8635 |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 17 | 7014 |
ТОКОСОБИРАТЕЛЬНОЕ КОЛЬЦО SLIP RING |
1 | discontinued |
| 18 | 7206 |
ШАЙБА Rotor Screw WASHER Rotor Screw |
1 | discontinued |
| 19 | 7207 |
СТОПОРНАЯ ШАЙБА Rotor Screw LOCKWASHER Rotor Screw |
1 | discontinued |
| 2 | 7033 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 20 | 7029 |
ВИНТ (5/8") Rotor Shaft SCREW (5/8 In.) Rotor Shaft |
1 | discontinued |
| 21 | 7007 |
ФИКСАТОР Rotor Shaft Bearing RETAINER Rotor Shaft Bearing |
1 | discontinued |
| 22 | 7003 |
КОРПУС Rear HOUSING Rear |
1 | discontinued |
| 23 | 7035 |
КОНДЕНСАТОР CONDENSER |
1 | superseded |
| 24 | 7023 |
РАЗЪЕДИНИТЕЛЬ Regulator Terminal Stud INSULATOR Regulator Terminal Stud |
1 | discontinued |
| 25 | 7024 |
ШАЙБА Condensor Terminal Stud WASHER Condensor Terminal Stud |
1 | discontinued |
| 26 | 7025 |
ГАЙКА Terminal Stud NUT Terminal Stud |
1 | discontinued |
| 27 | 7208 |
ШАЙБА WASHER |
1 | discontinued |
| 28 | 7032 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 29 | 7026 |
ГАЙКА Terminal Attaching NUT Terminal Attaching |
1 | discontinued |
| 3 | 8637 |
ШКИВ Drive End Frame PULLEY Drive End Frame |
1 | discontinued |
| 30 | 7022 |
ШАЙБА Condensor Terminal Stud WASHER Condensor Terminal Stud |
1 | discontinued |
| 31 | 8638 |
СКВОЗНОЙ БОЛТ THRU BOLT |
4 | discontinued |
| 32 | 7021 |
ГАЙКА Condensor Terminal Attaching NUT Condensor Terminal Attaching |
1 | discontinued |
| 33 | 7011 |
ДЕРЖАТЕЛЬ В СБОРЕ Щетка HOLDER ASSEMBLY Brush |
1 | discontinued |
| 34 | 7030 |
ВИНТ (1/2") Brush Holder SCREW (1/2 In.) Brush Holder |
2 | discontinued |
| 35 | 7008 |
ДИОДНАЯ ТРИАДА DIODE TRIO |
1 | discontinued |
| 36 | 7019 |
ПРОСТАВКА Diode Trio SPACER Diode Trio |
1 | discontinued |
| 37 | 7013 |
ПРОКЛАДКА Voltage Regulator GASKET Voltage Regulator |
1 | discontinued |
| 38 | 7036 |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
1 | superseded |
| 39 | 7015 |
ВИНТ Voltage Regulator Attaching SCREW Voltage Regulator Attaching |
4 | discontinued |
| 4 | 7004 |
ВЕНТИЛЯТОР Drive End Frame FAN Drive End Frame |
1 | discontinued |
| 5 | 7012 |
ПРОСТАВКА Fan to Drive End Frame SPACER Fan to Drive End Frame |
1 | superseded |
| 6 | 7028 |
ГАЙКА Thru Bolt Attaching NUT Thru Bolt Attaching |
4 | discontinued |
| 7 | 7000 |
КРЫШКА В СБОРЕ Front COVER ASSEMBLY Front |
1 | discontinued |
| 8 | 7005 |
ПОДШИПНИК Шарик Drive End BEARING Ball Drive End |
2 | discontinued |
| 9 | 7006 |
КОЛЬЦО Drive End Ball Bearing RING Drive End Ball Bearing |
1 | discontinued |
