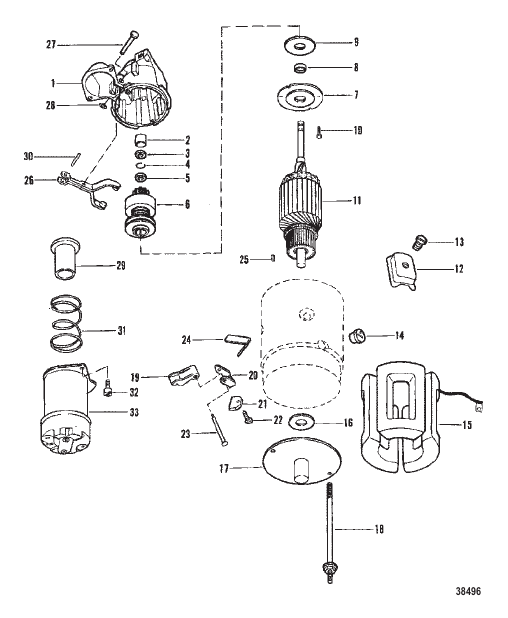

Starter Motor
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 12177A2 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 1 | 75666 |
КОРПУС Drive End (Delco Remy Starter #1998513) HOUSING Drive End (Delco Remy Starter #1998513) |
1 | discontinued |
| 1 | 13754 |
КОРПУС Drive End (Delco Remy Starter # 1998568 or 1998566) HOUSING Drive End (Delco Remy Starter # 1998568 or 1998566) |
1 | discontinued |
| 10 | N.S.S. |
Не продается отдельно SCREW, Bearing Plate (DELCO REMY #1972786) (Delco Remy Starter #1998513 or 1998568) Not Sold Separate SCREW, Bearing Plate (DELCO REMY #1972786) (Delco Remy Starter #1998513 or 1998568) |
2 | |
| 10 | N.S.S. |
Не продается отдельно SCREW, Bearing Plate (DELCO REMY #1984000) (Delco Remy Starter # 1998566) Not Sold Separate SCREW, Bearing Plate (DELCO REMY #1984000) (Delco Remy Starter # 1998566) |
2 | |
| 11 | 71693 |
ЯКОРЬ (Delco Remy Starter #1998513 or 1998568) ARMATURE (Delco Remy Starter #1998513 or 1998568) |
1 | discontinued |
| 11 | 75665 |
ЯКОРЬ (Delco Remy Starter # 1998566) ARMATURE (Delco Remy Starter # 1998566) |
1 | discontinued |
| 12 | N.S.S. |
Не продается отдельно SHOE, Pole - Field Coil (DELCO REMY #1931129) (Delco Remy Starter #1998513 or 1998568) Not Sold Separate SHOE, Pole - Field Coil (DELCO REMY #1931129) (Delco Remy Starter #1998513 or 1998568) |
4 | |
| 12 | N.S.S. |
Не продается отдельно SHOE, Pole - Field Coil (DELCO REMY #810601) (Delco Remy Starter # 1998566) Not Sold Separate SHOE, Pole - Field Coil (DELCO REMY #810601) (Delco Remy Starter # 1998566) |
4 | |
| 13 | N.S.S. |
Не продается отдельно SCREW, Pole Shoe to Field Coil (DELCO REMY #1968396) Not Sold Separate SCREW, Pole Shoe to Field Coil (DELCO REMY #1968396) |
4 | |
| 14 | 79208 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Field Coil - Field Frame GROMMET Field Coil - Field Frame |
1 | discontinued |
| 15 | 79212 |
КАТУШКА В СБОРЕ (Delco Remy Starter #1998513 or 1998568) COIL ASSEMBLY (Delco Remy Starter #1998513 or 1998568) |
1 | discontinued |
| 15 | 75664 |
КАТУШКА В СБОРЕ (Delco Remy Starter # 1998566) COIL ASSEMBLY (Delco Remy Starter # 1998566) |
1 | discontinued |
| 16 | 33258 |
ШАЙБА Кожа Commutator End Frame WASHER Leather Commutator End Frame |
1 | discontinued |
| 17 | 79211 |
РАМА Commutator End, Lower FRAME Commutator End, Lower |
1 | discontinued |
| 18 | N.S.S. |
Не продается отдельно BOLT, Thru (DELCO REMY #1941111) Not Sold Separate BOLT, Thru (DELCO REMY #1941111) |
1 | |
| 18 | N.S.S. |
Не продается отдельно BOLT, Thru (DELCO REMY #1939970) Not Sold Separate BOLT, Thru (DELCO REMY #1939970) |
1 | |
| 19 | 33284 |
ДЕРЖАТЕЛЬ Insulated HOLDER Insulated |
2 | discontinued |
| 2 | 33369 |
ВТУЛКА Drive End Housing BUSHING Drive End Housing |
1 | discontinued |
| 20 | 33283 |
ДЕРЖАТЕЛЬ Field Frame Brush Ground HOLDER Field Frame Brush Ground |
2 | discontinued |
| 21 | 33270 |
ЩЕТКА Field Frame BRUSH Field Frame |
4 | |
| 22 | N.S.S. |
Не продается отдельно SCREW, Brush Lead (DELCO REMY #1967747) Not Sold Separate SCREW, Brush Lead (DELCO REMY #1967747) |
2 | |
| 22 | N.S.S. |
Не продается отдельно SCREW, Brush Lead (DELCO REMY #443527) Not Sold Separate SCREW, Brush Lead (DELCO REMY #443527) |
2 | |
| 23 | 33294 |
ОПОРА Ground & Insulated Holders SUPPORT Ground & Insulated Holders |
2 | discontinued |
| 24 | 33285 |
ПРУЖИНА Field Fram e Brush SPRING Field Fram e Brush |
4 | discontinued |
| 25 | N.S.S. |
Не продается отдельно PIN, Dowel - Field Frame (DELCO REMY #1985696) Not Sold Separate PIN, Dowel - Field Frame (DELCO REMY #1985696) |
1 | |
| 26 | 71698 |
РЫЧАГ Shift LEVER Shift |
1 | discontinued |
| 27 | N.S.S. |
Не продается отдельно STUD, Shift Lever (DELCO REMY #1945804) Not Sold Separate STUD, Shift Lever (DELCO REMY #1945804) |
1 | |
| 28 | N.S.S. |
Не продается отдельно RETAINING RING (DELCO REMY #11505767) Not Sold Separate RETAINING RING (DELCO REMY #11505767) |
1 | |
| 29 | 33317 |
ПЛУНЖЕР Shift Lever PLUNGER Shift Lever |
1 | discontinued |
| 3 | 33292 |
ВТУЛКА Thrust COLLAR Thrust |
1 | superseded |
| 30 | N.S.S. |
Не продается отдельно PIN, Plunger to Shift Lever (DELCO REMY #1987049) Not Sold Separate PIN, Plunger to Shift Lever (DELCO REMY #1987049) |
1 | |
| 31 | N.S.S. |
Не продается отдельно SPRING, Plunger Return (DELCO REMY #1978281) Not Sold Separate SPRING, Plunger Return (DELCO REMY #1978281) |
1 | |
| 32 | N.S.S. |
Не продается отдельно SCREW, Solenoid Switch (DELCO REMY #9413260) Not Sold Separate SCREW, Solenoid Switch (DELCO REMY #9413260) |
2 | |
| 33 | 13037 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ SOLENOID SWITCH |
1 | |
| 4 | 33290 |
КОЛЬЦО Стопор Pinion Stop Collar RING Retaining Pinion Stop Collar |
1 | discontinued |
| 5 | 33291 |
ВТУЛКА Pinion Stop COLLAR Pinion Stop |
1 | discontinued |
| 6 | 79205 |
ПРИВОД В СБОРЕ Clutch DRIVE ASSEMBLY Clutch |
1 | superseded |
| 7 | 79396 |
ПЛАСТИНА Bearing PLATE Bearing |
1 | discontinued |
| 8 | 71694 |
ВТУЛКА Bearing Plate BUSHING Bearing Plate |
1 | discontinued |
| 9 | 68614 |
ШАЙБА Bearing Plate WASHER Bearing Plate |
1 | discontinued |
