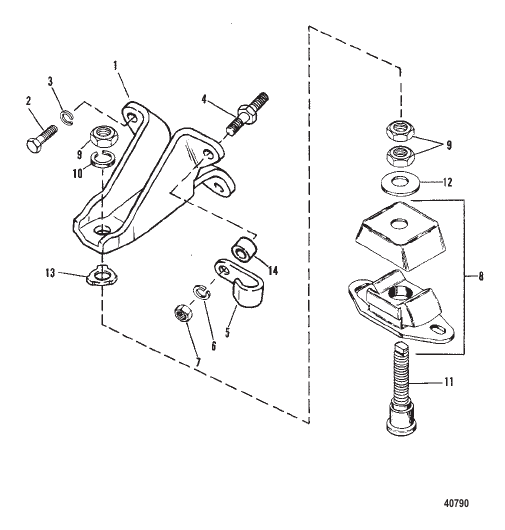

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 44364A1 |
КРОНШТЕЙН В СБОРЕ Mounting, Engine (FRONT) BRACKET ASSEMBLY Mounting, Engine (FRONT) |
2 | superseded |
| 10 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) Mounting Bracket LOCKWASHER (.750) Mounting Bracket |
2 | |
| 11 | 41012 |
ШПИЛЬКА Engine Mounting STUD Engine Mounting |
2 | disc. |
| 12 | 41150 |
ШАЙБА Support WASHER Support |
2 | disc. |
| 13 | 12657 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 14 | 57369 |
ПРОСТАВКА Mounting Stud SPACER Mounting Stud |
1 | |
| 2 | 34353 |
ВИНТ (0.375-16 x 1.00) Mounting Bracket to Engine SCREW (.375-16 x 1.00) Mounting Bracket to Engine |
5 | |
| 3 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) Mounting Bracket Screw LOCKWASHER (.375) Mounting Bracket Screw |
2 | |
| 3 | 46132 |
ШАЙБА Mounting Bracket Screw WASHER Mounting Bracket Screw |
1 | |
| 4 | 64066 |
ШПИЛЬКА (0.375-16 x 2.750), специальный Mounting Bracket to Engine Starboard STUD (.375-16 x 2.750) Special Mounting Bracket to Engine Starboard |
1 | superseded |
| 5 | 92850 |
ЗАЖИМ Wiring Harness Starboard CLAMP Wiring Harness Starboard |
1 | |
| 6 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) Starboard LOCKWASHER (.375) Starboard |
2 | |
| 7 | 32219 |
ГАЙКА (.375-16) Starboard NUT (.375-16) Starboard |
1 | |
| 8 | 98323A6 |
БАЗА В СБОРЕ Engine Mount BASE ASSEMBLY Engine Mount |
2 | |
| 9 | 20739 |
ГАЙКА (.750-16) Jam, Engine Mount Base NUT (.750-16) Jam, Engine Mount Base |
6 |
