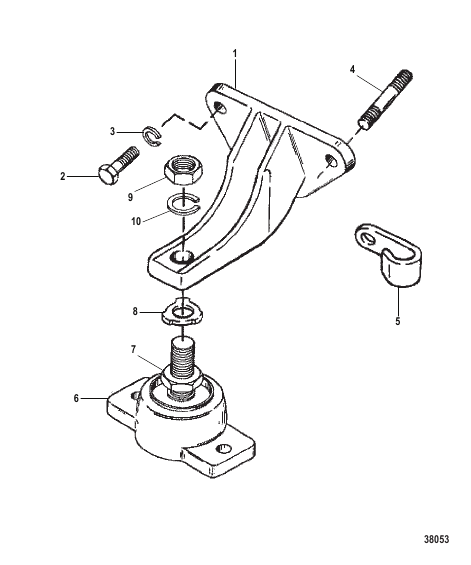

ENGINE MOUNTING
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 79550A1 |
КРОНШТЕЙН BRACKET |
2 | |
| 10 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) LOCKWASHER (.750) |
2 | |
| 2 | 68101 |
ВИНТ (0.375-16 x 1.375) SCREW (.375-16 x 1.375) |
2 | |
| 2 | 48424 |
ВИНТ (0.375-16 x 1.620) SCREW (.375-16 x 1.620) |
2 | |
| 3 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
6 | |
| 4 | 805357 |
ШПИЛЬКА (0.375-16 x 2.130) STUD (.375-16 x 2.130) |
2-4 | superseded |
| 5 | 97862 |
ЗАЖИМ CLAMP |
2 | |
| 6 | 814263A1 |
БАЗА В СБОРЕ BASE ASSEMBLY |
2 | |
| 7 | 816331 |
ГАЙКА (.750-16) NUT (.750-16) |
2 | |
| 8 | 12657 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 9 | 49252 |
ГАЙКА (3/4-16) NUT (3/4-16) |
2 | superseded |
