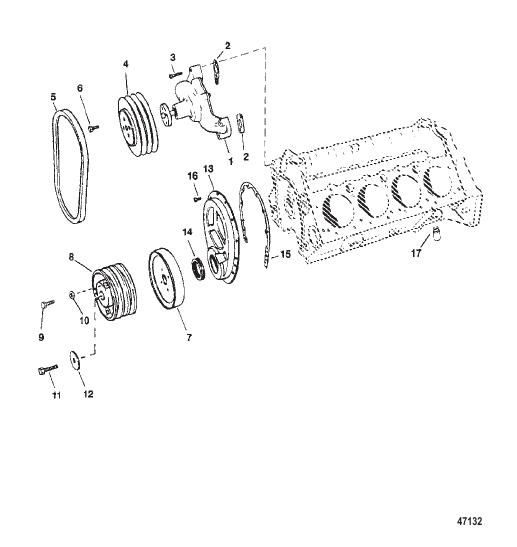

WATER PUMP AND FRONT COVER
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 805396A95 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 811573 |
НАСОС В СБОРЕ PUMP ASSEMBLY |
1 | superseded |
| 10 | 34714 |
ШАЙБА WASHER |
3 | |
| 11 | 811559 |
ВИНТ (0.500-20 x 2.500) SCREW (.500-20 x 2.500) |
1 | superseded |
| 12 | 49103 |
ШАЙБА WASHER |
1 | |
| 13 | 811570 |
КРЫШКА В СБОРЕ COVER ASSEMBLY |
1 | discontinued |
| 14 | 8219471 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 15 | 811572 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 16 | 35366 |
ВИНТ SCREW |
10 | superseded |
| 17 | 807211 |
КЛАПАН Разгрузка (30 фунт./кв. дюйм) VALVE Relief (30 PSI) |
1 | |
| 2 | 49110 |
ПРОКЛАДКА Крепление циркуляционного водяного насоса GASKET Circulating Water Pump Mount |
2 | superseded |
| 3 | 811574 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
4 | superseded |
| 4 | 19692T |
ШКИВ (7" Диаметр) PULLEY (7 In. Diameter) |
1 | superseded |
| 5 | 48122 |
РЕМЕНЬ (48") BELT (48 Inches) |
1 | superseded |
| 6 | 47277 |
ВИНТ (0.312-24 x 0.750) (3/4") SCREW (.312-24 x .750) (3/4 IN.) |
4 | |
| 7 | 811555 |
ВИБРОГАСИТЕЛЬ HARMONIC BALANCER |
1 | superseded |
| 8 | 90081T |
ШКИВ PULLEY |
1 | discontinued |
| 9 | 75334 |
ВИНТ (0.375-24 x 3.00) SCREW (.375-24 x 3.00) |
3 | discontinued |
