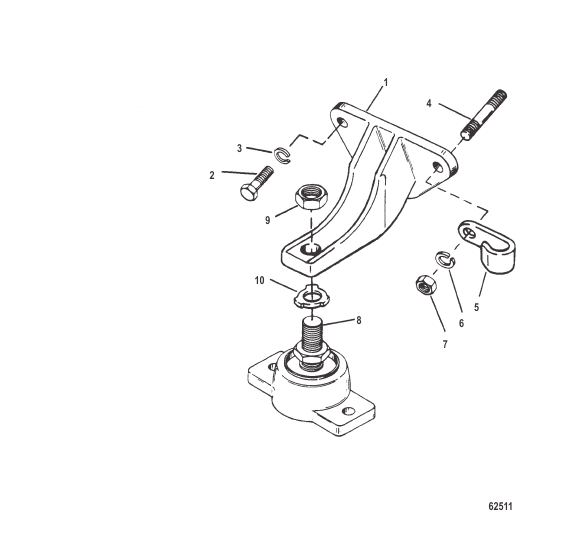

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 79550A1 |
КРОНШТЕЙН MOUNTING - ENGINE (FRONT) BRACKET MOUNTING - ENGINE (FRONT) |
2 | |
| 10 | 12657 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 2 | 68101 |
ВИНТ (0.375-16 x 1.375) MOUNTING BRACKET TO ENGINE PORT SCREW (.375-16 x 1.375) MOUNTING BRACKET TO ENGINE PORT |
2 | |
| 2 | 32132 |
ВИНТ (0.375-16 x 1.750) MOUNTING BRACKET TO ENGINE PORT SCREW (.375-16 x 1.750) MOUNTING BRACKET TO ENGINE PORT |
1 | |
| 2 | 68101 |
ВИНТ (0.375-16 x 1.375) MOUNTING BRACKET TO ENGINE STARBOARD SCREW (.375-16 x 1.375) MOUNTING BRACKET TO ENGINE STARBOARD |
2 | |
| 3 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) MOUNTING BRACKET SCREW PORT LOCKWASHER (.375) MOUNTING BRACKET SCREW PORT |
2 | |
| 3 | 46132 |
ШАЙБА MOUNTING BRACKET SCREW PORT WASHER MOUNTING BRACKET SCREW PORT |
1 | |
| 3 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) MOUNTING BRACKET SCREW STARBOARD LOCKWASHER (.375) MOUNTING BRACKET SCREW STARBOARD |
2 | |
| 4 | 64066 |
ШПИЛЬКА (0.375-16 x 2.750), специальный MOUNTING BRACKET TO ENGINE STARBOARD STUD (.375-16 x 2.750) Special MOUNTING BRACKET TO ENGINE STARBOARD |
1 | superseded |
| 5 | 78945 |
J-ОБРАЗНЫЙ ФИКСАТОР Harness Support-WIRING HARNESS STARBOARD J CLAMP Harness Support-WIRING HARNESS STARBOARD |
1 | |
| 6 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) MOUNTING BRACKET STUD STARBOARD LOCKWASHER (.375) MOUNTING BRACKET STUD STARBOARD |
1 | |
| 7 | 32219 |
ГАЙКА (.375-16) MOUNTING BRACKET STUD STARBOARD NUT (.375-16) MOUNTING BRACKET STUD STARBOARD |
1 | |
| 8 | 814263A1 |
БАЗА В СБОРЕ ENGINE MOUNT BASE ASSEMBLY ENGINE MOUNT |
2 | |
| 9 | 49252 |
ГАЙКА JAM - ENGINE MOUNT BASE NUT JAM - ENGINE MOUNT BASE |
4 | superseded |
