| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8291A3 |

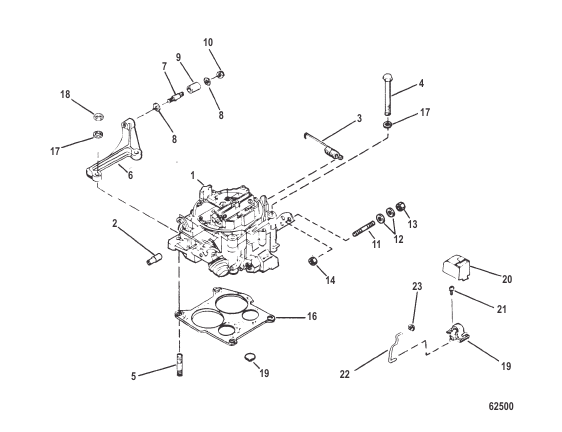

КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | disc. |
| 10 | 20586 |
ГАЙКА (0.250-28) THROTTLE CABLE STUD NUT (.250-28) THROTTLE CABLE STUD |
1 | superseded |
| 11 | 96112 |
ШПИЛЬКА (0.250-28 x 2.00) THROTTLE CABLE ANCHOR-THROTTLE CABLE STUD (.250-28 x 2.00) THROTTLE CABLE ANCHOR-THROTTLE CABLE |
1 | superseded |
| 12 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь THROTTLE CABLE STUD WASHER (.281 x .500 x .060) Stainless Steel THROTTLE CABLE STUD |
2 | superseded |
| 13 | 20361 |
ГАЙКА (0.250-28) THROTTLE CABLE STUD NUT (.250-28) THROTTLE CABLE STUD |
1 | superseded |
| 14 | 20586 |
ГАЙКА (0.250-28) THROTTLE CABLE STUD NUT (.250-28) THROTTLE CABLE STUD |
1 | superseded |
| 15 | 48358 |
ПРОБКА (0.375) INTAKE MANIFOLD VACUUM HOLE PLUG (.375) INTAKE MANIFOLD VACUUM HOLE |
1 | superseded |
| 16 | 524572 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
1 | |
| 17 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) CARBURETOR STUD WASHER (.328 x .562 x .062) CARBURETOR STUD |
4 | |
| 18 | 29250 |
ГАЙКА (0.312-24) CARBURETOR STUD NUT (.312-24) CARBURETOR STUD |
2 | |
| 19 | 66205 |
ОБОГАТИТЕЛЬ AUTOMATIC - CARBURETOR CHOKE AUTOMATIC - CARBURETOR |
1 | disc. |
| 2 | 97282 |
СОЕДИНИТЕЛЬ CARBURETOR CONNECTOR CARBURETOR |
1 | disc. |
| 20 | 66198 |
КРЫШКА AUTOMATIC CHOKE COVER AUTOMATIC CHOKE |
1 | superseded |
| 21 | 69235 |
ВИНТ (0.190-24 x 0.500) AUTOMATIC CHOKE THERMOSTAT SCREW (.190-24 x .500) AUTOMATIC CHOKE THERMOSTAT |
1 | |
| 22 | 77931 |
ШТОК ОБОГАТИТЕЛЯ CHOKE CHOKE ROD CHOKE |
1 | disc. |
| 23 | 59989 |
ЗАЖИМ AUTOMATIC CHOKE ROD CLIP AUTOMATIC CHOKE ROD |
1 | disc. |
| 3 | 32817 |
ПРУЖИНА THROTTLE RETURN SPRING THROTTLE RETURN |
1 | superseded |
| 4 | 74822 |
ВИНТ (0.312-18 x 3.500) CARBURETOR SCREW (.312-18 x 3.500) CARBURETOR |
2 | |
| 5 | 46857 |
ШПИЛЬКА (5/16 x 1-7/8) CARBURETOR STUD (5/16 x 1-7/8) CARBURETOR |
2 | |
| 6 | 41329A3 |
КРОНШТЕЙН THROTTLE CABLE BRACKET THROTTLE CABLE |
1 | superseded |
| 7 | 38525 |
ШПИЛЬКА THROTTLE CABLE STUD THROTTLE CABLE |
1 | |
| 8 | 24664 |
ШАЙБА (M4 x 20) THROTTLE CABLE STUD WASHER (M4 x 20) THROTTLE CABLE STUD |
2 | |
| 9 | 31866 |
ПРОСТАВКА (0.256 x 0.313 x 0.625) THROTTLE CABLE STUD SPACER (.256 x .313 x .625) THROTTLE CABLE STUD |
1 |
