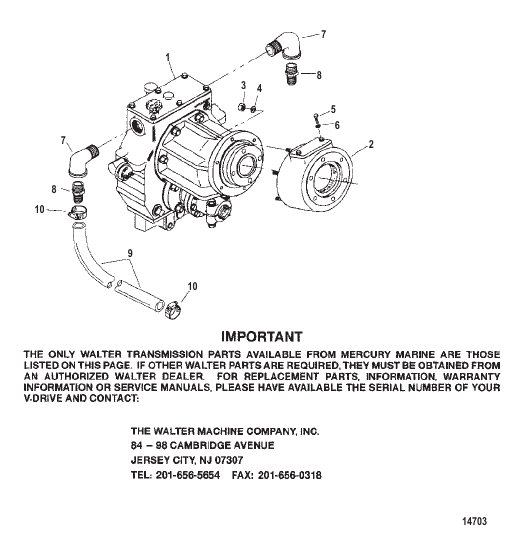

TRANSMISSION (WALTER V-DRIVE)
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 860361A6 |
ТРАНСМИССИЯ (1.00:1) TRANSMISSION (1.00:1) |
1 | discontinued |
| 1 | 860362A2 |
ТРАНСМИССИЯ (1.46:1) TRANSMISSION (1.46:1) |
1 | discontinued |
| 10 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) CLAMP Worm Gear (1.98 DIameter) |
2 | superseded |
| 2 | 860308A3 |
КОРПУС В СБОРЕ HOUSING ASSEMBLY |
1 | discontinued |
| 3 | 86226 |
ГАЙКА (.375-16) NUT (.375-16) |
6 | superseded |
| 4 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
6 | |
| 5 | 28636 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
2 | |
| 6 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 7 | 860378 |
КОЛЕНЧАТЫЙ (90 DEGREE) ELBOW (90 DEGREE) |
2 | |
| 8 | 860379 |
ФИТИНГ FITTING |
2 | |
| 9 | 1743579 |
РУКАВ (Общая длина 96.00") (TO SEA WATER PUMP) (CUT TO 44 IN.) HOSE (96.00 Inches Bulk) (TO SEA WATER PUMP) (CUT TO 44 IN.) |
1 | superseded |
