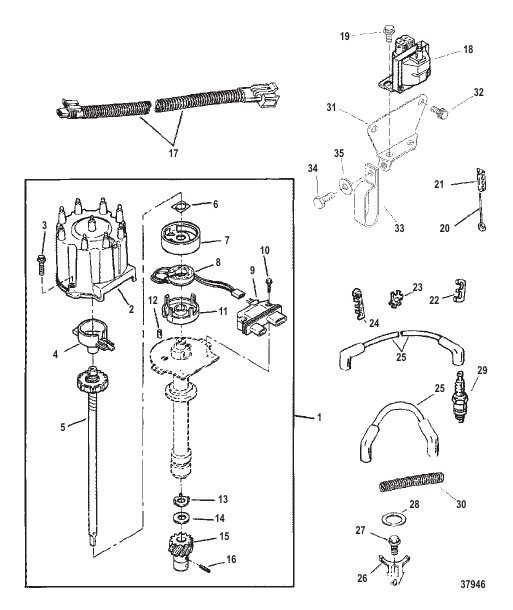

DISTRIBUTOR AND IGNITION COMPONENTS
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 807670A96 |
КОМПЛЕКТ ПРОКЛАДОК/УПЛОТНИТЕЛЕЙ Капитальный ремонт двигателя GASKET/SEAL SET Engine Overhaul |
1 | |
| 1 | 805222A1 |
РАСПРЕДЕЛИТЕЛЬ В СБОРЕ DISTRIBUTOR ASSEMBLY |
1 | |
| 10 | 811638 |
ВИНТ SCREW |
2 | discontinued |
| 11 | 811641 |
ПОЛЮСНЫЙ БАШМАК POLE PIECE |
1 | |
| 12 | 808488 |
ШТИФТ PIN |
1 | discontinued |
| 13 | 46350 |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 808489 |
ШАЙБА WASHER |
1 | discontinued |
| 15 | 808490 |
ПЕРЕДАЧА GEAR |
1 | discontinued |
| 16 | 34109 |
ШТИФТ PIN |
1 | discontinued |
| 17 | 817376T |
ЖГУТ ПРОВОДОВ В СБОРЕ Блок распределителя к катушке зажигания HARNESS ASSEMBLY Distributor Module to Ignition Coil |
1 | discontinued |
| 18 | 817378 |
КАТУШКА COIL |
1 | superseded |
| 19 | 805189 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | discontinued |
| 2 | 808483T3 |
ПРОБКА Распределитель CAP Distributor |
1 | |
| 20 | 90096A1 |
ШПИЛЬКА В СБОРЕ (№10-32 x специальн.) STUD ASSEMBLY (#10-32 x Special) |
2 | |
| 21 | 72821 |
ФИКСАТОР RETAINER |
2 | |
| 22 | 54676 |
ФИКСАТОР Двухпроводной RETAINER Two Wire |
2 | |
| 23 | 32783 |
ФИКСАТОР Трехпроводной RETAINER Three Wire |
2 | |
| 24 | 32784 |
ФИКСАТОР Четырехпроводной RETAINER Four Wire |
2 | discontinued |
| 25 | 816608Q78 |
КОМПЛЕКТ КАБЕЛЯ Зажигание [0K040001] THRU [0K999999] CABLE KIT Ignition [0K040001] THRU [0K999999] |
1 | |
| 25 | 816608A81 |
КОМПЛЕКТ КАБЕЛЯ Зажигание [0L002700] & Up CABLE KIT Ignition [0L002700] & Up |
1 | superseded |
| 26 | 52185 |
ЗАЖИМ CLAMP |
1 | superseded |
| 27 | 805559 |
ВИНТ (0.375-16 x 0.875), нержавеющая сталь SCREW (.375-16 x .875) Stainless Steel |
1 | |
| 28 | 344863 |
ПРОКЛАДКА GASKET |
1 | |
| 29 | 816336 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
8 | superseded |
| 3 | 808491 |
ВИНТ SCREW |
2 | discontinued |
| 30 | 1589424 |
РУКАВ (Общая длина 16.50") HOSE (16.50 Inches Bulk) |
1 | superseded |
| 31 | 807673T |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 32 | 805189 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | discontinued |
| 33 | 97521 |
ЗАЖИМ (СДВОЕННАЯ ТРУБА) [0K040001] THRU [0K999999] CLAMP (DOUBLE TUBE) [0K040001] THRU [0K999999] |
1 | |
| 34 | 98260 |
ВИНТ (0.375-16 x 0.620) [0K040001] THRU [0K999999] SCREW (.375-16 x .620) [0K040001] THRU [0K999999] |
1 | |
| 35 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) [0K040001] THRU [0K999999] WASHER (.406 x .734 x .063) [0K040001] THRU [0K999999] |
1 | |
| 4 | 8084841 |
РОТОР ROTOR |
1 | superseded |
| 5 | 808485T |
ВАЛ В СБОРЕ Главный SHAFT ASSEMBLY Main |
1 | discontinued |
| 6 | 808487 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 7 | 808486 |
ЭКРАН SHIELD |
1 | discontinued |
| 8 | 811639T |
КАТУШКА COIL |
1 | |
| 9 | 811637T |
МОДУЛЬ MODULE |
1 | superseded |
