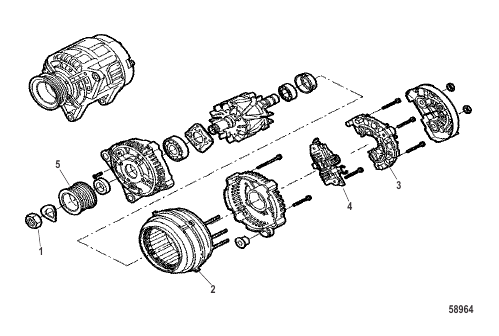

Alternator (8M0112211) Components

Alternator (8M0112211) Components

Parts (5)

#Part NumberDescriptionQtyStatus
1 8M0112254 ГАЙКА M16X1,5
NUT M16X1,5 		1
2 8M0105801 КОРПУС
HOUSING 		1
3 8M0106398 ВЫПРЯМИТЕЛЬНЫЙ МОСТ
RECTIFIER BRIDGE 		1
4 8M0112325 РЕГУЛЯТОР НАПРЯЖЕНИЯ
VOLTAGE REGULATOR 		1
5 8M0112280 ШКИВ
PULLEY 		1
