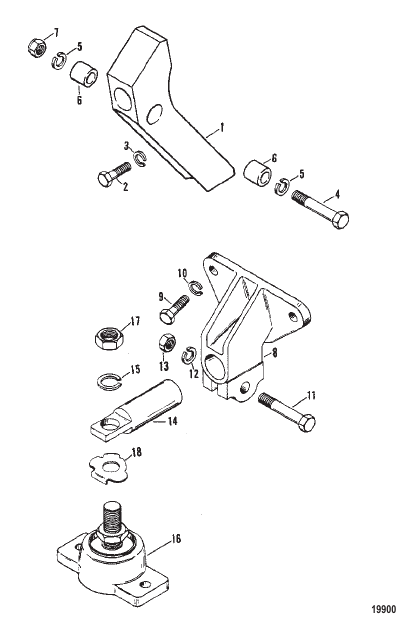

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 62285 |
КРОНШТЕЙН MOUNTING (REAR) BRACKET MOUNTING (REAR) |
2 | disc. |
| 1 | 52158A20 |
КРОНШТЕЙН MOUNTING (REAR) (REMOTE MOUNTING) BRACKET MOUNTING (REAR) (REMOTE MOUNTING) |
1 | |
| 10 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) MOUNTING BRACKET SCREW LOCKWASHER (.375) MOUNTING BRACKET SCREW |
6 | |
| 11 | 37269 |
ВИНТ (0.437-14 x 2.00) CLAMPING-MOUNTING BRACKET SCREW (.437-14 x 2.00) CLAMPING-MOUNTING BRACKET |
2 | |
| 12 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) CLAMPING SCREW LOCKWASHER (.437) CLAMPING SCREW |
2 | |
| 13 | 29553 |
ГАЙКА (0.437-14) CLAMPING SCREW NUT (.437-14) CLAMPING SCREW |
2 | disc. |
| 14 | 66166A4 |
ЦАПФА ADJUSTING-MOUNTING BRACKET TRUNNION ADJUSTING-MOUNTING BRACKET |
4 | |
| 15 | 68102 |
СТОПОРНАЯ ШАЙБА (0.750) MOUNTING BRACKET LOCKWASHER (.750) MOUNTING BRACKET |
4 | |
| 16 | 66284A2 |
БАЗА В СБОРЕ ENGINE MOUNT BASE ASSEMBLY ENGINE MOUNT |
4 | |
| 17 | 20739 |
ГАЙКА (.750-16) JAM-ENGINE MOUNT BASE NUT (.750-16) JAM-ENGINE MOUNT BASE |
8 | |
| 18 | 66658 |
ЛЕПЕСТКОВАЯ ШАЙБА ENGINE MOUNT BASE TAB WASHER ENGINE MOUNT BASE |
4 | |
| 2 | 47462 |
ВИНТ (0.437-14 x 1.250) MOUNTING BRACKET TO TRANSMISSION (1-1/4") SCREW (.437-14 x 1.250) MOUNTING BRACKET TO TRANSMISSION (1-1/4") |
4 | |
| 3 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) MOUNTING BRACKET SCREW LOCKWASHER (.437) MOUNTING BRACKET SCREW |
4 | |
| 4 | 47654 |
ВИНТ (0.437-14 x 2.750) CLAMPING-MOUNTING BRACKET SCREW (.437-14 x 2.750) CLAMPING-MOUNTING BRACKET |
2 | disc. |
| 5 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) CLAMPING SCREW LOCKWASHER (.437) CLAMPING SCREW |
2 | |
| 6 | 47528 |
ЗАЖИМ ADJUSTING TRUNNION SCREW CLAMP ADJUSTING TRUNNION SCREW |
4 | |
| 7 | 29553 |
ГАЙКА (0.437-14) SCREW CLAMPING NUT (.437-14) SCREW CLAMPING |
2 | disc. |
| 8 | 71128A2 |
КРОНШТЕЙН MOUNTING - ENGINE (FRONT) BRACKET MOUNTING - ENGINE (FRONT) |
2 | |
| 9 | 68101 |
ВИНТ (0.375-16 x 1.375) MOUNTING BRACKET SCREW (.375-16 x 1.375) MOUNTING BRACKET |
5 | |
| 9 | 34354 |
ВИНТ (0.375-16 x 1.50) MOUNTING BRACKET SCREW (.375-16 x 1.50) MOUNTING BRACKET |
1 |
