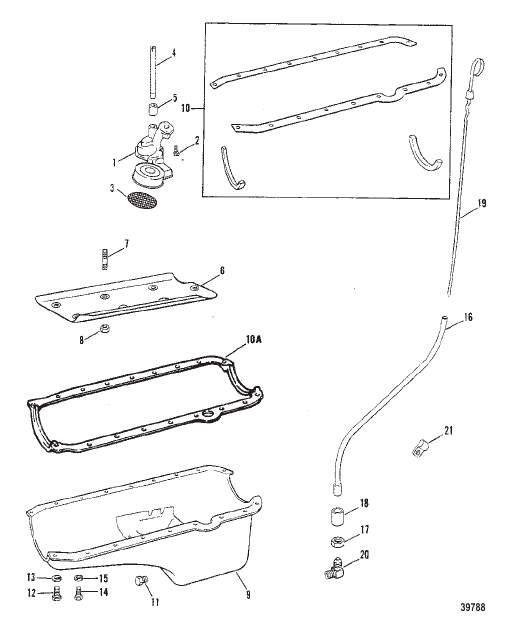

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 35352 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | superseded |
| 10 | 90458A1 |
КОМПЛЕКТ ПРОКЛАДОК OIL PAN GASKET SET OIL PAN |
1 | disc. |
| 10A | 13865 |
ПРОКЛАДКА OIL PAN-NOT INCLUDED WITH GASKET SET GASKET OIL PAN-NOT INCLUDED WITH GASKET SET |
1 | superseded |
| 11 | 87543 |
ПРОБКА PIPE-OIL PAN DRAIN PLUG PIPE-OIL PAN DRAIN |
1 | superseded |
| 12 | 55714 |
ВИНТ (7/8") OIL PAN (5/16-18 X 7/8") SCREW (7/8 In.) OIL PAN (5/16-18 X 7/8") |
4 | disc. |
| 12 | 54523 |
ВИНТ (0.312-18 x 1.00) OIL PAN SCREW (.312-18 x 1.00) OIL PAN |
4 | disc. |
| 13 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) OIL PAN SCREW LOCKWASHER (.312) OIL PAN SCREW |
4 | superseded |
| 14 | 55715 |
ВИНТ (0.250-20 x 0.880) OIL PAN SCREW (.250-20 x .880) OIL PAN |
8 | |
| 15 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь OIL PAN SCREW LOCKWASHER (.250) Stainless Steel OIL PAN SCREW |
8 | |
| 16 | 86890A2 |
ТРУБА OIL LEVEL GAUGE TUBE OIL LEVEL GAUGE |
1 | disc. |
| 17 | 47626 |
ГАЙКА OIL LEVEL GAUGE TUBE NUT OIL LEVEL GAUGE TUBE |
1 | disc. |
| 18 | 78039 |
СОЕДИНИТЕЛЬНАЯ МУФТА OIL LEVEL GAUGE TUBE COUPLING OIL LEVEL GAUGE TUBE |
1 | disc. |
| 19 | 87353A2 |
УКАЗАТЕЛЬ OIL LEVEL-DIPSTICK GAUGE OIL LEVEL-DIPSTICK |
1 | superseded |
| 19 | 49457A1 |
УКАЗАТЕЛЬ OIL LEVEL-DIPSTICK (HORIZONTAL MOUNTING) GAUGE OIL LEVEL-DIPSTICK (HORIZONTAL MOUNTING) |
1 | superseded |
| 2 | N.S.S. |
Не продается отдельно BOLT, OIL PUMP TO CYLINDER BLOCK (GM #3892678) Not Sold Separate BOLT, OIL PUMP TO CYLINDER BLOCK (GM #3892678) |
1 | |
| 20 | 47625 |
КОЛЕНЧАТЫЙ OIL LEVEL GAUGE TUBE TO OIL PAN ELBOW OIL LEVEL GAUGE TUBE TO OIL PAN |
1 | disc. |
| 21 | 92338 |
ЗАЖИМ OIL LEVEL TUBE CLIP OIL LEVEL TUBE |
1 | disc. |
| 3 | 35354 |
ЭКРАН В СБОРЕ OIL PUMP SCREEN ASSEMBLY OIL PUMP |
1 | disc. |
| 4 | 36184 |
ВАЛ OIL PUMP TO DISTRIBUTOR SHAFT OIL PUMP TO DISTRIBUTOR |
1 | |
| 5 | 36183 |
ФИКСАТОР OIL PUMP SHAFT RETAINER OIL PUMP SHAFT |
1 | |
| 6 | 98602 |
ОТРАЖАТЕЛЬНЫЙ ЩИТОК OIL PAN (CYLINDER BLOCK) BAFFLE OIL PAN (CYLINDER BLOCK) |
1 | superseded |
| 7 | 54790 |
ШПИЛЬКА OIL PAN BAFFLE STUD OIL PAN BAFFLE |
5 | |
| 8 | 37500 |
ГАЙКА (3/8-16) OIL PAN BAFFLE STUD NUT (3/8-16) OIL PAN BAFFLE STUD |
5 | |
| 9 | 87758A1 |
ПОДДОН В СБОРЕ Масло PAN ASSEMBLY Oil |
1 | disc. |
| 9 | 13840A1 |
ПОДДОН В СБОРЕ Масло PAN ASSEMBLY Oil |
1 | superseded |
