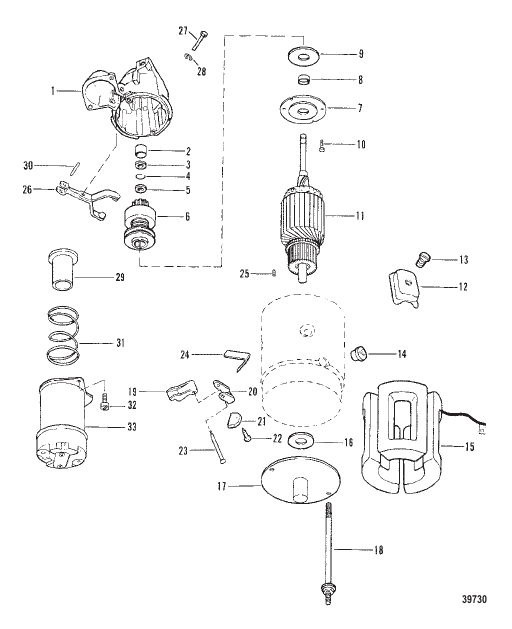

STARTER MOTOR
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 76965A3 |
СТАРТЕР В СБОРЕ L.H. ROTATION (DELCO REMY #1109485) STARTER MOTOR ASSEMBLY L.H. ROTATION (DELCO REMY #1109485) |
1 | superseded |
| - | 79604A3 |
СТАРТЕР В СБОРЕ R.H. ROTATION (DELCO REMY #1109484) STARTER MOTOR ASSEMBLY R.H. ROTATION (DELCO REMY #1109484) |
1 | superseded |
| 1 | 79206 |
КОРПУС В СБОРЕ Приводной конец HOUSING ASSEMBLY Drive End |
1 | discontinued |
| 10 | 75659 |
ВИНТ BEARING PLATE SCREW BEARING PLATE |
2 | discontinued |
| 11 | 68606 |
ЯКОРЬ (L.H. ROTATION) ARMATURE (L.H. ROTATION) |
1 | discontinued |
| 11 | 68607 |
ЯКОРЬ (R.H. ROTATION) ARMATURE (R.H. ROTATION) |
1 | discontinued |
| 12 | N.S.S. |
Не продается отдельно SHOE, POLE-FIELD COIL (DELCO REMY #810601) Not Sold Separate SHOE, POLE-FIELD COIL (DELCO REMY #810601) |
4 | |
| 13 | N.S.S. |
Не продается отдельно SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396) Not Sold Separate SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396) |
4 | |
| 14 | N.S.S. |
Не продается отдельно GROMMET, FIELD COIL-FIELD FRAME (DELCO REMY #1846097) Not Sold Separate GROMMET, FIELD COIL-FIELD FRAME (DELCO REMY #1846097) |
1 | |
| 15 | N.S.S. |
Не продается отдельно FIELD COIL (L.H. ROTATION) (DELCO REMY #1970467) Not Sold Separate FIELD COIL (L.H. ROTATION) (DELCO REMY #1970467) |
1 | |
| 15 | 75664 |
КАТУШКА В СБОРЕ FIELD COIL(R.H. ROTATION) COIL ASSEMBLY FIELD COIL(R.H. ROTATION) |
1 | discontinued |
| 16 | 33258 |
ШАЙБА Кожа COMMUTATOR END FRAME WASHER Leather COMMUTATOR END FRAME |
1 | discontinued |
| 17 | 79211 |
РАМА COMMUTATOR END-LOWER FRAME COMMUTATOR END-LOWER |
1 | discontinued |
| 18 | N.S.S. |
Не продается отдельно BOLT, THRU (DELCO REMY #1941111) Not Sold Separate BOLT, THRU (DELCO REMY #1941111) |
1 | |
| 18 | N.S.S. |
Не продается отдельно BOLT, THRU (DELOC REMY #1939970) Not Sold Separate BOLT, THRU (DELOC REMY #1939970) |
1 | |
| 19 | 33284 |
ДЕРЖАТЕЛЬ INSULATED-FIELD FRAME BRUSH HOLDER INSULATED-FIELD FRAME BRUSH |
2 | discontinued |
| 2 | 33369 |
ВТУЛКА DRIVE END HOUSING BUSHING DRIVE END HOUSING |
1 | discontinued |
| 20 | 33283 |
ДЕРЖАТЕЛЬ FIELD FRAME BRUSH GROUND HOLDER FIELD FRAME BRUSH GROUND |
2 | discontinued |
| 21 | 33270 |
ЩЕТКА FIELD FRAME BRUSH FIELD FRAME |
4 | |
| 22 | N.S.S. |
Не продается отдельно SCREW, BRUSH LEAD (DELCO REMY #1967747) Not Sold Separate SCREW, BRUSH LEAD (DELCO REMY #1967747) |
2 | |
| 22 | N.S.S. |
Не продается отдельно SCRWE, BRUSH LEAD (DELCO REMY #443527) Not Sold Separate SCRWE, BRUSH LEAD (DELCO REMY #443527) |
2 | |
| 23 | 33294 |
ОПОРА GROUND AND INSULATED HOLDERS SUPPORT GROUND AND INSULATED HOLDERS |
2 | discontinued |
| 24 | 33285 |
ПРУЖИНА FIELD FRAME BRUSH SPRING FIELD FRAME BRUSH |
4 | discontinued |
| 25 | N.S.S. |
Не продается отдельно PIN, DOWEL-FIELD FRAME (DELCO REMY #809593) Not Sold Separate PIN, DOWEL-FIELD FRAME (DELCO REMY #809593) |
1 | |
| 26 | 33297 |
РЫЧАГ SHIFT LEVER SHIFT |
1 | discontinued |
| 27 | N.S.S. |
Не продается отдельно STUD, SHIFT LEVER (DELCO REMY #1814529) Not Sold Separate STUD, SHIFT LEVER (DELCO REMY #1814529) |
1 | |
| 28 | 68615 |
ШАЙБА SHIFT LEVER STUD WASHER SHIFT LEVER STUD |
1 | discontinued |
| 29 | 33317 |
ПЛУНЖЕР SHIFT LEVER PLUNGER SHIFT LEVER |
1 | discontinued |
| 3 | 33292 |
ВТУЛКА THRUST COLLAR THRUST |
1 | superseded |
| 30 | 79207 |
ШТИФТ PLUNGER TO SHIFT LEVER PIN PLUNGER TO SHIFT LEVER |
1 | discontinued |
| 31 | 46889 |
ПРУЖИНА PLUNGER RETURN SPRING PLUNGER RETURN |
1 | discontinued |
| 32 | N.S.S. |
Не продается отдельно SCREW, SOLENOID SWITCH (DELCO REMY #9413260) Not Sold Separate SCREW, SOLENOID SWITCH (DELCO REMY #9413260) |
2 | |
| 33 | 33261 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SOLENOID SWITCH ASSEMBLY |
1 | discontinued |
| 4 | 33290 |
КОЛЬЦО Стопор PINION STOP COLLAR RING Retaining PINION STOP COLLAR |
1 | discontinued |
| 5 | 33291 |
ВТУЛКА PINION STOP 1 COLLAR PINION STOP 1 |
1 | discontinued |
| 6 | 68608 |
ПРИВОД В СБОРЕ CLUTCH (L.H. ROTATION) DRIVE ASSEMBLY CLUTCH (L.H. ROTATION) |
1 | discontinued |
| 6 | 68609 |
ПРИВОД В СБОРЕ CLUTCH (R.H.ROTATION) DRIVE ASSEMBLY CLUTCH (R.H.ROTATION) |
1 | discontinued |
| 7 | 79396 |
ПЛАСТИНА BEARING PLATE BEARING |
1 | discontinued |
| 8 | 71694 |
ВТУЛКА BEARING PLATE BUSHING BEARING PLATE |
1 | discontinued |
| 9 | 68614 |
ШАЙБА BEARING PLATE WASHER BEARING PLATE |
1 | discontinued |
| NS | 26484 |
ГАЙКА (0.312-18) SHIFT LEVER STUD NUT (.312-18) SHIFT LEVER STUD |
1 | superseded |
