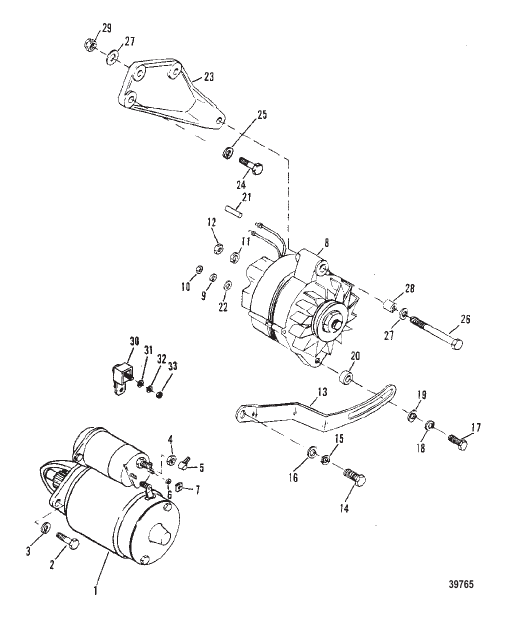

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 76965A3 |
СТАРТЕР В СБОРЕ L.H. ROTATION) (DELCO REMY #1109485) STARTER MOTOR ASSEMBLY L.H. ROTATION) (DELCO REMY #1109485) |
1 | superseded |
| 1 | 79604A3 |
СТАРТЕР В СБОРЕ R.H. ROTATION (DELCO REMY #1109484) STARTER MOTOR ASSEMBLY R.H. ROTATION (DELCO REMY #1109484) |
1 | superseded |
| 10 | 79989 |
ГАЙКА (№10-24), нержавеющая сталь ALTERNATOR TERMINAL NUT (#10-24) Stainless Steel ALTERNATOR TERMINAL |
1 | |
| 11 | 21272 |
СТОПОРНАЯ ШАЙБА (0.250) ALTERNATOR TERMINAL LOCKWASHER (.250) ALTERNATOR TERMINAL |
1 | |
| 12 | 64015 |
ГАЙКА (0.250-20) ALTERNATOR TERMINAL NUT (.250-20) ALTERNATOR TERMINAL |
1 | |
| 13 | 85013 |
СКОБА ALTERNATOR ADJUSTING BRACE ALTERNATOR ADJUSTING |
1 | superseded |
| 14 | 26487 |
ВИНТ (0.375-16 x 1.12) ALTERNATOR BRACE SCREW (.375-16 x 1.12) ALTERNATOR BRACE |
1 | disc. |
| 15 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) ALTERNATOR BRACE SCREW LOCKWASHER (.375) ALTERNATOR BRACE SCREW |
1 | |
| 16 | 34714 |
ШАЙБА ALTERNATOR BRACE SCREW WASHER ALTERNATOR BRACE SCREW |
1 | |
| 17 | 74824 |
ВИНТ (0.312-18 x 1.250) ALTERNATOR BRACE SCREW (.312-18 x 1.250) ALTERNATOR BRACE |
1 | |
| 18 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) ALTERNATOR BRACE SCREW LOCKWASHER (.312-24) ALTERNATOR BRACE SCREW |
1 | |
| 19 | 26168 |
ШАЙБА ALTERNATOR BRACE SCREW WASHER ALTERNATOR BRACE SCREW |
1 | |
| 2 | 47462 |
ВИНТ (0.437-14 x 1.250) STARTER MOTOR SCREW (.437-14 x 1.250) STARTER MOTOR |
2 | |
| 20 | 90523 |
ПРОСТАВКА (0.420 x 0.750 x 0.440), с кадмиевым покрытием ALTERNATOR BRACE SCREW SPACER (.420 x .750 x .440) Cad Plate ALTERNATOR BRACE SCREW |
1 | |
| 21 | 5790811 |
РУКАВ (Общая длина 10.00") ALTERNATOR LEADS SLEEVE (10.00 Inches Bulk) ALTERNATOR LEADS |
2 | |
| 22 | 96457 |
ШАЙБА Фенольный (0.27 x 0.81 x 0.062) ALTERNATOR TERMINAL WASHER Phenolic (.27 x .81 x .062) ALTERNATOR TERMINAL |
1 | |
| 23 | 93175T |
КРОНШТЕЙН ALTERNATOR BRACKET ALTERNATOR |
1 | disc. |
| 24 | 37612 |
ВИНТ (0.375-16 x 1.250) ALTERNATOR BRACKET SCREW (.375-16 x 1.250) ALTERNATOR BRACKET |
3 | |
| 25 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) ALTERNATOR BRACKET SCREW LOCKWASHER (.375) ALTERNATOR BRACKET SCREW |
3 | |
| 26 | 48308 |
ВИНТ (0.375-24 x 3.750) ALTERNATOR SCREW (.375-24 x 3.750) ALTERNATOR |
1 | |
| 27 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) ALTERNATOR BRACKET SCREW WASHER (.406 x .734 x .063) ALTERNATOR BRACKET SCREW |
2 | |
| 28 | 33186 |
ВТУЛКА ALTERNATOR BRACKET SCREW BUSHING ALTERNATOR BRACKET SCREW |
1 | |
| 29 | 23161 |
ГАЙКА (.375-24) ALTERNATOR BRACKET SCREW NUT (.375-24) ALTERNATOR BRACKET SCREW |
1 | |
| 3 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) STARTER MOTOR SCREW LOCKWASHER (.437) STARTER MOTOR SCREW |
2 | |
| 30 | 79023A91 |
ПРЕДОХРАНИТЕЛЬ В СБОРЕ 90 ампер NOT USED ON LATER ENGINES FUSE ASSEMBLY 90 Ampere NOT USED ON LATER ENGINES |
1 | superseded |
| 31 | 96457 |
ШАЙБА Фенольный (0.27 x 0.81 x 0.062) FUSE TERMINAL NOT USED ON LATER ENGINES WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL NOT USED ON LATER ENGINES |
1 | |
| 32 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь FUSE TERMINAL NOT USED ON LATER ENGINES LOCKWASHER (.250) Stainless Steel FUSE TERMINAL NOT USED ON LATER ENGINES |
1 | |
| 33 | 21825 |
ГАЙКА (0.250-28) FUSE TERMINAL NOT USED ON LATER ENGINES NUT (.250-28) FUSE TERMINAL NOT USED ON LATER ENGINES |
1 | |
| 4 | 32219 |
ГАЙКА (.375-16) STARTER TERMINAL NUT (.375-16) STARTER TERMINAL |
1 | |
| 5 | 79695 |
ЧЕХОЛ Изолятор – черный STARTER TERMINAL BOOT Insulator - Black STARTER TERMINAL |
1 | superseded |
| 6 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь STARTER TERMINAL LOCKWASHER (#8) Stainless Steel STARTER TERMINAL |
1 | |
| 7 | 26419 |
ГАЙКА (№8-32), латунь STARTER TERMINAL NUT (#8-32) Brass STARTER TERMINAL |
1 | |
| 8 | 92497A3 |
ГЕНЕРАТОР В СБОРЕ (55 ампер) (55 AMP) ALTERNATOR ASSEMBLY (55 Ampere) (55 AMP) |
1 | superseded |
| 9 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь ALTERNATOR TERMINAL LOCKWASHER (#10) Stainless Steel ALTERNATOR TERMINAL |
1 |
