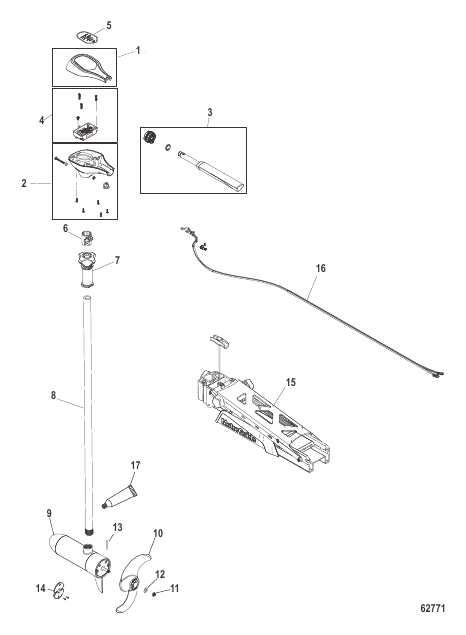

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0124138 |
HEAD ASSEMBLY TOP Black Includes Cover Screws
|
1 |
disc.
|
| 1 |
8M0124144 |
HEAD ASSEMBLY TOP White Includes Cover Screws
|
1 |
disc.
|
| 10 |
8M4002641 |
PROPELLER KIT 3 Blade with Wrench
|
1 |
|
| 11 |
8M0105503 |
HARDWARE KIT, PROPELLER
|
1 |
disc.
|
| 12 |
NSS |
NOT SOLD SEPARATE WASHER
|
1 |
|
| 13 |
MBR10202T |
PIN Prop Drive (.156 x 1.00)
|
1 |
|
| 14 |
8M0105554 |
ANODE
|
1 |
disc.
|
| 15 |
8M0116497 |
BOW MOUNT FW Use With 59 Inch or Shorter Shaft
|
1 |
disc.
|
| 15 |
8M0131206 |
BOW MOUNT SW Use With 59 Inch or Shorter Shaft
|
1 |
disc.
|
| 15 |
8M0116498 |
BOW MOUNT FW, XL Use With 60 Inch or Greater Shaft
|
1 |
disc.
|
| 15 |
8M0131207 |
BOW MOUNT SW, XL Use With 60 Inch or Greater Shaft
|
1 |
disc.
|
| 16 |
8M0058717 |
CABLE ASSEMBLY
|
1 |
disc.
|
| 17 |
8M0119628 |
HYSOL EPOXY ADHESIVE 50ml
|
1 |
|
| 2 |
8M0124139 |
HEAD ASSEMBLY BASE Black
|
1 |
disc.
|
| 2 |
8M0124145 |
HEAD ASSEMBLY BASE White
|
1 |
disc.
|
| 3 |
8M0124143 |
HANDLE ASSEMBLY
|
1 |
|
| 4 |
8M0124141 |
CONTROL BOARD Variable Speed
|
1 |
|
| 5 |
8M0124167 |
DECAL 80 lb. FW
|
1 |
disc.
|
| 5 |
8M0124168 |
DECAL 80 lb. SW
|
1 |
|
| 5 |
8M0124169 |
DECAL 105 lb. SW
|
1 |
disc.
|
| 6 |
8M4002640 |
COLLAR, Depth 1.25 inch
|
1 |
disc.
|
| 7 |
8M0124148 |
FRICTION COLLAR
|
1 |
disc.
|
| 8 |
8M0127650 |
COLUMN 50 INCH, FW
|
1 |
|
| 8 |
8M0127651 |
COLUMN 50 INCH, SW
|
1 |
disc.
|
| 8 |
8M0086304 |
COLUMN (60 Inches) White
|
1 |
|
| 9 |
8M0096755 |
LOWER UNIT ASSEMBLY 80#, Fresh Water
|
1 |
|
| 9 |
8M0096757 |
LOWER UNIT ASSEMBLY 80#, Salt Water
|
1 |
superseded
|
| 9 |
8M0096760 |
LOWER UNIT ASSEMBLY 105#, Salt Water
|
1 |
superseded
|
