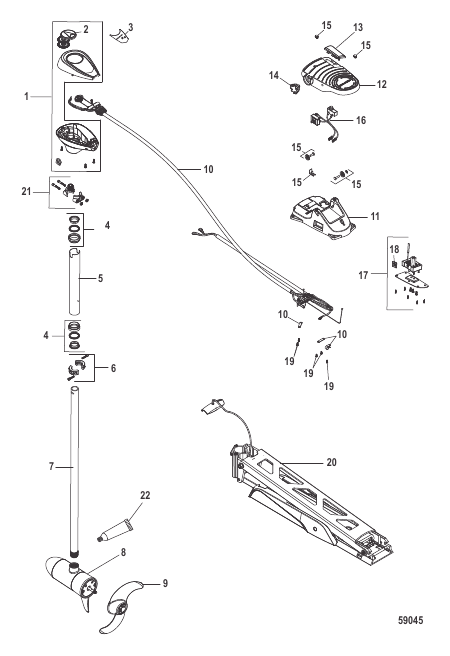

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0122083 |
CABLE KIT, Steering
|
1 |
disc.
|
| - |
8M0122084 |
CABLE KIT, Steering XL
|
1 |
|
| 1 |
8M0103990 |
HEAD ASSEMBLY
|
1 |
disc.
|
| 10 |
8M0103991 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| 10 |
8M0110002 |
HARNESS ASSEMBLY XL
|
1 |
|
| 10 |
8M0110001 |
HARNESS ASSEMBLY Sonar
|
1 |
disc.
|
| 10 |
8M0110003 |
HARNESS ASSEMBLY Sonar XL
|
1 |
disc.
|
| 11 |
8M0089421 |
PEDEL KIT
|
1 |
superseded
|
| 12 |
NSS |
NOT SOLD SEPARATE TREAD
|
1 |
|
| 13 |
8M0089422 |
BUTTON KIT
|
1 |
|
| 14 |
NSS |
NOT SOLD SEPARATE SPEED KNOB
|
1 |
|
| 15 |
8M0089417 |
HARDWARE KIT
|
1 |
|
| 16 |
8M0103993 |
HARNESS ASSEMBLY
|
1 |
|
| 17 |
8M0103995 |
BOARD ASSEMBLY 12 Volt
|
1 |
disc.
|
| 17 |
8M0114173 |
BOARD ASSEMBLY 24 Volt
|
1 |
disc.
|
| 17 |
8M0103997 |
BOARD ASSEMBLY 36 Volt
|
1 |
disc.
|
| 18 |
8M0103992 |
BUTTON
|
1 |
|
| 19 |
8M0089418 |
SCREW KIT
|
1 |
|
| 2 |
8M0103989 |
TOP COVER INDICATOR KIT
|
1 |
disc.
|
| 20 |
8M3003299 |
BOW MOUNT FW Use With 59 Inch or Shorter Shaft
|
1 |
superseded
|
| 20 |
8M0131206 |
BOW MOUNT SW Use With 59 Inch or Shorter Shaft
|
1 |
disc.
|
| 20 |
8M3003314 |
BOW MOUNT FW, XL Use With 60 Inch or Greater Shaft
|
1 |
superseded
|
| 20 |
8M0131207 |
BOW MOUNT SW, XL Use With 60 Inch or Greater Shaft
|
1 |
disc.
|
| 21 |
8M0089413 |
PINION ASSEMBLY
|
1 |
|
| 22 |
8M0119628 |
HYSOL EPOXY ADHESIVE 50ml
|
1 |
|
| 3 |
8M0109998 |
DECAL SET
|
1 |
|
| 4 |
8M0109999 |
BEARING ASSEMBLY
|
2 |
|
| 5 |
8M0089416 |
TUBE
|
1 |
|
| 5 |
8M0110005 |
TUBE XL
|
1 |
disc.
|
| 6 |
8M0089412 |
CLAMP ASSEMBLY
|
1 |
|
| 7 |
8M0111093 |
COLUMN 36 Inch
|
1 |
|
| 7 |
8M0111094 |
COLUMN 45 Inch
|
1 |
|
| 7 |
8M0111095 |
COLUMN 50 Inch
|
1 |
|
| 7 |
8M0111096 |
COLUMN 60 Inch
|
1 |
disc.
|
| 8 |
8M0096746 |
LOWER UNIT ASSEMBLY 55#, Fresh Water
|
1 |
|
| 8 |
8M0096747 |
LOWER UNIT ASSEMBLY 55#, Fresh Water, Sonar
|
1 |
|
| 8 |
8M0096755 |
LOWER UNIT ASSEMBLY 80#, Fresh Water
|
1 |
|
| 8 |
8M0096756 |
LOWER UNIT ASSEMBLY 80#, Fresh Water, Sonar
|
1 |
disc.
|
| 8 |
8M0096758 |
LOWER UNIT ASSEMBLY 105#, Fresh Water
|
1 |
|
| 8 |
8M0096759 |
LOWER UNIT ASSEMBLY 105#, Fresh Water, Sonar
|
1 |
|
| 9 |
8M0028330 |
PROP KIT Black, Safari
|
1 |
disc.
|
