| # | Part Number | Description | Qty | Status |
|---|
| 1 |
811702 |
PUMP KIT
|
1 |
disc.
|
| 10 |
813445 |
CAP KIT Reservoir Reservoir
|
1 |
disc.
|
| 11 |
813446 |
SCREW (4 Pieces)
|
1 |
disc.
|
| 12 |
813447 |
MOTOR KIT (No Longer Available - See NOTE)
|
1 |
disc.
|
| 13 |
813448 |
END CAP
|
1 |
disc.
|
| 14 |
813449A1 |
ARMATURE
|
1 |
disc.
|
| 15 |
813450 |
THRUST WASHER KIT Thrust
|
1 |
disc.
|
| 16 |
813451 |
SHELL AND MAGNET KIT
|
1 |
disc.
|
| 17 |
813452 |
END FRAME KIT (No Longer Available - See NOTE)
|
1 |
disc.
|
| 18 |
813453 |
BOLT AND NUT KIT
|
1 |
disc.
|
| 19 |
819638 |
O-RING
|
1 |
superseded
|
| 2 |
823085 |
MANIFOLD KIT
|
1 |
disc.
|
| 3 |
813436 |
SCREW KIT (4 Pieces)
|
1 |
disc.
|
| 4 |
813437 |
DRIVESHAFT Drive
|
1 |
disc.
|
| 5 |
811697 |
SCREW AND PIN KIT
|
1 |
disc.
|
| 6 |
813439A2 |
SEAL KIT
|
1 |
superseded
|
| 7 |
813434A1 |
RESERVOIR
|
1 |
disc.
|
| 8 |
813435 |
PLUG KIT
|
1 |
superseded
|
| 9 |
811698 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| _ |

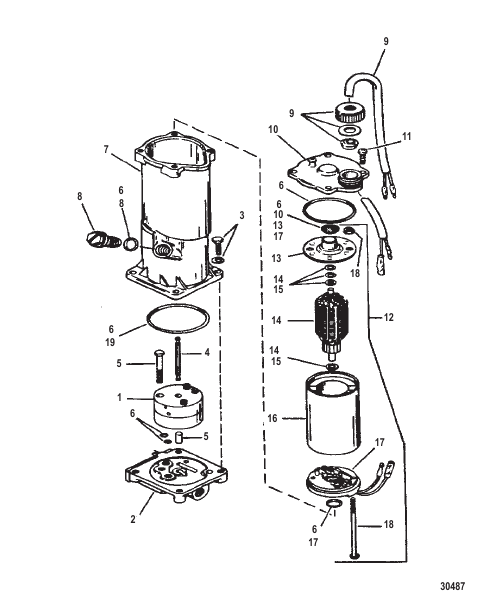

819480A1 |
PUMP/MOTOR ASSEMBLY (No Longer Available - See NOTE)
|
1 |
disc.
|
