| # | Part Number | Description | Qty | Status |
|---|
| 1 |
F5H179 |
BRACKET KIT Trailering
|
1 |
superseded
|
| 10 |
F654618 |
O-RING
|
1 |
|
| 11 |
FA654015 |
PISTON ASSEMBLY (No Longer Available - Order FS654381)
|
1 |
disc.
|
| 12 |
F654984 |
O-RING
|
1 |
|
| 13 |
F694541-2 |
PUMP/MOTOR ASSEMBLY (No Longer Available - Order 853515A1) (See Pump/Motor Assembly (F694541-2) Section For Parts Breakdown)
|
1 |
disc.
|
| 14 |
F660758 |
LINE Hydraulic (Top Tilt Cylinder)
|
1 |
disc.
|
| 15 |
F660253 |
LINE Hydraulic (Bottom Trim Cylinder
|
1 |
disc.
|
| 16 |
F660754 |
LINE Hydraulic (Bottom Tilt Cylinder)
|
1 |
disc.
|
| 17 |
F7053 |
NUT (.625-18) Brass (.625-18)
|
2 |
disc.
|
| 18 |
F449545-2 |
HOUSING Cylinder
|
1 |
superseded
|
| 19 |
F449632 |
SHAFT Trim Mount
|
1 |
disc.
|
| 2 |
FS654381 |
CYLINDER ASSEMBLY Tilt (See Tilt Cylinder Assembly Section For Parts Breakdown)
|
1 |
superseded
|
| 20 |
F40278 |
O-RING
|
2 |
|
| 21 |
F449010 |
CLYINDER
|
1 |
superseded
|
| 22 |
F449278 |
O-RING
|
1 |
|
| 23 |
FA449015 |
PISTON ASSEMBLY
|
1 |
superseded
|
| 24 |
F449342 |
O-RING
|
1 |
|
| 25 |
817802A2 |
COVER ASSEMBLY (A449149-2)
|
1 |
superseded
|
| 26 |
F1734 |
SCREW AND LOCKWASHER (.250-20 x .500)
|
2 |
superseded
|
| 27 |
F449354 |
BRACKET Thrust
|
1 |
disc.
|
| 28 |
F1959 |
SCREW (.25-20 X 1.75) (.250-20 x 1.750)
|
5 |
disc.
|
| 29 |
F1877 |
TIE STRAP
|
2 |
superseded
|
| 3 |
F525629 |
PIN Hitch
|
1 |
disc.
|
| 30 |
F449362 |
BUSHING Lower Shaft
|
2 |
|
| 31 |
F660254 |
LINE Hydraulic (Top Trim Cylinder)
|
1 |
disc.
|
| 32 |
F8096 |
LOCKWASHER (.312)
|
3 |
superseded
|
| 33 |
F1822 |
SCREW (.312-18 x .875)
|
2 |
superseded
|
| 34 |
F50342-1 |
SEAL
|
1 |
superseded
|
| 35 |
F17518 |
CAP Fill
|
1 |
disc.
|
| 36 |
F660273 |
STUD
|
1 |
superseded
|
| 37 |
F1515 |
NUT (.312-18)
|
1 |
superseded
|
| 38 |
F17500 |
SPRING SET (2 Per Set)
|
1 |
superseded
|
| 39 |
F17611 |
BRUSH SET
|
1 |
superseded
|
| 4 |
F1931 |
NUT (.500-20)
|
2 |
superseded
|
| 40 |
F1966 |
PLUG
|
1 |
disc.
|
| 41 |
818055A3 |
HOUSING ASSEMBLY Trim Cylinder (2A449545-2) (See Housing Assembly-Trim Cylinder (818055A3) Section For Parts Breakdown)
|
1 |
disc.
|
| 42 |
F2A654983 |
BAND ASSEMBLY Trim Cylinder
|
1 |
|
| 5 |
F1710 |
WASHER
|
2 |
disc.
|
| 6 |
F1711 |
WASHER Bowed
|
2 |
disc.
|
| 7 |
F449889 |
SHAFT Shock Upper
|
1 |
disc.
|
| 8 |
F178344 |
BUSHING
|
1 |
disc.
|
| 9 |
FA654055 |
HEAD ASSEMBLY (No Longer Available - Order FS654381)
|
1 |
disc.
|
| _ |
F5H150-1 |

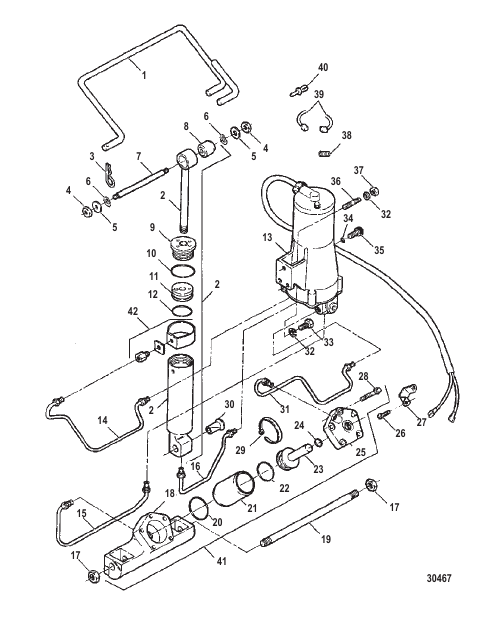

TRIM AND TILT ASSEMBLY (4 Cylinder Models) (Electrical Components Included In Trim & Tilt Assembly - See Electrical Components (F5H149-1 & F5H150-1) Section For Parts Breakdown)
|
1 |
superseded
|
