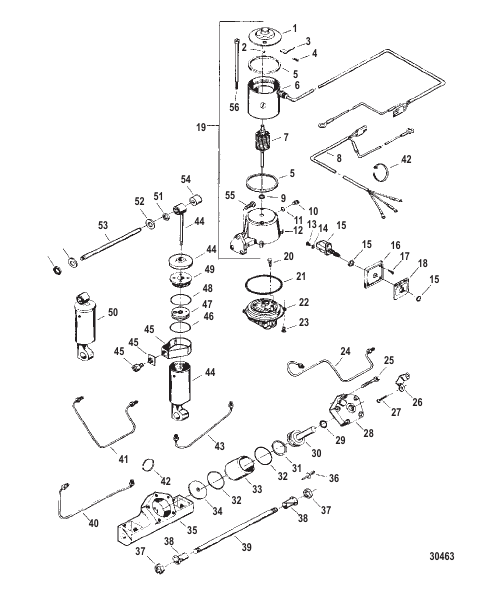

TRIM & TILT ASSEMBLY (F5H149 & F5H150)

Parts (58)

#Part NumberDescriptionQtyStatus
1 F17543   HEAD ASSEMBLY 1 superseded
10 F17518   CAP Fill 1 disc.
11 F17510   O-RING 1 superseded
12 F17505   RESERVOIR/BRACKET ASSEMBLY 1 disc.
13 F1280   SCREW (#8-32 x .250) 3 superseded
14 F8078   LOCKWASHER (#8 Internal) 3 superseded
15 F299449-4   SWITCH ASSEMBLY 1 disc.
16 F413420   RETAINER Switch 1 disc.
17 F1934   SCREW (#6 x .500) 4 disc.
18 F449181   PLATE Trim Switch 1 disc.
19 F17563   MOTOR/RESERVOIR ASSEMBLY (Reference Parts Bulletin 96-11) 1 superseded
2 F17539   BALL (.156) 1 disc.
20 F1203   SCREW (.250-20 x .875) 1 superseded
21 F17564   VALVE BODY ASSEMBLY (Reference Parts Bulletin 96-11) 1 superseded
22 F17522   O-RING 1 superseded
23 F1310   SCREW (#10-24 x .625) 4 disc.
24 F449254   LINE Hydraulic (Trim Cylinder Upper) 1 disc.
25 F1959   SCREW (.25-20 X 1.75) (.250-20 x 1.750) 5 disc.
26 F449354   BRACKET Thrust 1 disc.
27 F1734   SCREW AND LOCKWASHER (.250-20 x .500) 2 superseded
28 FA449149   COVER ASSEMBLY 1 superseded
29 F449342   O-RING 1
3 F17504   BRUSH SET (2 Per Set) 1 superseded
30 FA449015   PISTON ASSEMBLY 1 superseded
31 F449278   O-RING 1
32 F40278   O-RING 2
33 F449010   CLYINDER 1 superseded
34 FA449799   PLATE ASSEMBLY (Early Models Only) 1 disc.
35 F449545-2   HOUSING Trim Cylinder 1 superseded
36 F1966   PLUG 1 disc.
37 F1963   NUT (.625-18) 2 superseded
38 F178362   BUSHING 2 superseded
39 F449632   SHAFT 1 disc.
4 F17500   SPRING SET (2 Per Set) 1 superseded
40 F449253-1   LINE Hydraulic (Trim Cylinder Lower) 1 disc.
41 F449758   LINE Hydraulic (Lift Cylinder Upper) 1 disc.
42 F1877   TIE STRAP 4 superseded
43 F449754-1   LINE Hydraulic (Lift Cylinder Lower) 1 disc.
44 FA17559   CYLINDER ASSEMBLY Lift 1 superseded
45 F17577   BAND ASSEMBLY 1 superseded
46 F17561-1   O-RING 1 superseded
47 F17562-1   PISTON ASSEMBLY 1 superseded
48 F17528   O-RING 1 superseded
49 F17560   HEAD ASSEMBLY 1 superseded
5 F17557   GASKET 2 disc.
50 FA178962   SHOCK ABSORBER ASSEMBLY (F5H149 Models) 1 superseded
51 F1931   NUT (.500-20) 2 superseded
52 F1960   WASHER 2 disc.
53 F449889   SHAFT Upper 1 disc.
54 F178344   BUSHING 1 disc.
55 F1822   SCREW (.312-18 x .875) 3 superseded
56 F17558   THRU BOLT PACKAGE 1 disc.
6 F17556   FRAME/FIELD ASSEMBLY (Reference Parts Bulletin 96-11) 1 superseded
7 F17555   ARMATURE 1 disc.
8 F449843   CABLE ASSEMBLY 1 superseded
9 F17508   WASHER Thrust 1 disc.
_ F5H149 TRIM AND TILT ASSEMBLY (3 Cylinder Models) 1 superseded
_ F5H150 TRIM AND TILT ASSEMBLY (4 Cylinder Models) 1 superseded
