| # | Part Number | Description | Qty | Status |
|---|
| 1 |
F694541-2 |

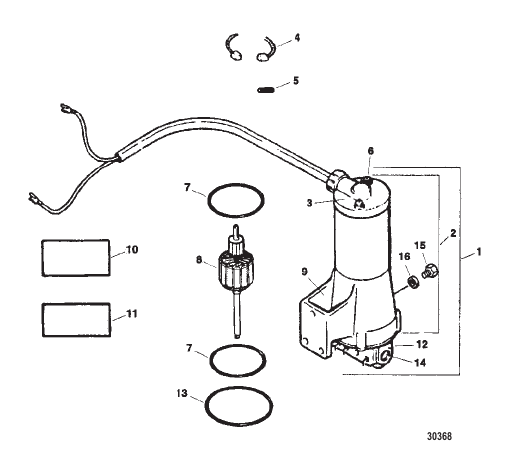

PUMP/MOTOR ASSEMBLY (See NOTE 1)
|
1 |
disc.
|
| 10 |
820547 |
BEARING AND RETAINER KIT
|
1 |
disc.
|
| 11 |
820548 |
SEAL KIT Armature Shaft
|
1 |
disc.
|
| 12 |
820550 |
BODY/CASE ASSEMBLY Valve (See NOTE 1)
|
1 |
disc.
|
| 13 |
2525 |
O-RING (3.125)
|
1 |
disc.
|
| 14 |
F17620 |
VALVE KIT Check
|
1 |
disc.
|
| 15 |
F17518 |
CAP Fill
|
1 |
disc.
|
| 16 |
62702 |
O-RING (.301 x .070)
|
1 |
superseded
|
| 2 |
820545 |
MOTOR/RESERVOIR ASSEMBLY (See NOTE 1)
|
1 |
disc.
|
| 3 |
F17624 |
HEAD ASSEMBLY
|
1 |
superseded
|
| 4 |
8989 |
BRUSH KIT
|
1 |
disc.
|
| 5 |
2529 |
SPRING SET
|
1 |
disc.
|
| 6 |
820549 |
THRU BOLT ASSEMBLY With Seals
|
1 |
disc.
|
| 7 |
8992 |
O-RING
|
2 |
disc.
|
| 8 |
820546 |
ARMATURE
|
1 |
superseded
|
| 9 |
F17625 |
RESERVOIR/BRACKET ASSEMBLY
|
1 |
superseded
|
