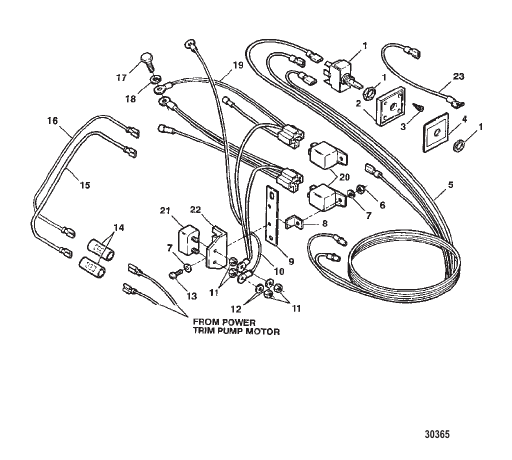

ELECTRICAL COMPONENTS (F5H219/5FH219-1 & F5H271)
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|
| 1 |
F664449 |
SWITCH Trim
|
1 |
disc.
|
| 10 |
F691908 |
WIRE ASSEMBLY
|
1 |
disc.
|
| 11 |
F1513 |
NUT (#10-32)
|
4 |
superseded
|
| 12 |
F1975 |
LOCKWASHER (#10)
|
2 |
superseded
|
| 13 |
F1648 |
SCREW (#10 - 24 x .750)
|
2 |
superseded
|
| 14 |
F662874 |
CONNECTOR Splice
|
2 |
disc.
|
| 15 |
F662636 |
WIRE ASSEMBLY (Green)
|
1 |
disc.
|
| 16 |
F662908 |
WIRE ASSEMBLY (Blue)
|
1 |
disc.
|
| 17 |
F1822 |
SCREW (.312-18 x .875)
|
3 |
superseded
|
| 18 |
F8096 |
LOCKWASHER (.312)
|
4 |
superseded
|
| 19 |
FA663744 |
WIRE KIT
|
1 |
disc.
|
| 2 |
F413420 |
RETAINER Switch Plate
|
1 |
disc.
|
| 20 |
F660917 |
RELAY
|
2 |
superseded
|
| 21 |
F510460 |
BREAKER Circuit
|
1 |
disc.
|
| 22 |
F91446-2 |
BRACKET Circuit Breaker
|
1 |
disc.
|
| 23 |
F664636 |
WIRE ASSEMBLY
|
1 |
superseded
|
| 3 |
F1934 |
SCREW (#6 x .500)
|
4 |
disc.
|
| 4 |
F449181 |
PLATE Trim Switch
|
1 |
disc.
|
| 5 |
F691844 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| 6 |
F7009 |
NUT (#10-24)
|
2 |
disc.
|
| 7 |
F8011 |
WASHER
|
4 |
superseded
|
| 8 |
F660978 |
BRACKET Relay
|
2 |
disc.
|
| 9 |
F685948 |
BRACKET Relay
|
1 |
disc.
|
