| # | Part Number | Description | Qty | Status |
|---|
| 1 |
F5H272 |
SPACER KIT Trailering
|
1 |
disc.
|
| 10 |
819172 |
BRACKET Tilt Cylinder (Starboard)
|
1 |
superseded
|
| 11 |
F740758 |
LINE Hydraulic (Down)
|
1 |
superseded
|
| 12 |
819052 |
FITTING
|
1 |
superseded
|
| 13 |
F749541 |
PUMP/MOTOR ASSEMBLY (With Bayonet Connectors) (See NOTE 1)
|
1 |
superseded
|
| 14 |
F743454 |
BRACKET Pump/Motor Mounting
|
1 |
superseded
|
| 15 |
F8096 |
LOCKWASHER (.312)
|
3 |
superseded
|
| 16 |
90086 |
SCREW (.312-18 x 1.500)
|
3 |
superseded
|
| 17 |
F1999 |
SCREW (.250-20 x .875)
|
2 |
superseded
|
| 18 |
F8083 |
LOCKWASHER (.250)
|
2 |
superseded
|
| 19 |
F691908 |
WIRE ASSEMBLY
|
1 |
disc.
|
| 2 |
F749381 |
CYLINDER ASSEMBLY Trim & Tilt
|
1 |
superseded
|
| 20 |
FA663744 |
WIRE KIT
|
1 |
disc.
|
| 21 |
F1760 |
SCREW (#10-24 x .375)
|
4 |
disc.
|
| 22 |
F660978 |
BRACKET
|
2 |
disc.
|
| 23 |
F660917 |
RELAY
|
2 |
superseded
|
| 24 |
F510460 |
BREAKER Circuit
|
1 |
disc.
|
| 25 |
F8011 |
WASHER
|
2 |
superseded
|
| 26 |
F91446-2 |
BRACKET Circuit Breaker
|
1 |
disc.
|
| 27 |
F1513 |
NUT (#10-32)
|
4 |
superseded
|
| 28 |
F749440 |
PIN Cylinder Clevis (Upper)
|
1 |
disc.
|
| 29 |
F1027 |
PIN (.125 x .500) SS Cotter
|
1 |
superseded
|
| 3 |
819171 |
BRACKET Tilt Cylinder (Port)
|
1 |
superseded
|
| 30 |
F366433-1 |
STOP Tilt
|
1 |
disc.
|
| 31 |
F1915 |
LOCKWASHER (#10)
|
2 |
superseded
|
| 4 |
F1778 |
WASHER
|
4 |
superseded
|
| 5 |
F1984 |
SCREW (.375-16 x 1.750)
|
4 |
disc.
|
| 6 |
F1931 |
NUT (.500-20)
|
2 |
superseded
|
| 7 |
F696476 |
FITTING
|
1 |
superseded
|
| 8 |
F740754 |
LINE Hydraulic (UP)
|
1 |
superseded
|
| 9 |
F742440 |
PIN Lower Cylinder
|
1 |
superseded
|
| _ |
F5H264 |

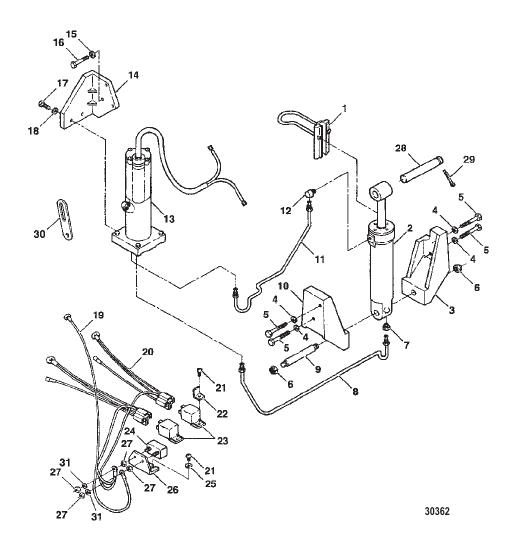

TRIM AND TILT ASSEMBLY
|
1 |
superseded
|
