| # | Part Number | Description | Qty | Status |
|---|
| 1 |
F684541 |
BRACKET KIT Trailering
|
1 |
superseded
|
| 10 |
F654984 |
O-RING
|
1 |
|
| 11 |
F2A654983 |
BAND ASSEMBLY Cylinder
|
1 |
|
| 12 |
F691758 |
LINE Hydraulic (Top Tilt Cylinder)
|
1 |
disc.
|
| 13 |
F660541 |
PUMP/MOTOR ASSEMBLY (No Longer Available - Order 853673A1- See Pump/Motor Assembly (F660541) Section For Parts Breakdown)
|
1 |
superseded
|
| 14 |
F455362 |
BUSHING
|
2 |
disc.
|
| 15 |
F691754 |
LINE Hydraulic (Bottom Tilt Cylinder)
|
1 |
disc.
|
| 16 |
F1877 |
TIE STRAP
|
2 |
superseded
|
| 17 |
F691253 |
LINE Hydraulic (Bottom Trim Cylinder)
|
1 |
disc.
|
| 18 |
F455545 |
HOUSING
|
1 |
disc.
|
| 19 |
F1778 |
WASHER
|
2 |
superseded
|
| 2 |
819100A1 |
CYLINDER ASSEMBLY Tilt (2A629381-1)
|
1 |
superseded
|
| 20 |
F8065 |
LOCKWASHER (.375)
|
2 |
superseded
|
| 21 |
F1984 |
SCREW (.375-16 x 1.750)
|
2 |
disc.
|
| 22 |
F1635 |
SCREW (.375-16 x 3.50)
|
1 |
disc.
|
| 23 |
F455305 |
O-RING
|
2 |
disc.
|
| 24 |
F455010 |
CYLINDER
|
1 |
disc.
|
| 25 |
F455278 |
O-RING
|
1 |
disc.
|
| 26 |
FA455015 |
PISTON ASSEMBLY
|
1 |
disc.
|
| 27 |
F455342 |
O-RING
|
1 |
superseded
|
| 28 |
FA455149 |
COVER ASSEMBLY
|
1 |
disc.
|
| 29 |
F1734 |
SCREW AND LOCKWASHER (.250-20 x .500)
|
2 |
superseded
|
| 3 |
F525629 |
PIN Hitch
|
1 |
disc.
|
| 30 |
F455354 |
BRACKET Thrust
|
1 |
disc.
|
| 31 |
F1980 |
SCREW (.250-20 x 1.250)
|
4 |
disc.
|
| 32 |
F691254 |
LINE Hydraulic (Top Trim Cylinder)
|
1 |
disc.
|
| 33 |
F8096 |
LOCKWASHER (.312)
|
4 |
superseded
|
| 34 |
F1822 |
SCREW (.312-18 x .875)
|
3 |
superseded
|
| 35 |
F50342-1 |
SEAL
|
1 |
superseded
|
| 36 |
F17518 |
CAP Fill
|
1 |
disc.
|
| 37 |
F660273 |
STUD
|
1 |
superseded
|
| 38 |
F1515 |
NUT (.312-18)
|
1 |
superseded
|
| 39 |
F366433 |
STOP Tilt
|
1 |
superseded
|
| 4 |
F1756 |
NUT (.375-16)
|
1 |
disc.
|
| 40 |
F17500 |
SPRING SET Brush (2 Per Set)
|
1 |
superseded
|
| 41 |
F17611 |
BRUSH SET
|
1 |
superseded
|
| 42 |
F1966 |
PLUG Swivel Bracket
|
1 |
disc.
|
| 43 |
F213274 |
FITTING Grease
|
3 |
disc.
|
| 44 |
817868A1 |
BRACKET KIT Swivel (A658072-1)
|
1 |
superseded
|
| 45 |
F191169-1 |
BEARING
|
2 |
disc.
|
| 5 |
F455344 |
BUSHING
|
1 |
disc.
|
| 6 |
F1507 |
SCREW (.375-16 x 2.500)
|
1 |
superseded
|
| 7 |
FA654055 |
HEAD ASSEMBLY (No Longer Available - Order 819100A1)
|
1 |
disc.
|
| 8 |
F654618 |
O-RING
|
1 |
|
| 9 |
FA654015 |
PISTON ASSEMBLY (No Longer Available - Order 819100A1)
|
1 |
disc.
|
| _ |
F5H219 |

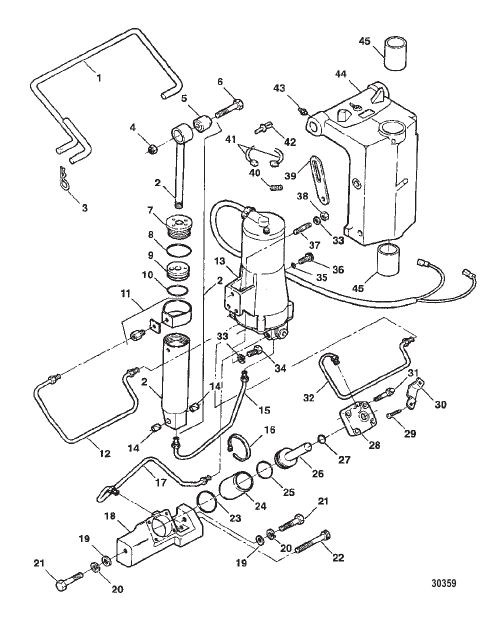

TRIM AND TILT ASSEMBLY (Electrical Components Included) See Electrical Components Section
|
1 |
superseded
|
