Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Inboard and TowSports / Gas / 5.7L (350 CU IN) V8 GM / 5.7L COMPETITION SKI GM 350 V-8 / 1987-1995 [0B514627 THRU 0F775199] - Cat.# 90-17740 / Transmission & Related Parts (In-Line)

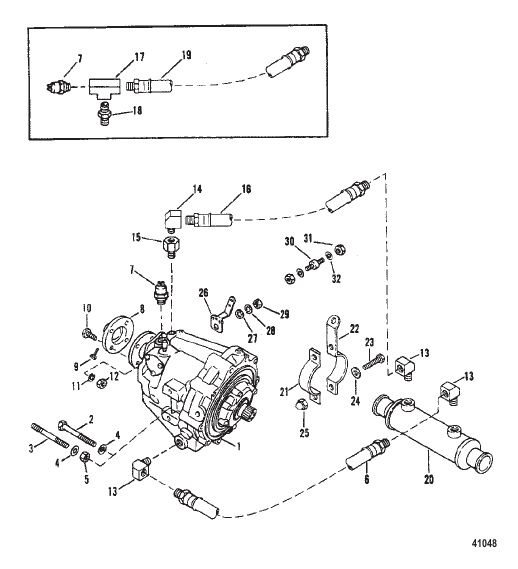

Transmission & Related Parts (In-Line)

Parts (44)

#Part NumberDescriptionQtyStatus
1 47805A7 ТРАНСМИССИЯ В СБОРЕ (Direct Drive)
TRANSMISSION ASSEMBLY (Direct Drive) 		1
1 47806A7 ТРАНСМИССИЯ (1.523:1 Reduction)
TRANSMISSION (1.523:1 Reduction) 		1 disc.
10 68101   ВИНТ (0.375-16 x 1.375) (47805 Transmission)
  SCREW (.375-16 x 1.375) (47805 Transmission) 		4
10 60106   ВИНТ (1.25") (47806 Transmission)
  SCREW (1.25 In) (47806 Transmission) 		4 disc.
11 35048   СТОПОРНАЯ ШАЙБА (0.375) (47805 Transmission)
  LOCKWASHER (.375) (47805 Transmission) 		4
11 32993   СТОПОРНАЯ ШАЙБА (0.437) (47806 Transmission)
  LOCKWASHER (.437) (47806 Transmission) 		4
12 32219   ГАЙКА (.375-16) (47805 Transmission)
  NUT (.375-16) (47805 Transmission) 		4
12 22024   ГАЙКА (0.437-14) (47806 Transmission)
  NUT (.437-14) (47806 Transmission) 		4
13 47629 КОЛЕНЧАТЫЙ 90 градусов
ELBOW 90 Degree 		3
14 47629 КОЛЕНЧАТЫЙ 90 градусов Design I
ELBOW 90 Degree Design I 		1
15 88517 ФИТИНГ Редуктор Design I
FITTING Reducing Design I 		1
16 4751613 РУКАВ (49.00") Design I
HOSE (49.00 Inches) Design I 		1
17 806282 ТРОЙНИК Design II
TEE Design II 		1 disc.
18 806286 СОЕДИНИТЕЛЬ Design II
CONNECTOR Design II 		1 disc.
19 8126997 ШЛАНГ В СБОРЕ (30.00") Design II
HOSE ASSEMBLY (30.00 Inches) Design II 		1
2 60179 ВИНТ (0.437-14 x 3.500) (47805 Tranmission)
SCREW (.437-14 x 3.500) (47805 Tranmission) 		4
2 60179 ВИНТ (0.437-14 x 3.500) (47806 Tranmission)
SCREW (.437-14 x 3.500) (47806 Tranmission) 		6
20 63832A1 ОХЛАДИТЕЛЬ
COOLER 		1
21 56328A1 КРОНШТЕЙН Short
BRACKET Short 		1
22 63820T КРОНШТЕЙН Long
BRACKET Long 		1
23 60300 ВИНТ (0.250-28 x 0.750)
SCREW (.250-28 x .750) 		2
24 25909 ШАЙБА (0.406 x 0.812 x 0.065)
WASHER (.406 x .812 x .065) 		2
25 30506 ГАЙКА (0.250-28)
NUT (.250-28) 		2
26 43325 РЫЧАГ
LEVER 		1
27 20722 ШАЙБА (0.328 x 0.625 x 0.060)
WASHER (.328 x .625 x .060) 		1 disc.
28 26993 СТОПОРНАЯ ШАЙБА (0.312)
LOCKWASHER (.312) 		1 superseded
29 22053 ГАЙКА (0.312-24)
NUT (.312-24) 		1
3 57921 ШПИЛЬКА (0.437-14/0.437-20 x 4.00) (47805 Tranmission)
STUD (.437-14/.437-20 x 4.00) (47805 Tranmission) 		2
30 96112 ШПИЛЬКА (0.250-28 x 2.00)
STUD (.250-28 x 2.00) 		1 superseded
31 20533 ШАЙБА
WASHER 		3
32 20361 ГАЙКА (0.250-28)
NUT (.250-28) 		2 superseded
4 32993 СТОПОРНАЯ ШАЙБА (0.437)
LOCKWASHER (.437) 		6
5 22024 ГАЙКА (0.437-14) (47805 Tranmission)
NUT (.437-14) (47805 Tranmission) 		2
6 4751613 РУКАВ (49.00")
HOSE (49.00 Inches) 		1
7 88031 ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ
SWITCH ASSEMBLY 		1
8 87917A1 ФЛАНЕЦ В СБОРЕ (4.00 x 1.00) (47805 Tranmission) (See Note 10)
FLANGE ASSEMBLY (4.00 x 1.00) (47805 Tranmission) (See Note 10) 		1 disc.
8 79476A1 ФЛАНЕЦ В СБОРЕ (5.00 x 1.00) (47806 Tranmission) (See Note 11)
FLANGE ASSEMBLY (5.00 x 1.00) (47806 Tranmission) (See Note 11) 		OPT. disc.
8 79476A2 ФЛАНЕЦ В СБОРЕ (5.00 x 1.125) (47806 Tranmission) (See Note 11)
FLANGE ASSEMBLY (5.00 x 1.125) (47806 Tranmission) (See Note 11) 		OPT. disc.
8 79476A3 ФЛАНЕЦ В СБОРЕ (5.00 x 1.25) (47806 Tranmission) (See Note 11)
FLANGE ASSEMBLY (5.00 x 1.25) (47806 Tranmission) (See Note 11) 		OPT. disc.
8 79476A4 ФЛАНЕЦ В СБОРЕ (5.00 x 1.375) (47806 Tranmission) (See Note 11)
FLANGE ASSEMBLY (5.00 x 1.375) (47806 Tranmission) (See Note 11) 		OPT.
8 79476A5 ФЛАНЕЦ В СБОРЕ (5.00 x 1.50) (47806 Tranmission) (See Note 11)
FLANGE ASSEMBLY (5.00 x 1.50) (47806 Tranmission) (See Note 11) 		OPT.
9 60168   ВИНТ (47805 Transmission) (See Notes 10 &11)
  SCREW (47805 Transmission) (See Notes 10 &11) 		2 disc.
9 60171   ВИНТ (0.375-16 x 1.250) (47805 Transmission) (See Notes 10 &11)
  SCREW (.375-16 x 1.250) (47805 Transmission) (See Notes 10 &11) 		2
9 60169   ВИНТ (0.375-16 x 0.750) (47805 Transmission) (See Notes 10 &11)
  SCREW (.375-16 x .750) (47805 Transmission) (See Notes 10 &11) 		2
