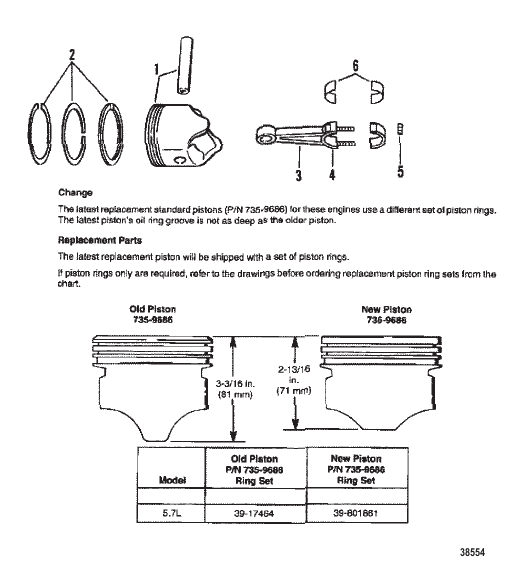

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 808674 |
ПОРШЕНЬ В СБОРЕ (Standard) PISTON ASSEMBLY (Standard) |
8 | superseded |
| 1 | 9687 |
ПОРШЕНЬ В СБОРЕ (.030 O.S.) PISTON ASSEMBLY (.030 O.S.) |
AR | superseded |
| 2 | 17464 |
НАБОР КОЛЕЦ Поршень (стандарт) OLD Piston Design (See Note 7) RING SET Piston (Standard) OLD Piston Design (See Note 7) |
8 | |
| 2 | 801861 |
КОЛЬЦО Поршень NEW Piston Design (See Note 7) RING Piston NEW Piston Design (See Note 7) |
disc. | |
| 2 | 17465 |
КОЛЬЦО Поршень (.030 O.S.) RING Piston (.030 O.S.) |
AR | |
| 3 | 8164 |
ШАТУН CONNECTING ROD |
8 | superseded |
| 4 | 85802 |
ВИНТ (0.375-24 x специальн.) SCREW (.375-24 x Special) |
16 | disc. |
| 5 | 37493 |
ГАЙКА (.375-24) NUT (.375-24) |
16 | |
| 6 | 85701 |
ПОДШИПНИК (PAIR - STANDARD) BEARING (PAIR - STANDARD) |
8 | |
| 6 | 85702 |
ПОДШИПНИК (PAIR - .001 U.S.) BEARING (PAIR - .001 U.S.) |
AR | |
| 6 | 85703 |
ПОДШИПНИК (PAIR - .002 U.S.) BEARING (PAIR - .002 U.S.) |
AR | |
| 6 | 85704 |
ПОДШИПНИК (PAIR - .010 U.S.) BEARING (PAIR - .010 U.S.) |
AR | |
| 6 | 85705 |
ПОДШИПНИК (PAIR - .020 U.S.) BEARING (PAIR - .020 U.S.) |
AR |
