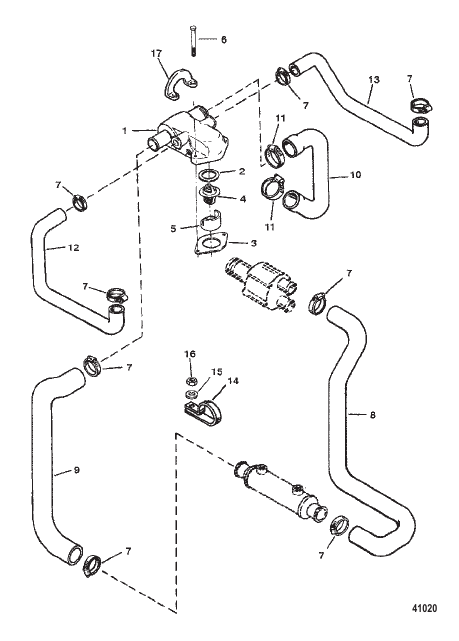

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 807123A2 |
КОРПУС В СБОРЕ Термостат HOUSING ASSEMBLY Thermostat |
1 | superseded |
| 10 | 806825 |
РУКАВ Thermostat Housing to Water Pump HOSE Thermostat Housing to Water Pump |
1 | superseded |
| 11 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) CLAMP Worm Gear (2.50 Diameter) |
2 | |
| 12 | 160211 |
РУКАВ Thermostat Housing PORT HOSE Thermostat Housing PORT |
1 | |
| 13 | 871171 |
РУКАВ Thermostat Housing STARBOARD HOSE Thermostat Housing STARBOARD |
1 | |
| 14 | 47715 |
ЗАЖИМ CLIP |
1 | disc. |
| 15 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) LOCKWASHER (.312-24) |
1 | |
| 16 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
1 | |
| 17 | 12552 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 2 | 806871 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 3 | 530451 |
ПРОКЛАДКА GASKET |
1 | |
| 4 | 8072522 |
ТЕРМОСТАТ 71°C (160°F) THERMOSTAT 71°C (160°F) |
1 | superseded |
| 5 | 806922 |
РУКАВ SLEEVE |
1 | superseded |
| 6 | 98508 |
ВИНТ (0.375-16 x 3.00) SCREW (.375-16 x 3.00) |
2 | superseded |
| 7 | 815504220 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
AR | |
| 8 | 88795 |
РУКАВ Oil Cooler to Sea Pump HOSE Oil Cooler to Sea Pump |
1 | |
| 9 | 806856 |
РУКАВ Oil Cooler to Thermostat Housing HOSE Oil Cooler to Thermostat Housing |
1 |
