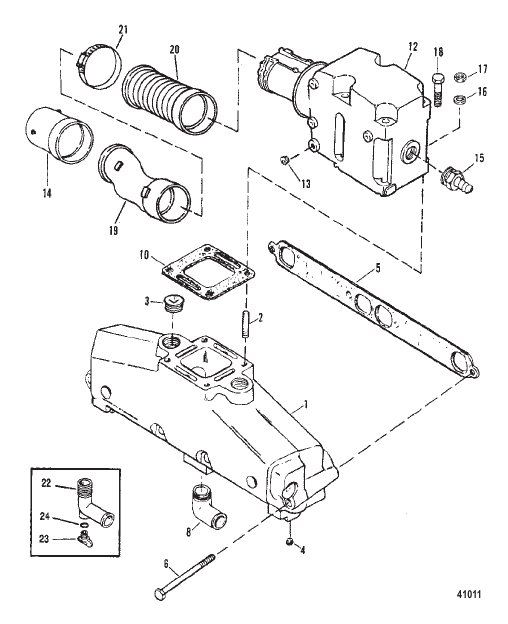

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 87114A19 |
ВПУСКНОЙ КОЛЛЕКТОР Выхлоп MANIFOLD ASSEMBLY Exhaust |
2 | superseded |
| 10 | 41813 |
ПРОКЛАДКА (Standard Cooling) GASKET (Standard Cooling) |
2 | superseded |
| 12 | 98504A3 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Выхлоп (15 Degrees, 3 In. Outside Diameter) ELBOW ASSEMBLY Exhaust (15 Degrees, 3 In. Outside Diameter) |
2 | disc. |
| 12 | 44354A3 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Выхлоп (7 Degrees, 4 In. Outside Diameter) ELBOW ASSEMBLY Exhaust (7 Degrees, 4 In. Outside Diameter) |
2 | superseded |
| 13 | 36382 |
ФИТИНГ (0.250-18 x 0.62), латунь FITTING (.250-18 x .62) Brass |
4 | |
| 14 | 58616A2 |
ТРУБА (Not included with 7 Degree Elbow) TUBE (Not included with 7 Degree Elbow) |
1 | |
| 15 | 45084 |
ФИТИНГ Прямой (STRAIGHT) FITTING Straight (STRAIGHT) |
2 | superseded |
| 16 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) (Not Used with 7 Degree Elbow) LOCKWASHER (.375) (Not Used with 7 Degree Elbow) |
8 | |
| 17 | 49838 |
ГАЙКА (Not Used with 7 Degree Elbow) NUT (Not Used with 7 Degree Elbow) |
8 | |
| 18 | 43749 |
ВИНТ (0.375-16 x 5.750) (Use with 7 Degree Elbow) SCREW (.375-16 x 5.750) (Use with 7 Degree Elbow) |
8 | |
| 19 | 807153T |
ТРУБА Exhaust (Use with 7 Degree Elbow) (Mounted Below Transmission Mount) PIPE Exhaust (Use with 7 Degree Elbow) (Mounted Below Transmission Mount) |
2 | |
| 19 | 42422A2 |
ТРУБА В СБОРЕ Exhaust (Use with 7 Degree Elbow) (Mounted Above Transmission Mount) PIPE ASSEMBLY Exhaust (Use with 7 Degree Elbow) (Mounted Above Transmission Mount) |
2 | |
| 2 | 49545 |
ШПИЛЬКА (3/8 x 1.75) (Not used with 7 Degree Exhaust Elbow) STUD (3/8 x 1.75) (Not used with 7 Degree Exhaust Elbow) |
8 | superseded |
| 20 | 44348T |
ТРУБА (Use with 7 Degree Elbow) TUBE (Use with 7 Degree Elbow) |
2 | superseded |
| 21 | 815504372 |
ЗАЖИМ Червячная передача (Use with 7 Degree Elbow) CLAMP Worm Gear (Use with 7 Degree Elbow) |
8 | |
| 22 | 806926A1 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Слив Plastic ELBOW KIT Drain Plastic |
2 | superseded |
| 23 | 806608A1 |
Комплект пробки (0.500-13), королевский синий Plastic PLUG KIT (.500-13) Royal Blue Plastic |
2 | superseded |
| 24 | 806609 |
СЧЕТВЕРЕННОЕ КОЛЬЦО Plastic QUAD RING Plastic |
2 | superseded |
| 3 | 33198A1 |
ПРОБКА (3/4-14) PLUG (3/4-14) |
AR | superseded |
| 4 | 48118 |
ПРОБКА PLUG |
4 | disc. |
| 5 | 33395 |
ПРОКЛАДКА GASKET |
2 | |
| 6 | 53728 |
ВИНТ (0.375-16 x 4.75) SCREW (.375-16 x 4.75) |
8 | superseded |
| 8 | 36305 |
КОЛЕНЧАТЫЙ (90 градусов) (90 DEGREES) Metal ELBOW (90 Degrees) (90 DEGREES) Metal |
2 | superseded |
| 8 | 45084 |
ФИТИНГ Прямой (STRAIGHT) Metal FITTING Straight (STRAIGHT) Metal |
2 | superseded |
