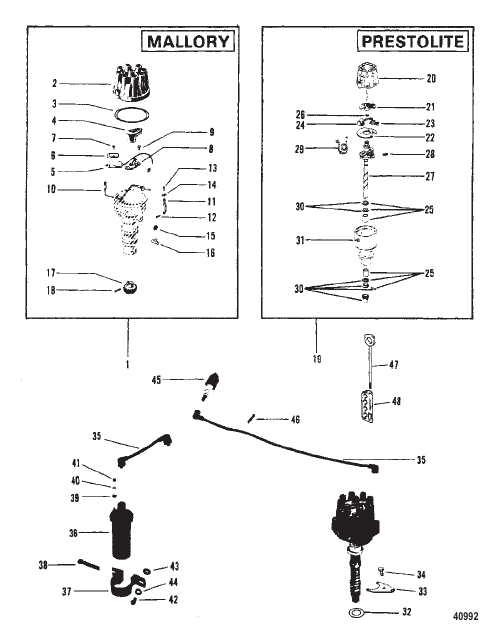

Distributor & Ignition Components (Breaker Point Ignition)
Parts (51)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 17177A1 |
РАСПРЕДЕЛИТЕЛЬ В СБОРЕ (Mallory) DISTRIBUTOR ASSEMBLY (Mallory) |
1 | discontinued |
| 10 | 65773A6 |
ЖИЛА В СБОРЕ (Mallory) LEAD ASSEMBLY (Mallory) |
1 | discontinued |
| 11 | 5085 |
ЗАЖИМ (Mallory) CLAMP (Mallory) |
2 | discontinued |
| 12 | 5084 |
ШТИФТ (Mallory) PIN (Mallory) |
2 | discontinued |
| 13 | 5087 |
ВИНТ (Mallory) SCREW (Mallory) |
2 | discontinued |
| 14 | 5086 |
ШАЙБА (Mallory) WASHER (Mallory) |
2 | discontinued |
| 15 | 5083 |
ВЕНТИЛЯЦИЯ (Mallory) VENT (Mallory) |
2 | discontinued |
| 16 | 5080 |
МАСЛЕНКА (Mallory) OILER (Mallory) |
1 | discontinued |
| 17 | 6390 |
ПЕРЕДАЧА (Mallory) GEAR (Mallory) |
1 | discontinued |
| 18 | 6391 |
ШТИФТ (Mallory) PIN (Mallory) |
1 | discontinued |
| 19 | 816148A1 |
РАСПРЕДЕЛИТЕЛЬ В СБОРЕ (Prestolite) DISTRIBUTOR ASSEMBLY (Prestolite) |
1 | superseded |
| 2 | 5075 |
ПРОБКА (Mallory) CAP (Mallory) |
1 | superseded |
| 20 | 9766 |
ПРОБКА Распределитель (Prestolite) CAP Distributor (Prestolite) |
1 | superseded |
| 21 | 9089 |
РОТОР (Prestolite) ROTOR (Prestolite) |
1 | superseded |
| 22 | 6323 |
ПЛАСТИНА В СБОРЕ (Prestolite) PLATE ASSEMBLY (Prestolite) |
1 | discontinued |
| 23 | 6325 |
ПРЕРЫВАТЕЛЬ В СБОРЕ (Prestolite) BREAKER ASSEMBLY (Prestolite) |
1 | superseded |
| 24 | 6324 |
КОНДЕНСАТОР (Prestolite) CONDENSER (Prestolite) |
1 | superseded |
| 25 | 9085 |
КОМПЛЕКТ ПОДШИПНИКОВ (Prestolite) BEARING KIT (Prestolite) |
1 | discontinued |
| 26 | 810826 |
ФИКСАТОР Кулачок (Prestolite) RETAINER Cam (Prestolite) |
1 | discontinued |
| 27 | 816692 |
ВАЛ И ЭКСЦЕНТРИК В СБОРЕ (Prestolite) SHAFT AND CAM ASSEMBLY (Prestolite) |
1 | discontinued |
| 28 | 9091 |
НАБОР ПРУЖИН (Prestolite) SPRING SET (Prestolite) |
1 | discontinued |
| 29 | 9088 |
ПЕРВИЧНАЯ ЖИЛА (Prestolite) PRIMARY LEAD (Prestolite) |
1 | discontinued |
| 3 | 5076 |
ПРОКЛАДКА (Mallory) GASKET (Mallory) |
1 | |
| 30 | 9087 |
КОМПЛЕКТ ПЕРЕДАЧ И ДЕТАЛЕЙ (Prestolite) GEAR AND PARTS KIT (Prestolite) |
1 | discontinued |
| 31 | 810825 |
КОМПЛЕКТ КРОНШТЕЙНА (Prestolite) BRACKET KIT (Prestolite) |
1 | discontinued |
| 32 | 344863 |
ПРОКЛАДКА GASKET |
1 | |
| 33 | 52185 |
ЗАЖИМ CLAMP |
1 | superseded |
| 34 | 806681 |
ВИНТ (0.375-16 x 0.875) SCREW (.375-16 x .875) |
1 | |
| 35 | 816761A12 |
КОМПЛЕКТ ПРОВОДА СВЕЧИ ЗАЖИГАНИЯ SPARK PLUG WIRE KIT |
1 | superseded |
| 36 | 806529A1 |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
1 | superseded |
| 37 | 77294T |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 38 | 41408 |
ВИНТ (№10-32 x 1.50) SCREW (#10-32 x 1.50) |
1 | |
| 39 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь WASHER (.192 x .375 x .0312) Stainless Steel |
2 | |
| 4 | 9454 |
РОТОР (Mallory) ROTOR (Mallory) |
1 | discontinued |
| 40 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
2 | |
| 41 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
2 | |
| 42 | 824941 |
ВИНТ (0.312-18 x 0.750) SCREW (.312-18 x .750) |
2 | |
| 43 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
2 | |
| 44 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
2 | |
| 45 | 59571 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
8 | superseded |
| 46 | 54676 |
ФИКСАТОР Двухпроводной RETAINER Two Wire |
2 | |
| 46 | 32783 |
ФИКСАТОР Трехпроводной RETAINER Three Wire |
2 | |
| 46 | 32784 |
ФИКСАТОР Четырехпроводной RETAINER Four Wire |
2 | discontinued |
| 47 | 90096A1 |
ШПИЛЬКА В СБОРЕ (№10-32 x специальн.) STUD ASSEMBLY (#10-32 x Special) |
2 | |
| 48 | 72821 |
ФИКСАТОР RETAINER |
2 | |
| 5 | 5092 |
КОНДЕНСАТОР (Mallory) CONDENSER (Mallory) |
1 | superseded |
| 6 | 5093 |
КРОНШТЕЙН (Mallory) BRACKET (Mallory) |
1 | superseded |
| 7 | 5091 |
ВИНТ (Mallory) SCREW (Mallory) |
1 | discontinued |
| 8 | 5090 |
ПРЕРЫВАТЕЛЬ В СБОРЕ (Mallory) BREAKER ASSEMBLY (Mallory) |
1 | superseded |
| 8 | 815280 |
ВЫКЛЮЧАТЕЛЬ (Mallory) BREAKER (Mallory) |
1 | discontinued |
| 9 | 5089 |
ВИНТ (Mallory) SCREW (Mallory) |
1 | discontinued |
