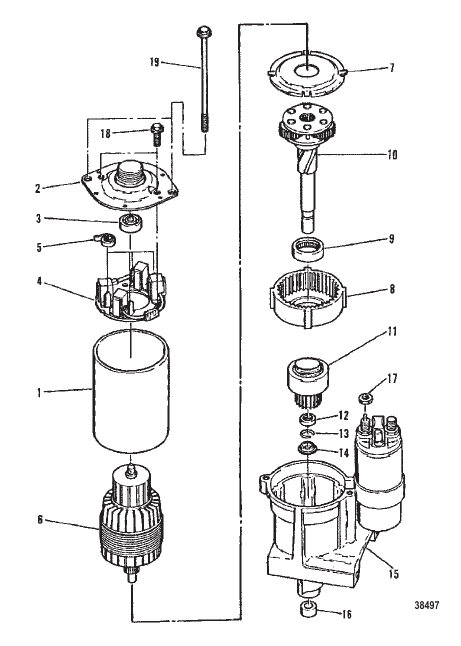

Starter Motor 8 Inch (PG 200) 3.25 Inch Diameter End Cap
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 812604A2 |
СТАРТЕР В СБОРЕ Колпачок диаметром 3-1/4 STARTER MOTOR ASSEMBLY 3-1/4 Diameter End Cap |
1 | superseded |
| 10 | 814472 |
ВАЛ/УЗЕЛ ЗУБЧАТОЙ ПЕРЕДАЧИ В СБОРЕ SHAFT/GEAR ASSEMBLY |
1 | superseded |
| 11 | 811896 |
ПРИВОД DRIVE |
1 | discontinued |
| 12 | 33291 |
ВТУЛКА COLLAR |
1 | discontinued |
| 13 | 33290 |
КОЛЬЦО Стопор RING Retaining |
1 | discontinued |
| 14 | 814474 |
ВТУЛКА COLLAR |
1 | superseded |
| 15 | 814475 |
КОРПУС Привод (Includes starter switch, plunger, return spring & shift lever) HOUSING Drive (Includes starter switch, plunger, return spring & shift lever) |
1 | discontinued |
| 16 | 814476 |
ВТУЛКА BUSHING |
1 | discontinued |
| 17 | N.S.S. |
Не продается отдельно NUT Not Sold Separate NUT |
1 | |
| 18 | 814468 |
ВИНТ SCREW |
2 | discontinued |
| 19 | 814477 |
СКВОЗНОЙ БОЛТ THRU BOLT |
2 | discontinued |
| 2 | 814464 |
РАМА FRAME |
1 | discontinued |
| 3 | 814465 |
ПОДШИПНИК Шарик BEARING Ball |
1 | discontinued |
| 4 | 814466 |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 5 | 814467 |
ПРУЖИНА SPRING |
4 | discontinued |
| 6 | 814469 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 7 | 814470 |
ЭКРАН SHIELD |
1 | superseded |
| 8 | 814471 |
ПЕРЕДАЧА И ПОДШИПНИК GEAR AND BEARING |
1 | discontinued |
| 9 | 814479 |
ПОДШИПНИК Ролик BEARING Roller |
1 | discontinued |
