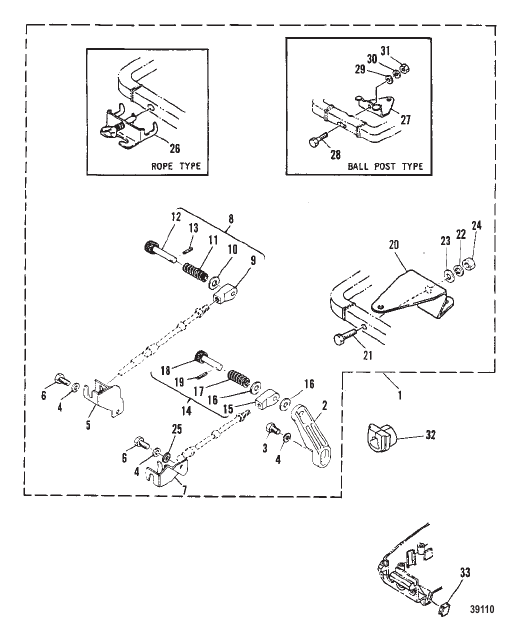

REMOTE CONTROL ATTACHING KIT
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 43992A1 |
КОМПЛЕКТ КРЕПЕЖА Дистанционное управление ATTACHING KIT Remote Control |
1 | discontinued |
| 10 | 82216M |
ШАЙБА WASHER |
1 | discontinued |
| 11 | 83721M |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 83722M |
КРЮК КАБЕЛЬ HOOK CABLE |
1 | superseded |
| 13 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 14 | 83933M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 15 | 83934M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 16 | 82216M |
ШАЙБА WASHER |
2 | discontinued |
| 17 | 83725M |
ПРУЖИНА SPRING |
1 | discontinued |
| 18 | 83726M |
КРЮК КАБЕЛЬ HOOK CABLE |
1 | superseded |
| 19 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 2 | 83716M |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
1 | discontinued |
| 20 | 83698M |
КРЮК МЕХАНИЧЕСКИЙ РУЛЕВОЙ МЕХАНИЗМ HOOK MECHANICAL STEERING |
1 | discontinued |
| 21 | 82474M |
БОЛТ BOLT |
1 | superseded |
| 22 | 82218M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 23 | 82220M |
ШАЙБА WASHER |
1 | discontinued |
| 24 | 81785M |
КОНТРГАЙКА LOCKNUT |
1 | discontinued |
| 25 | 82213M |
ШАЙБА WASHER |
1 | discontinued |
| 26 | 83727M |
КРОНШТЕЙН (ТИП ТРОСА) [M-004991, ML-305579, E-103224, EL-413358] & Up BRACKET (ROPE TYPE) [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 27 | 11670M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ (РОЛИКОВОГО ТИПА) [M-004991, ML-305579, E-103224, EL-413358] & Up BRACKET STEERING (BALL POST TYPE) [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | superseded |
| 28 | 91636M |
БОЛТ [M-004991, ML-305579, E-103224, EL-413358] & Up BOLT [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 29 | 82220M |
ШАЙБА [M-004991, ML-305579, E-103224, EL-413358] & Up WASHER [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 3 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 30 | 82218M |
СТОПОРНАЯ ШАЙБА [M-004991, ML-305579, E-103224, EL-413358] & Up LOCKWASHER [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 31 | 81785M |
КОНТРГАЙКА [M-004991, ML-305579, E-103224, EL-413358] & Up LOCKNUT [M-004991, ML-305579, E-103224, EL-413358] & Up |
1 | discontinued |
| 32 | 94476M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [M-004990, ML-305578, E-103223, EL-413357] & Below GROMMET [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | discontinued |
| 33 | 83728M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 4 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | discontinued |
| 5 | 83718M |
БОЛТ BOLT |
1 | discontinued |
| 6 | 91725M |
БОЛТ BOLT |
2 | superseded |
| 7 | 83932M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 8 | 83719M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 | discontinued |
| 9 | 83720M |
ОКОНЕЧНЫЙ Кабель END Cable |
1 |
