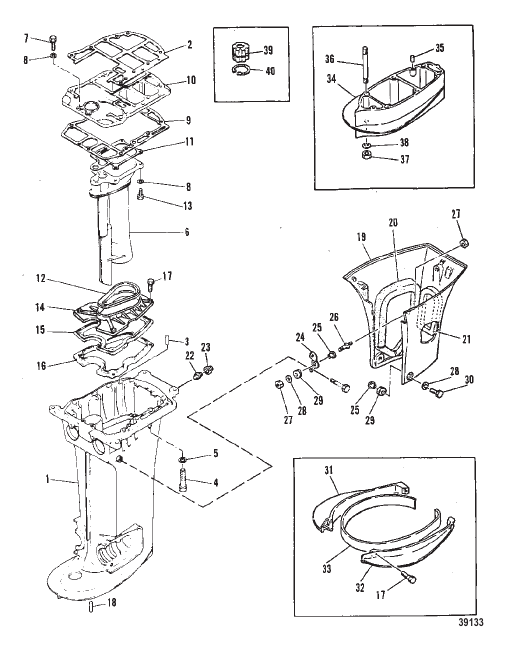

DRIVESHAFT HOUSING
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8569M |
КОРПУС Карданный вал (M и E) HOUSING Driveshaft (M AND E) |
1 | discontinued |
| 1 | 8570M |
КОРПУС Карданный вал (ML, EL и SUL) HOUSING Driveshaft (ML, EL AND SUL) |
1 | discontinued |
| 10 | 97752M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 11 | 83383M |
ПРОКЛАДКА ВЫХЛОПНОЙ КОЛЛЕКТОР GASKET EXHAUST MANIFOLD |
1 | discontinued |
| 12 | 83384M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 13 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | |
| 14 | NA |
NOT AVAILABLE ОПОРНЫЙ КРОНШТЕЙН УПЛОТНЕНИЯ [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up NOT AVAILABLE SEAL SUPPORT BRACKET [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up |
1 | |
| 14 | NA |
NOT AVAILABLE ОПОРНЫЙ КРОНШТЕЙН УПЛОТНЕНИЯ [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below NOT AVAILABLE SEAL SUPPORT BRACKET [M-006405, ML-307518, MUL-600190, E-104173, EL-418727, EUL-620175] & Below |
1 | |
| 15 | 83386M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 16 | 83387M |
ПЛАСТИНА PLATE |
1 | superseded |
| 17 | 82476M |
БОЛТ BOLT |
4 | discontinued |
| 18 | 82364M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 19 | 94517M |
ЩИТОК APRON |
1 | discontinued |
| 2 | 83378M |
ПРОКЛАДКА КОРПУС ВЕДУЩЕГО ВАЛА GASKET DRIVESHAFT HOUSING |
1 | superseded |
| 20 | 94518M |
ДЕМПФЕР DAMPER |
2 | discontinued |
| 21 | 94519M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 22 | 94520M |
СТОП STOP |
1 | discontinued |
| 23 | 83042M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 24 | 94521M |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 25 | 94522M |
ВТУЛКА COLLAR |
4 | discontinued |
| 26 | 94523M |
БОЛТ BOLT |
2 | discontinued |
| 27 | 82389M |
ГАЙКА NUT |
4 | discontinued |
| 28 | 94524M |
ШАЙБА WASHER |
4 | discontinued |
| 29 | 94525M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | discontinued |
| 3 | 83379M |
ШТИФТ ШТИФТ PIN DOWEL |
2 | discontinued |
| 30 | 94526M |
БОЛТ BOLT |
2 | discontinued |
| 31 | 93047M |
ОТРАЖАТЕЛЬНАЯ ПЛАСТИНА ПРАВЫЙ БОРТ (ML И EL) (По заказу) SPLASH PLATE STARBOARD (ML AND EL) (Optional) |
1 | discontinued |
| 32 | 93046M |
ОТРАЖАТЕЛЬНАЯ ПЛАСТИНА ЛЕВЫЙ БОРТ (ML И EL) (По заказу) SPLASH PLATE PORT (ML AND EL) (Optional) |
1 | discontinued |
| 33 | 93048M |
УПЛОТНЕНИЕ (ML и EL) (По заказу) SEAL (ML AND EL) (Optional) |
1 | discontinued |
| 34 | 94527M |
УДЛИНИТЕЛЬ (SUL) (По заказу) EXTENSION (SUL) (Optional) |
1 | discontinued |
| 35 | 82364M |
ШТИФТ Штифт (SUL) (По заказу) PIN Dowel (SUL) (Optional) |
4 | discontinued |
| 36 | 94528M |
ШПИЛЬКА (SUL) (По заказу) STUD (SUL) (Optional) |
6 | discontinued |
| 37 | 82392M |
ГАЙКА (SUL) (По заказу) NUT (SUL) (Optional) |
6 | superseded |
| 38 | 82215M |
СТОПОРНАЯ ШАЙБА (SUL) (По заказу) LOCKWASHER (SUL) (Optional) |
6 | discontinued |
| 39 | 94529M |
ВТУЛКА (SUL) (По заказу) BUSHING (SUL) (Optional) |
1 | discontinued |
| 4 | 97749M |
БОЛТ BOLT |
8 | discontinued |
| 40 | 94530M |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО (SUL) (По заказу) CIRCLIP (SUL) (Optional) |
1 | discontinued |
| 41 | 82476M |
БОЛТ (По заказу) BOLT (Optional) |
1 | discontinued |
| 5 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
8 | discontinued |
| 6 | 97750M |
ТРУБА Выхлоп TUBE Exhaust |
1 | discontinued |
| 7 | 82453M |
БОЛТ BOLT |
3 | superseded |
| 8 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
7 | discontinued |
| 9 | 97751M |
ПРОКЛАДКА ВЕРХНИЙ КОРПУС GASKET UPPER HOUSING |
1 | superseded |
