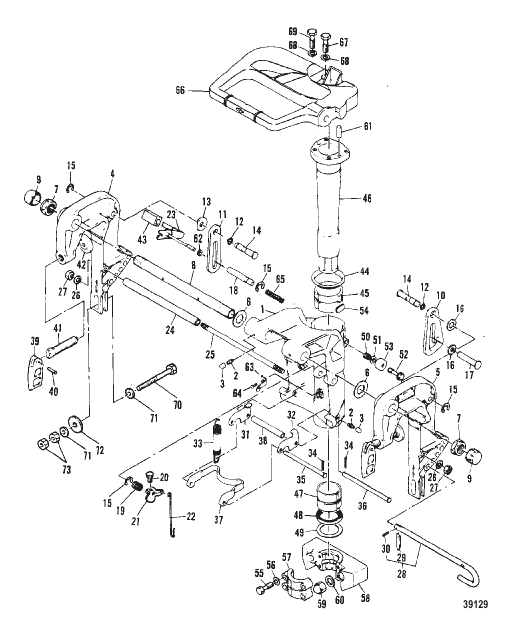

CLAMP AND SWIVEL BRACKET/REVERSE LOCK
Parts (79)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 6996M |
КРОНШТЕЙН ШАРНИР BRACKET SWIVEL |
1 | discontinued |
| 10 | 42439M |
СТОП ОГРАНИЧИТЕЛЬ НАКЛОНА 75 (ЛЕВЫЙ БОРТ) STOP TILT FOR 75 TILT (PORT) |
1 | superseded |
| 10 | 42440M |
СТОП ОГРАНИЧИТЕЛЬ НАКЛОНА 70 (ДОП.)(ЛЕВЫЙ БОРТ) STOP TILT FOR 70 TILT (OPT)(PORT) |
1 | discontinued |
| 11 | 42441M |
СТОП ОГРАНИЧИТЕЛЬ НАКЛОНА 75 (ПРАВЫЙ БОРТ) STOP TILT FOR 75 TILT (STARBOARD) |
1 | discontinued |
| 11 | 42442M |
СТОП ОГРАНИЧИТЕЛЬ НАКЛОНА 70 (ДОП.)(ПРАВЫЙ БОРТ) STOP TILT FOR 70 TILT (OPT)(STARBOARD) |
1 | discontinued |
| 12 | 83457M |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
2 | discontinued |
| 13 | 83458M |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 83460M |
ШТИФТ PIN |
2 | superseded |
| 15 | 83461M |
КОЛЬЦО Защелка RING Snap |
5 | discontinued |
| 16 | 83462M |
ШАЙБА WASHER |
2 | discontinued |
| 17 | 83463M |
ШТИФТ PIN |
1 | superseded |
| 17 | 83463M |
ШТИФТ PIN |
1 | superseded |
| 18 | 83464M |
ВАЛ SHAFT |
1 | discontinued |
| 19 | 83465M |
ПРУЖИНА SPRING |
1 | discontinued |
| 2 | 82369M |
ФИТИНГ СМАЗКА FITTING GREASE |
4 | |
| 20 | 82444M |
БОЛТ BOLT |
1 | superseded |
| 21 | 83467M |
РЫЧАГ НАКЛОН LEVER TILT |
1 | discontinued |
| 22 | 83468M |
ШТОК ЗАМОК ROD LOCK |
1 | discontinued |
| 23 | 14260M |
РЫЧАГ В СБОРЕ Наклон [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up LEVER ASSEMBLY Tilt [M-006406, ML-307519, MUL-600191, E-104174, EL-418728, EUL-620176] & Up |
1 | discontinued |
| 23 | 83907M |
ВАЛ [M-004991, ML-305579, E-103224, EL-413358] THRU [M-006405, ML-307518, E-104173, EL-418727] SHAFT [M-004991, ML-305579, E-103224, EL-413358] THRU [M-006405, ML-307518, E-104173, EL-418727] |
1 | discontinued |
| 23 | 83469M |
РЫЧАГ В СБОРЕ Наклон [M-004990, ML-305578, E-103223, EL-413357] & Below LEVER ASSEMBLY Tilt [M-004990, ML-305578, E-103223, EL-413357] & Below |
1 | superseded |
| 24 | 83471M |
ПРОСТАВКА SPACER |
1 | superseded |
| 25 | 83472M |
ШПИЛЬКА STUD |
1 | discontinued |
| 26 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 27 | 82392M |
ГАЙКА NUT |
2 | superseded |
| 28 | 83904M |
ПАЛЕЦ В СБОРЕ Наклон PIN ASSEMBLY Tilt |
1 | superseded |
| 29 | 84044M |
СТОПОР ШТИФТ ЗАПИРАНИЯ НАКЛОНА STOPPER TILT LOCK |
1 | discontinued |
| 3 | 81439M |
ПРОБКА МАСЛЕНКА CAP GREASE FITTING |
4 | discontinued |
| 30 | 82145M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 31 | 83905M |
КРОНШТЕЙН ШТИФТ ЗАПИРАНИЯ НАКЛОНА BRACKET TILT LOCK |
1 | discontinued |
| 32 | 83906M |
КРОНШТЕЙН ШТИФТ ЗАПИРАНИЯ НАКЛОНА BRACKET TILT LOCK |
1 | discontinued |
| 33 | 83476M |
ПРУЖИНА SPRING |
2 | discontinued |
| 34 | 82128M |
ШТИФТ ШПЛИНТ PIN COTTER |
4 | discontinued |
| 35 | 83477M |
ШТИФТ PIN |
1 | discontinued |
| 36 | 83478M |
ШТИФТ PIN |
1 | discontinued |
| 37 | 83479M |
ШТИФТ ЗАПИРАНИЯ НАКЛОНА TILT LOCK |
1 | discontinued |
| 38 | 83480M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 39 | 11868M |
РУКОЯТКА ФИКСАТОР ТРАНЦА [M-004991, ML-305579, E-103224, EL-413358] & Up HANDLE TRANSOM CLAMP [M-004991, ML-305579, E-103224, EL-413358] & Up |
2 | discontinued |
| 39 | 81382M |
РУКОЯТКА ФИКСАТОР ТРАНЦА [M-004990, ML-305578, E-103223, EL-413357] & Below HANDLE TRANSOM CLAMP [M-004990, ML-305578, E-103223, EL-413357] & Below |
2 | superseded |
| 4 | 8929M |
КРОНШТЕЙН ФИКСАТОРА Правый борт ФИКСАТОР (ПРАВЫЙ БОРТ) CLAMP BRACKET Starboard CLAMP (STARBOARD) |
1 | superseded |
| 40 | 81889M |
ШТИФТ PIN |
2 | discontinued |
| 41 | 83481M |
ВИНТ ФИКСАТОР ТРАНЦА SCREW TRANSOM CLAMP |
2 | discontinued |
| 42 | 80638M |
НАКЛАДКА ФИКСАТОР ТРАНЦА PAD TRANSOM CLAMP |
2 | discontinued |
| 43 | 81395M |
КРЫШКА COVER |
1 | discontinued |
| 44 | 83482M |
ШАЙБА WASHER |
1 | discontinued |
| 45 | 83483M |
ВТУЛКА BUSHING |
1 | discontinued |
| 46 | 83907M |
ВАЛ SHAFT |
1 | discontinued |
| 47 | 83485M |
ВТУЛКА BUSHING |
1 | discontinued |
| 48 | 83486M |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 49 | 83487M |
ШАЙБА WASHER |
1 | discontinued |
| 5 | 8928M |
КРОНШТЕЙН ФИКСАТОР (ЛЕВЫЙ БОРТ) BRACKET CLAMP (PORT) |
1 | superseded |
| 50 | 83488M |
ПРУЖИНА SPRING |
1 | discontinued |
| 51 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 52 | 82464M |
БОЛТ BOLT |
1 | superseded |
| 53 | 83490M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 54 | 80633M |
ПЛАСТИНА ТРЕНИЕ PLATE FRICTION |
1 | discontinued |
| 55 | 82468M |
БОЛТ BOLT |
4 | superseded |
| 56 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 57 | 83491M |
КОРПУС НИЖНЯЯ ОПОРА, РЕЗИНОВАЯ HOUSING LOWER MOUNT RUBBER |
1 | discontinued |
| 58 | 83492M |
КОРПУС НИЖНЯЯ ОПОРА, РЕЗИНОВАЯ HOUSING LOWER MOUNT RUBBER |
1 | superseded |
| 59 | 82397M |
ГАЙКА ГОЛОВКА NUT CROWN |
2 | discontinued |
| 6 | 81836M |
ШАЙБА WASHER |
2 | discontinued |
| 60 | 84429M |
ШАЙБА WASHER |
2 | discontinued |
| 61 | 82368M |
ШТИФТ ШТИФТ PIN DOWEL |
2 | discontinued |
| 62 | 83493M |
ШАЙБА WASHER |
1 | discontinued |
| 63 | 83494M |
ПРУЖИНА SPRING |
1 | discontinued |
| 64 | 83495M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 65 | 83909M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
1 | discontinued |
| 66 | 83513M |
КРОНШТЕЙН РУЛЕВОЙ МЕХАНИЗМ BRACKET STEERING |
1 | superseded |
| 67 | 82465M |
БОЛТ BOLT |
2 | superseded |
| 68 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 69 | 82466M |
БОЛТ BOLT |
2 | superseded |
| 7 | 81787M |
ГАЙКА НЕЙЛОН NUT NYLON |
2 | superseded |
| 70 | 84970M |
БОЛТ BOLT |
4 | discontinued |
| 71 | 82220M |
ШАЙБА WASHER |
8 | discontinued |
| 72 | 81812M |
ШАЙБА WASHER |
4 | discontinued |
| 73 | 82395M |
ГАЙКА NUT |
8 | discontinued |
| 8 | 41312M |
БОЛТ КРОНШТЕЙН ФИКСАТОРА BOLT CLAMP BRACKET |
1 | discontinued |
| 9 | 81388M |
ПРОБКА CAP |
2 | superseded |
